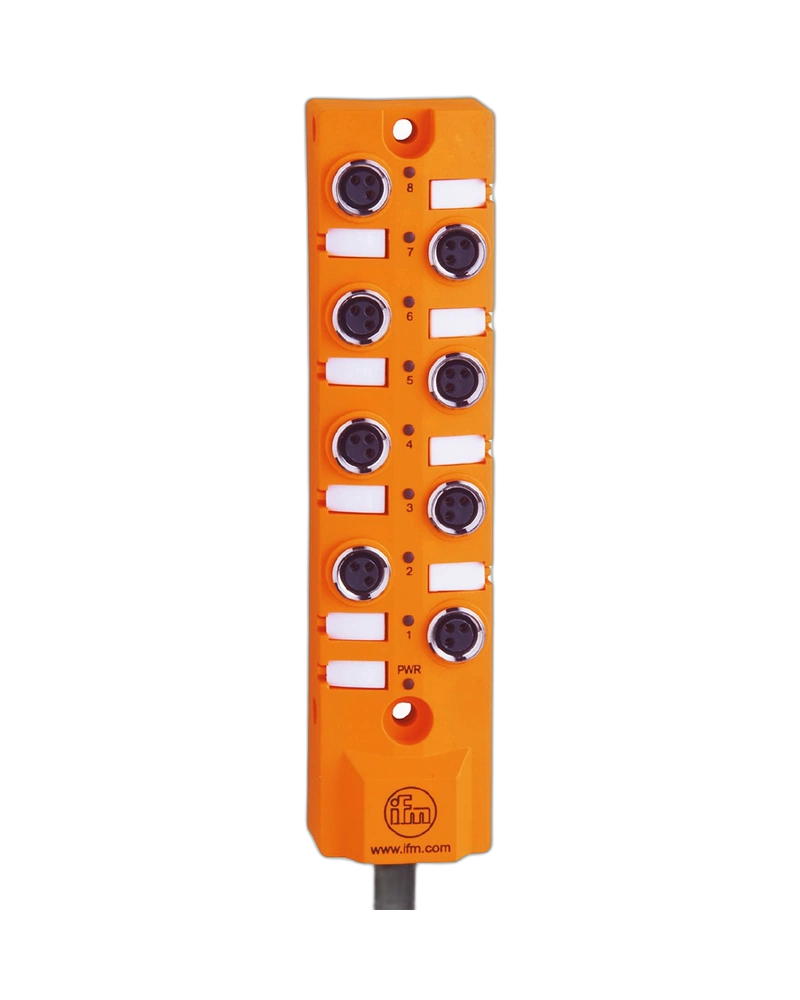

The IFM EBC066 is an eight-port NPN splitter box designed for reliable connection of multiple sensors and actuators. It provides eight M8 ports with a 5 m PUR cable and supports 10...30 V DC operation. The compact PBT-GF20 housing offers IP65, IP67 and IP68 protection. Its multiple LED indicators, gold-plated contacts and drag-chain suitability make it suitable for industrial automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC066 provides eight M8 connection ports for centralized sensor and actuator wiring. Its higher connection capacity allows several field devices to be managed through one compact wiring block. This helps reduce cable clutter and simplifies machine wiring. The design is suitable for automation systems requiring multiple connection points.
The splitter box uses NPN electrical design and supports a 10...30 V DC operating voltage. It provides reliable signal distribution for compatible sensors and actuators. Gold-plated contacts support dependable electrical transmission and help maintain connection quality. The standardized M8 interfaces simplify field-device installation.
The EBC066 is equipped with a 5 m PUR cable for flexible connection to control equipment. Its cable construction is suitable for industrial applications and dynamic machine environments. The product is designed for drag-chain use when installation requirements are followed. Maintaining the recommended bending radius helps minimize mechanical stress.
The EBC066 includes 16 yellow LEDs for switching-status indication and one green LED for operating status. This provides clear visual feedback for each connected circuit. The PBT-GF20 housing and nickel-plated brass components offer durable construction. IP65, IP67 and IP68 protection helps provide dependable environmental protection.
8 M8 ports
NPN electrical design
10...30 V DC operation
5 m PUR cable
16 yellow LEDs
1 green LED
PBT-GF20 housing
Gold-plated contacts
IP65/IP67/IP68 protection
Drag-chain suitable
Compact construction
Oil and coolant resistant
Industrial automation
Factory machinery
Machine tools
CNC equipment
Production lines
Sensor and actuator networks
Assembly systems
Moving machinery
| Specification | Details |
|---|---|
| Product Code | EBC066 |
| Model | ZDO8F04HMSJ0005H10 |
| Product Type | Splitter Box |
| Electrical Design | NPN |
| Number of Ports | 8 |
| Connector Type | M8 |
| Connector Coding | A-coded |
| Operating Voltage | 10...30 V DC |
| Maximum Current per Port | 2 A |
| Maximum Total Current | 6 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 |
| Dimensions | 129.5 × 30 × 20 mm |
| Weight | Approx. 693 g |
| Housing Material | PBT-GF20 |
| Connector Material | Brass, nickel-plated |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Diameter | Approx. 8.5 mm |
| Cable Cores | 16 × 0.34 mm² + 2 × 0.75 mm² |
| Cable Colour | Black |
| Contacts | Gold-plated |
| Mounting | Backplane mounting |
| Ambient Temperature | -20...80 °C |
| Moving Temperature | -5...60 °C |
| Switching Status | 16 × yellow LED |
| Power Status | 1 × green LED |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Drag-Chain Suitability | Yes |
| Accessories | DIN rail adapter E73007, M8 protective cap E73005 |
| Pack Quantity | 1 piece |
