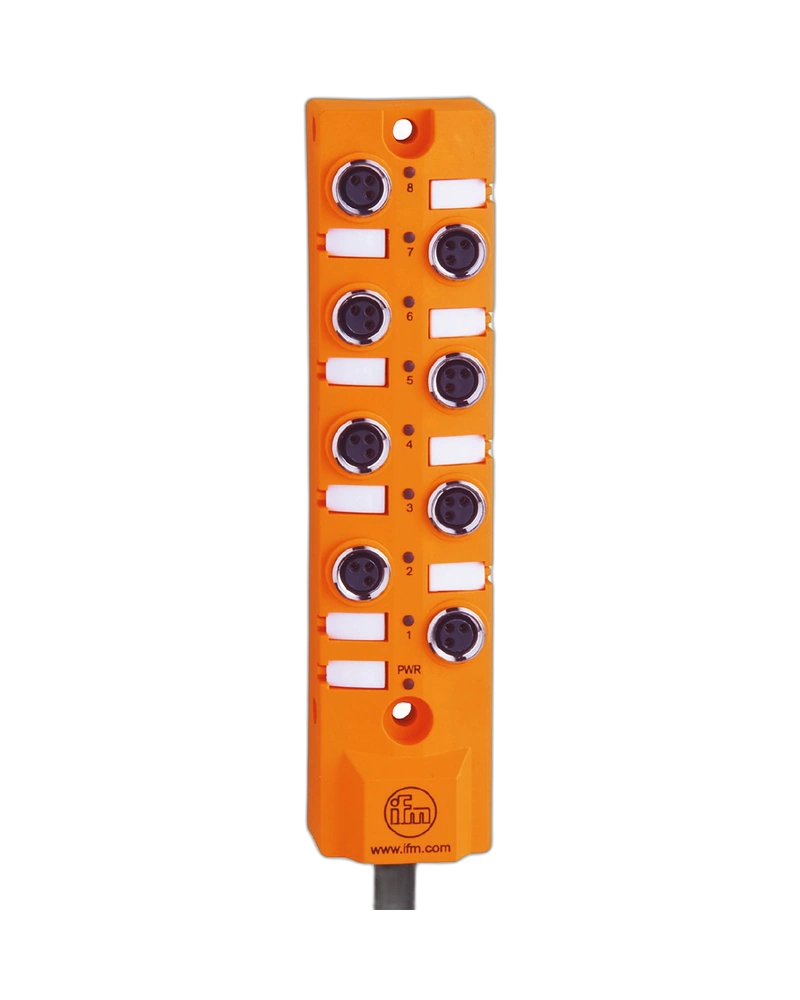

The IFM EBC065 is an eight-port NPN splitter box designed for centralized sensor and actuator connections. It includes eight M8 ports and a 10 m PUR cable for extended installation flexibility. The durable PBT-GF20 housing provides IP65, IP67 and IP68 protection. Gold-plated contacts, LED indication and drag-chain suitability make it suitable for demanding industrial automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC065 provides eight M8 ports for connecting multiple sensors and actuators through one centralized connection system. This helps reduce individual cable routing and creates a cleaner machine wiring arrangement. The higher number of ports makes it suitable for machines with multiple sensing points. Its compact construction supports installation in restricted spaces.
The splitter box uses NPN electrical technology and operates at 10...30 V DC. It is designed to provide dependable signal distribution for compatible industrial automation devices. Gold-plated contacts support stable electrical connections and long-term signal reliability. Standard M8 connectors simplify integration with compatible components.
The integrated 10 m PUR cable provides flexibility when the wiring block is positioned farther from the main controller. PUR construction provides suitable mechanical performance for industrial installations. The cable can be used in dynamic applications and drag chains under the specified conditions. Correct cable routing and bending radius help improve service life.
The PBT-GF20 housing and nickel-plated brass components provide robust construction. IP65, IP67 and IP68 protection helps protect the unit from dust and moisture. Eight yellow LEDs provide switching-status indication and a green LED indicates operation. These indicators simplify commissioning and maintenance.
8 M8 ports
NPN electrical design
10...30 V DC operation
10 m PUR cable
2 A per port
6 A total current
IP65/IP67/IP68 protection
PBT-GF20 housing
Gold-plated contacts
8 yellow switching LEDs
1 green power LED
Drag-chain suitable
Halogen-free cable
Industrial automation
Factory automation
Machine tools
CNC equipment
Production lines
Sensor networks
Actuator systems
Moving machinery
| Specification | Details |
|---|---|
| Product Code | EBC065 |
| Model | ZDO8F039MSJ0010H10 |
| Product Type | Splitter Box |
| Electrical Design | NPN |
| Number of Ports | 8 |
| Connector Type | M8 |
| Connector Coding | A-coded |
| Operating Voltage | 10...30 V DC |
| Maximum Current per Port | 2 A |
| Maximum Total Current | 6 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 |
| Dimensions | 129.5 × 30 × 20 mm |
| Weight | Approx. 906 g |
| Housing Material | PBT-GF20 |
| Connector Material | Brass, nickel-plated |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Diameter | Approx. 9.1 mm |
| Cable Cores | 8 × 0.34 mm² + 2 × 0.75 mm² |
| Cable Colour | Black |
| Cable Construction | Halogen-free |
| Contacts | Gold-plated |
| Mounting | Backplane mounting |
| Ambient Temperature | -25...80 °C |
| Moving Temperature | -5...60 °C |
| Switching Status | 8 × yellow LED |
| Power Status | 1 × green LED |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Drag-Chain Suitability | Yes |
| Accessories | DIN rail adapter E73007, M8 protective cap E73005 |
| Pack Quantity | 1 piece |
