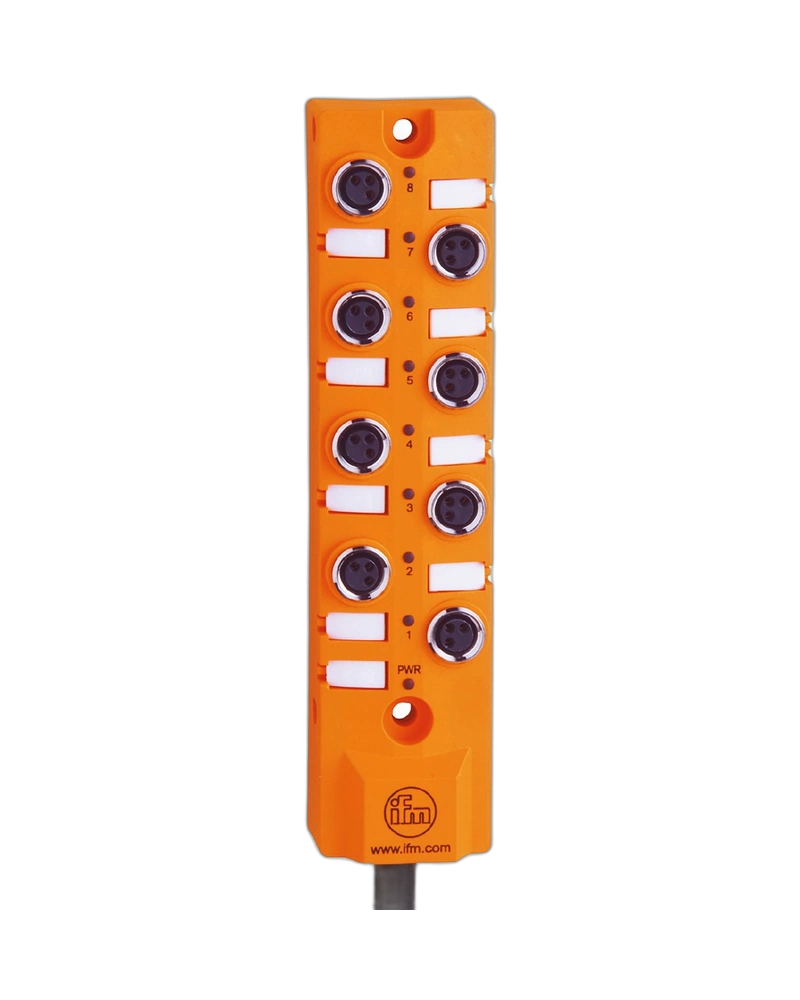

The IFM EBC064 is an eight-port NPN splitter box designed for centralized connection of multiple sensors and actuators. It features eight M8 ports and a 5 m PUR cable for flexible industrial installation. The robust PBT-GF20 housing provides IP65, IP67 and IP68 protection. LED status indication, gold-plated contacts and drag-chain suitability support reliable automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC064 provides eight M8 ports, allowing multiple field devices to be connected through a single centralized wiring block. This helps simplify machine wiring and reduces cable clutter. The eight-port design is useful for automation systems with a larger number of sensors. Its compact housing supports installation in restricted machine spaces.
The NPN electrical design supports compatible industrial sensor and actuator circuits operating from 10...30 V DC. The splitter box provides a convenient connection point between field devices and automation equipment. Gold-plated contacts help ensure reliable electrical transmission. The standardized M8 connectors make installation straightforward.
A 5 m PUR cable provides flexible connection to the main control system. The cable is designed for industrial environments and can be used in dynamic applications under specified conditions. Drag-chain suitability supports moving-machine installations. The recommended bending radius should be maintained during installation.
The EBC064 is constructed using PBT-GF20 and nickel-plated brass components. IP65, IP67 and IP68 protection provides reliable resistance against environmental exposure. Eight yellow LEDs display switching status and a green LED shows operation. These indicators help technicians monitor the system during installation and servicing.
8 M8 ports
NPN electrical design
10...30 V DC operation
5 m PUR cable
2 A current per port
6 A total current
IP65/IP67/IP68 protection
PBT-GF20 housing
Gold-plated contacts
8 yellow LEDs
1 green LED
Drag-chain suitable
Compact eight-port design
Industrial automation
Factory automation
Machine tools
CNC machinery
Production lines
Sensor and actuator wiring
Assembly systems
Moving machinery
| Specification | Details |
|---|---|
| Product Code | EBC064 |
| Model | ZDO8F039MSJ0005H10 |
| Product Type | Splitter Box |
| Electrical Design | NPN |
| Number of Ports | 8 |
| Connector Type | M8 |
| Connector Coding | A-coded |
| Operating Voltage | 10...30 V DC |
| Maximum Current per Port | 2 A |
| Maximum Total Current | 6 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 |
| Dimensions | 129.5 × 30 × 20 mm |
| Weight | Approx. 516 g |
| Housing Material | PBT-GF20 |
| Connector Material | Brass, nickel-plated |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Diameter | Approx. 9.1 mm |
| Cable Cores | 8 × 0.34 mm² + 2 × 0.75 mm² |
| Cable Colour | Black |
| Cable Construction | Halogen-free |
| Contacts | Gold-plated |
| Mounting | Backplane mounting |
| Ambient Temperature | -25...80 °C |
| Moving Temperature | -5...60 °C |
| Switching Status | 8 × yellow LED |
| Power Status | 1 × green LED |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Drag-Chain Suitability | Yes |
| Accessories | DIN rail adapter E73007, M8 protective cap E73005 |
| Pack Quantity | 1 piece |
