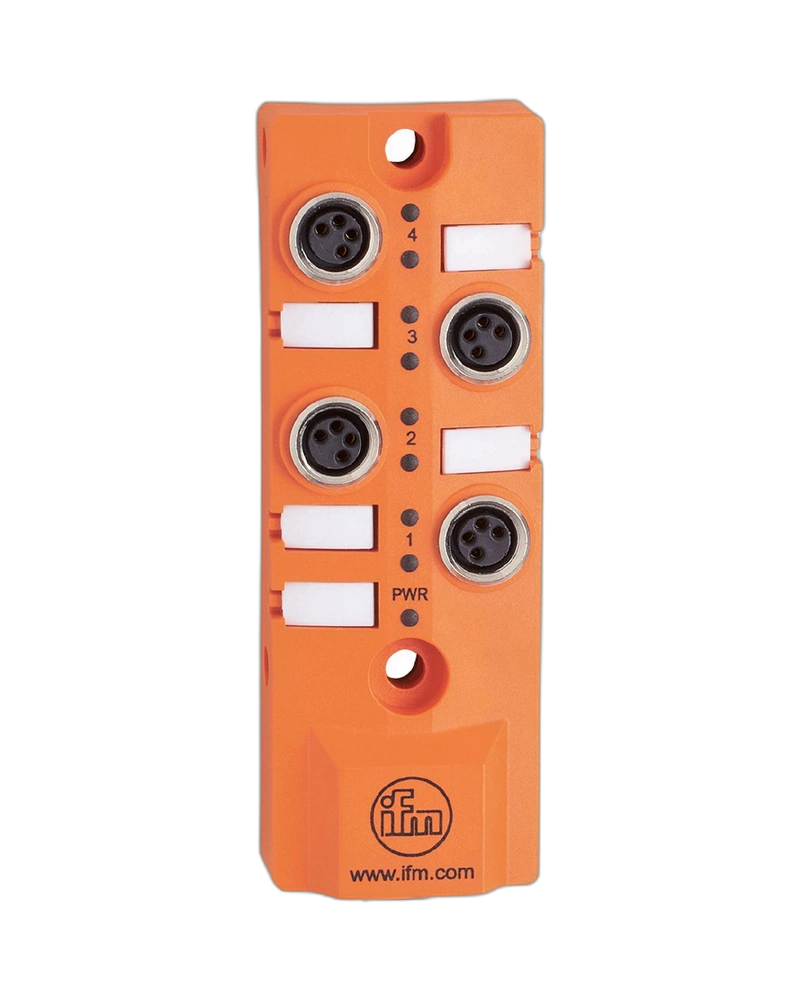

The IFM EBC062 is a four-port NPN splitter box designed for reliable sensor and actuator connectivity in industrial automation systems. It features four M8 ports and a 10 m PUR cable for extended installation flexibility. The compact housing provides IP65, IP67 and IP68 protection for demanding industrial environments. LED indicators and gold-plated contacts support easy monitoring and dependable electrical performance.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC062 provides four M8 ports for centralized connection of compatible sensors and actuators. The arrangement helps simplify field wiring and reduces unnecessary individual cable routing. Its compact housing allows convenient installation in machines with limited space. Centralized connectivity also makes maintenance and troubleshooting more efficient.
The EBC062 uses an NPN electrical design and operates with 10...30 V DC supply voltage. It provides reliable signal distribution for compatible industrial automation devices. Gold-plated contacts help maintain stable electrical performance during continuous operation. The A-coded M8 connectors provide standardized field connectivity.
The 10 m PUR cable provides additional flexibility for larger machinery and production systems. Its industrial cable construction supports reliable operation in demanding environments. The cable is suitable for moving applications when the recommended bending radius and operating conditions are followed. Drag-chain compatibility further expands its application range.
Eight yellow LEDs provide individual switching-status indication, while a green LED indicates operating status. This visual feedback allows technicians to check the connection system without additional diagnostic equipment. It can simplify commissioning and help identify wiring or device-related issues. The clear indication is particularly useful during machine maintenance.
4 M8 ports
NPN electrical design
10...30 V DC operation
10 m PUR cable
Gold-plated contacts
PBT-GF20 housing
IP65/IP67/IP68 protection
8 yellow LEDs
1 green LED
Drag-chain suitable
Compact housing
Oil and coolant resistant
Factory automation
Industrial machinery
Machine tools
CNC equipment
Sensor and actuator systems
Production lines
Assembly equipment
Moving machine applications
| Specification | Details |
|---|---|
| Product Code | EBC062 |
| Model | ZDO4F049MSJ0010H10 |
| Product Type | Splitter Box |
| Electrical Design | NPN |
| Number of Ports | 4 |
| Connector Type | M8 |
| Connector Coding | A-coded |
| Operating Voltage | 10...30 V DC |
| Maximum Current per Port | 2 A |
| Maximum Total Current | 6 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 |
| Dimensions | 85.5 × 30 × 20 mm |
| Weight | Approx. 841 g |
| Housing Material | PBT-GF20 |
| Connector Material | Brass, nickel-plated |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Diameter | Approx. 7.4 mm |
| Cable Cores | 8 × 0.34 mm² + 2 × 0.75 mm² |
| Cable Colour | Black |
| Contacts | Gold-plated |
| Mounting | Backplane mounting |
| Ambient Temperature | -20...80 °C |
| Moving Temperature | -5...60 °C |
| Switching Status | 8 × yellow LED |
| Power Status | 1 × green LED |
| Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Drag-Chain Suitability | Yes |
| Accessories | DIN rail adapter E73006, M8 protective cap E73005 |
| Pack Quantity | 1 piece |
