The IFM EBC059 is a compact four-port NPN splitter box designed for reliable sensor and actuator connections in industrial automation. It provides four M8 ports with a 10 m PUR cable for extended installation flexibility. The robust PBT-GF20 housing offers IP65, IP67 and IP68 protection. LED status indication, gold-plated contacts and drag-chain suitability support dependable industrial operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC059 provides four M8 connection ports for centralized connection of compatible industrial sensors and actuators. Its compact housing is designed for installations where available space is restricted. Centralized field wiring helps reduce cable-routing complexity and improves machine organization. The product is suitable for automation equipment and production machinery.
The EBC059 uses NPN electrical technology and operates from 10...30 V DC. It provides a practical connection solution for compatible NPN sensor and actuator systems. A-coded M8 connectors provide standardized industrial connectivity. Gold-plated contacts help ensure reliable signal transmission and stable electrical performance.
The 10 m PUR cable provides extended installation flexibility for machines and production systems. The cable is halogen-free and designed for industrial applications. Its flexible construction supports moving installations and drag-chain use when the specified operating conditions are maintained. Correct cable routing and bending radius help extend service life.

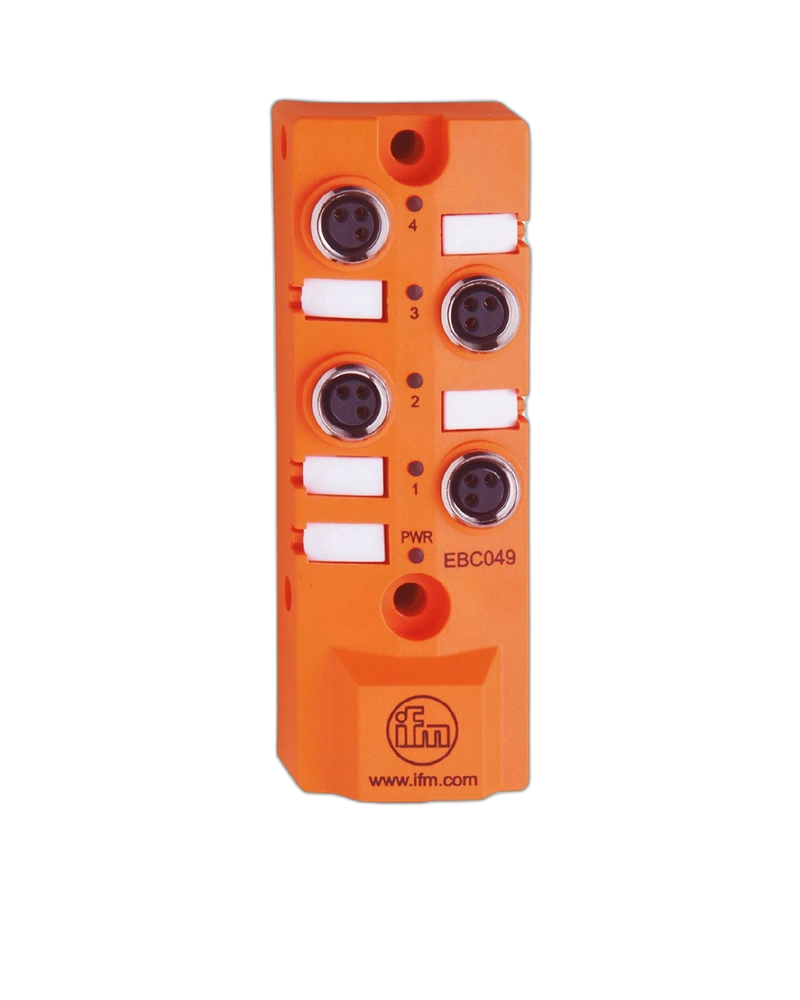

The splitter box uses a PBT-GF20 housing with nickel-plated brass components for mechanical durability. IP65, IP67 and IP68 protection helps protect the unit in demanding industrial environments. Four yellow LEDs provide switching-status information and one green LED indicates operation. This helps technicians monitor the system and identify connection conditions quickly.
4 M8 ports
NPN electrical design
10...30 V DC operating voltage
10 m PUR cable
2 A maximum current per port
6 A maximum total current
IP65/IP67/IP68 protection
PBT-GF20 housing
Gold-plated contacts
4 yellow switching LEDs
1 green operation LED
Drag-chain suitable
Halogen-free cable
Oil and coolant resistant
Industrial automation
Factory automation
Machine tools
CNC machinery
Sensor and actuator systems
Production lines
Assembly equipment
Moving machine applications
| Specification | Details |
|---|---|
| Product Code | EBC059 |
| Model | ZDO4F035MSJ0010H10 |
| Product Type | Splitter Box |
| Electrical Design | NPN |
| Number of Ports | 4 |
| Connector Type | M8 |
| Connector Coding | A-coded |
| Operating Voltage | 10...30 V DC |
| Maximum Current per Port | 2 A |
| Maximum Total Current | 6 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 |
| Housing Material | PBT-GF20 |
| Connector Material | Brass, nickel-plated |
| Weight | Approx. 648.5 g |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Diameter | Approx. 6.4 mm |
| Cable Cores | 4 × 0.34 mm² + 2 × 0.75 mm² |
| Cable Colour | Black |
| Cable Construction | Halogen-free |
| Contacts | Gold-plated |
| Mounting | Backplane mounting |
| Ambient Temperature | -25...80 °C |
| Moving Temperature | -5...60 °C |
| Flexible Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Drag-Chain Suitability | Yes |
| Switching Status | 4 × yellow LED |
| Operation Status | 1 × green LED |
| Accessories | DIN rail adapter E73006, M8 protective cap E73005 |
| Pack Quantity | 1 piece |
