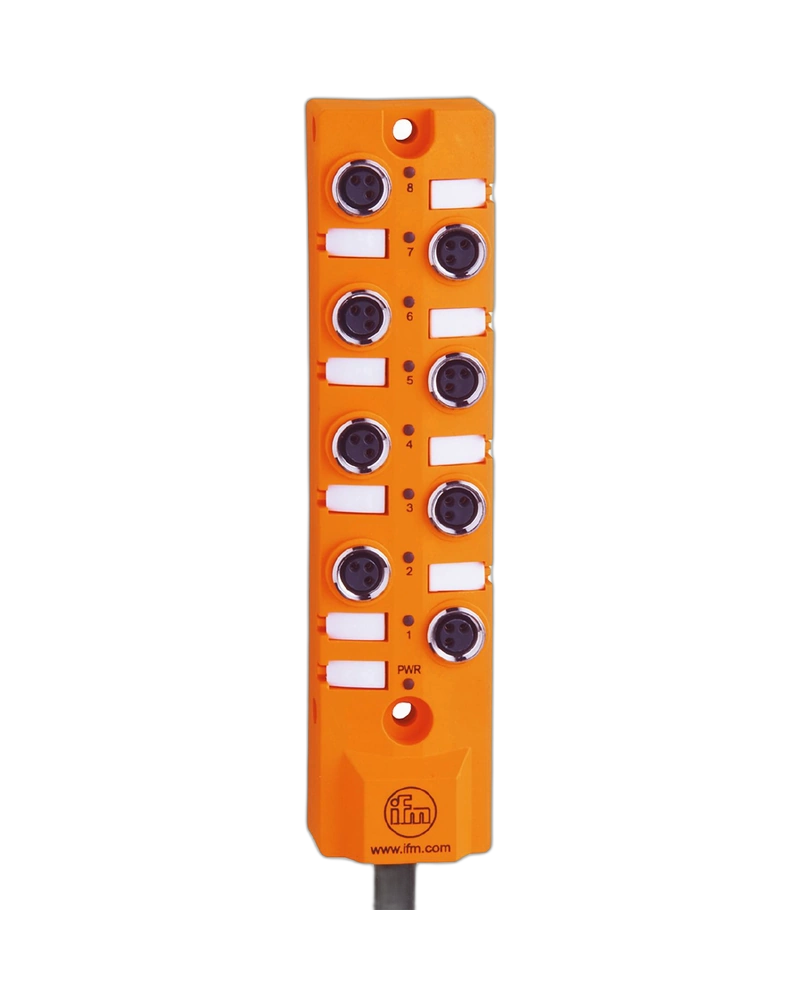

The IFM EBC057 is an eight-port PNP splitter box designed for centralized sensor and actuator connections in industrial automation. It provides eight M8 ports and a 10 m PUR cable for extended installation flexibility. Its compact PBT-GF20 housing provides IP65, IP67 and IP68 protection. Multiple LED indicators provide clear switching and operating status.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC057 provides eight M8 connection points for connecting multiple sensors and actuators. Centralized wiring helps reduce cable-routing complexity and keeps machine installations organized. The compact housing allows installation in areas where mounting space is restricted. It is suitable for a variety of factory automation and machine-building applications.
The EBC057 uses PNP electrical technology and operates from a 10...30 V DC supply. Each connection supports up to 2 A, with a maximum total current of 6 A. This configuration is suitable for industrial sensor and actuator systems. Gold-plated contacts provide stable electrical connectivity.
The 10 m PUR cable allows the splitter box to be installed at a suitable distance from the control equipment. The cable is designed for industrial environments and supports flexible machine applications. Drag-chain suitability allows it to be used with moving machinery under specified conditions. Maintaining the recommended bending radius is important for reliable service.
The PBT-GF20 housing provides a strong and compact enclosure for the connection system. IP65, IP67 and IP68 protection supports operation in demanding factory environments. Sixteen yellow LEDs provide individual switching-status indication and one green LED indicates operation. This makes fault identification and maintenance easier.
8 M8 ports
PNP electrical design
10...30 V DC operation
10 m PUR cable
2 A maximum current per port
6 A maximum total current
IP65/IP67/IP68 protection
16 yellow LEDs
1 green LED
PBT-GF20 housing
Gold-plated contacts
Drag-chain suitable
Compact construction
Industrial automation
Factory automation
Machine tools
CNC machinery
Production lines
Sensor and actuator connectivity
Moving machinery
Compact automation systems
| Specification | Details |
|---|---|
| Product Code | EBC057 |
| Model | ZDO8F04HMSS0010H10 |
| Product Type | Splitter Box |
| Electrical Design | PNP |
| Number of Ports | 8 |
| Connector Type | M8 |
| Connector Coding | A-coded |
| Operating Voltage | 10...30 V DC |
| Maximum Current per Port | 2 A |
| Maximum Total Current | 6 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 |
| Housing Material | PBT-GF20 |
| Connector Material | Brass, nickel-plated |
| Dimensions | 129.5 × 30 × 20 mm |
| Weight | Approx. 1247 g |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Diameter | Approx. 8.5 mm |
| Cable Cores | 16 × 0.34 mm² + 2 × 0.75 mm² |
| Cable Colour | Black |
| Contacts | Gold-plated |
| Mounting | Backplane mounting |
| Ambient Temperature | -25...80 °C |
| Moving Temperature | -5...60 °C |
| Flexible Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Drag-Chain Suitability | Yes |
| Switching Status | 16 × yellow LED |
| Operation Status | 1 × green LED |
| Accessories | DIN rail adapter E73007, M8 protective cap E73005 |
| Pack Quantity | 1 piece |
