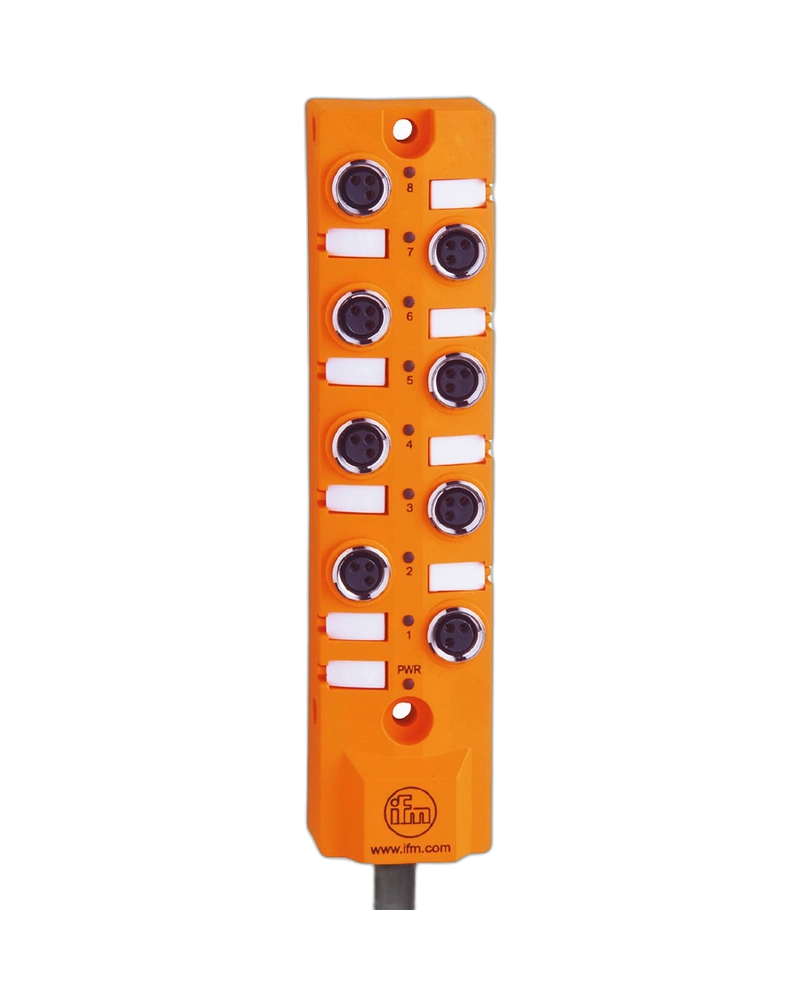

The IFM EBC055 is an eight-port PNP splitter box designed for reliable sensor and actuator connectivity in industrial automation. It features eight M8 ports and a 10 m PUR cable for extended installation flexibility. The robust PBT-GF20 housing provides IP65, IP67 and IP68 protection. LED indication, gold-plated contacts and drag-chain suitability support dependable operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC055 provides eight M8 ports for connecting several sensors and actuators through a centralized field connection. This helps reduce individual cable routing and creates a more organized machine wiring structure. The eight-port design is useful for machines with multiple sensors installed across different positions. It also simplifies service and troubleshooting activities.
The EBC055 uses PNP electrical technology and operates at 10...30 V DC. The splitter box supports up to 2 A per connection with a maximum total current of 6 A. A-coded M8 connectors provide standardized field connectivity. Gold-plated contacts support reliable electrical signal transfer.
The 10 m PUR cable provides additional flexibility for larger machines and production systems. Its halogen-free construction is suitable for industrial installations. The cable can be used in dynamic applications when the specified bending conditions are maintained. Drag-chain suitability makes it useful for moving machinery.
The EBC055 features a durable PBT-GF20 housing with nickel-plated brass components. IP65, IP67 and IP68 protection provides dependable environmental protection. Eight yellow LEDs indicate individual switching status and a green LED indicates operation. These features support easier commissioning and preventive maintenance.
8 M8 ports
PNP electrical design
10...30 V DC operation
10 m PUR cable
2 A maximum current per port
6 A maximum total current
IP65/IP67/IP68 protection
PBT-GF20 housing
Gold-plated contacts
8 yellow switching LEDs
1 green operation LED
Drag-chain suitable
Halogen-free cable
Factory automation
Industrial automation
Machine tools
CNC machinery
Production equipment
Sensor and actuator wiring
Moving machine applications
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EBC055 |
| Model | ZDO8F039MSS0010H10 |
| Product Type | Splitter Box |
| Electrical Design | PNP |
| Number of Ports | 8 |
| Connector Type | M8 |
| Connector Coding | A-coded |
| Operating Voltage | 10...30 V DC |
| Maximum Current per Port | 2 A |
| Maximum Total Current | 6 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 |
| Housing Material | PBT-GF20 |
| Connector Material | Brass, nickel-plated |
| Dimensions | 129.5 × 30 × 20 mm |
| Weight | Approx. 879 g |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Diameter | Approx. 9.1 mm |
| Cable Cores | 8 × 0.34 mm² + 2 × 0.75 mm² |
| Cable Colour | Black |
| Cable Construction | Halogen-free |
| Contacts | Gold-plated |
| Mounting | Backplane mounting |
| Ambient Temperature | -25...80 °C |
| Moving Temperature | -5...60 °C |
| Flexible Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Drag-Chain Suitability | Yes |
| Switching Status | 8 × yellow LED |
| Operation Status | 1 × green LED |
| Accessories | DIN rail adapter E73007, M8 protective cap E73005 |
| Pack Quantity | 1 piece |
