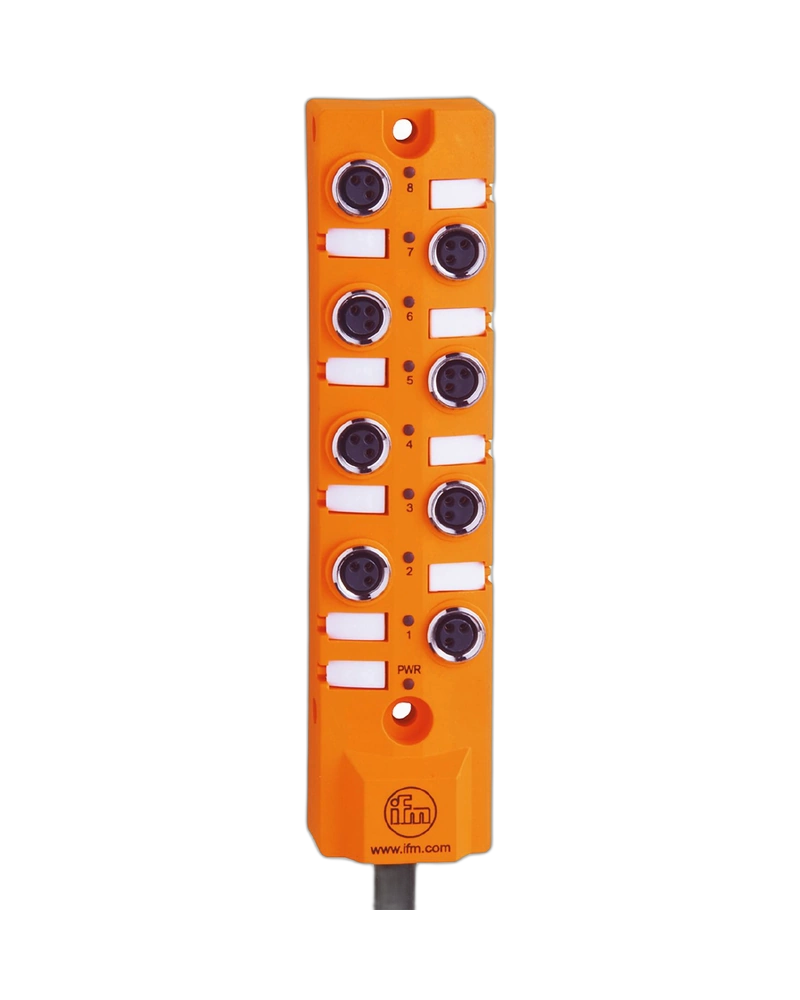

The IFM EBC054 is an eight-port PNP splitter box designed for centralized sensor and actuator connectivity. It provides eight M8 ports with a 5 m PUR cable for flexible machine installation. The robust PBT-GF20 housing offers IP65, IP67 and IP68 protection. Multiple LED indicators and gold-plated contacts provide convenient monitoring and reliable electrical performance.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC054 provides eight M8 ports for connecting multiple sensors and actuators through one centralized field connection. The eight-port arrangement helps reduce complex machine wiring and improves cable organization. It is suitable for automation systems where several field devices must be connected in a compact area. Centralized wiring also makes troubleshooting more convenient.
The EBC054 is designed with PNP electrical technology and operates from 10...30 V DC. Each connection can support up to 2 A, with a maximum total current of 6 A. The M8 A-coded connectors provide standardized industrial connectivity. Gold-plated contacts help ensure stable electrical signal transmission.
The integrated 5 m PUR cable provides convenient connection distance for many automation applications. Its halogen-free construction supports industrial installation requirements. The cable is suitable for dynamic applications and drag-chain installations under specified conditions. Proper bending-radius control helps improve cable service life.
The splitter box uses PBT-GF20 housing and nickel-plated brass components. IP65, IP67 and IP68 protection helps protect the connection system from dust and moisture. Eight yellow LEDs indicate switching status and one green LED indicates operation. This provides quick visual feedback during installation and maintenance.
8 M8 ports
PNP electrical design
10...30 V DC operation
5 m PUR cable
2 A maximum current per port
6 A maximum total current
IP65/IP67/IP68 protection
PBT-GF20 housing
Gold-plated contacts
8 yellow LEDs
1 green LED
Drag-chain suitable
Halogen-free cable
Industrial automation
Factory automation
Machine tools
CNC machinery
Production lines
Sensor and actuator connectivity
Moving machinery
Coolant and lubricant environments
| Specification | Details |
|---|---|
| Product Code | EBC054 |
| Model | ZDO8F039MSS0005H10 |
| Product Type | Splitter Box |
| Electrical Design | PNP |
| Number of Ports | 8 |
| Connector Type | M8 |
| Connector Coding | A-coded |
| Operating Voltage | 10...30 V DC |
| Maximum Current per Port | 2 A |
| Maximum Total Current | 6 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 |
| Housing Material | PBT-GF20 |
| Connector Material | Brass, nickel-plated |
| Dimensions | 129.5 × 30 × 20 mm |
| Weight | Approx. 512 g |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Diameter | Approx. 7.4 mm |
| Cable Cores | 8 × 0.34 mm² + 2 × 0.75 mm² |
| Cable Colour | Black |
| Cable Construction | Halogen-free |
| Contacts | Gold-plated |
| Mounting | Backplane mounting |
| Ambient Temperature | -25...80 °C |
| Moving Temperature | -5...60 °C |
| Flexible Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Drag-Chain Suitability | Yes |
| Switching Status | 8 × yellow LED |
| Operation Status | 1 × green LED |
| Accessories | DIN rail adapter E73007, M8 protective cap E73005 |
| Pack Quantity | 1 piece |
