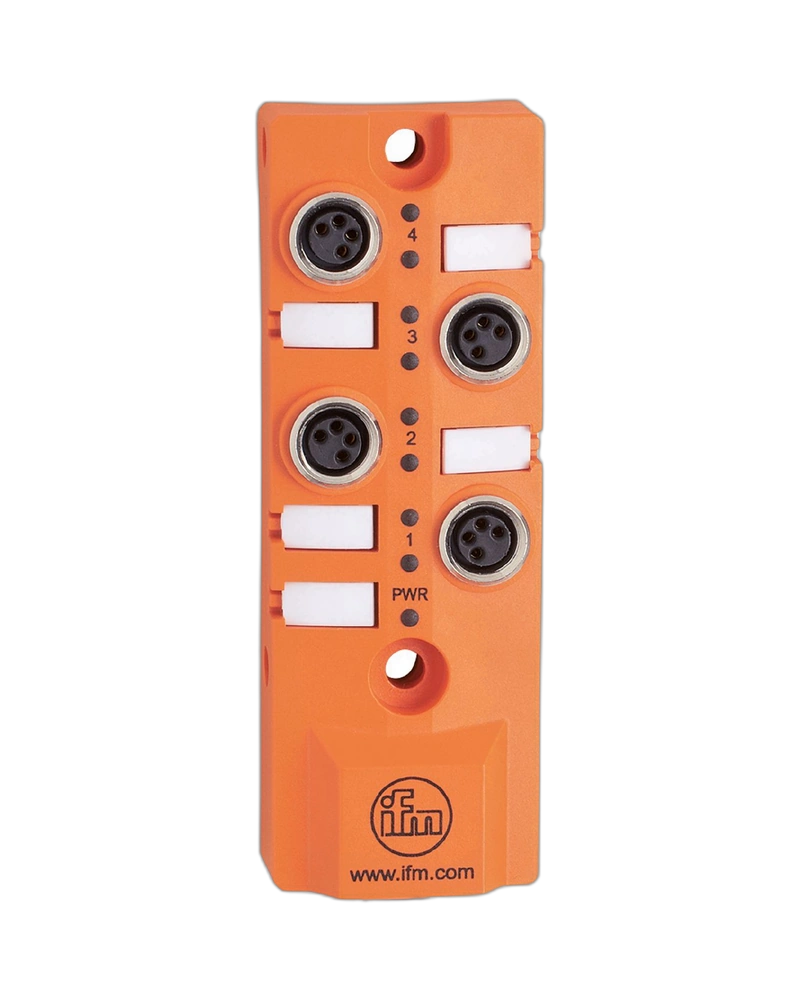

The IFM EBC052 is a four-port PNP splitter box designed for reliable field-device connectivity in industrial automation systems. It provides four M8 ports with a 10 m PUR cable for extended installation flexibility. Its compact PBT-GF20 housing is suitable for space-restricted machine installations. Gold-plated contacts and LED status indication support reliable connection and maintenance.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC052 provides four M8 connection ports in a compact industrial housing. It allows multiple sensors and actuators to be connected through a centralized wiring point. This reduces cable-routing complexity and helps maintain an organized machine installation. The compact dimensions make it suitable for applications where mounting space is limited.
The splitter box uses PNP electrical technology with a 10...30 V DC operating supply. It is designed to distribute electrical signals and power to connected industrial devices. The A-coded M8 interfaces provide a standardized connection method. Gold-plated contacts help maintain stable and reliable electrical performance.
The EBC052 includes a 10 m PUR cable for applications requiring greater connection distance. The cable construction is designed for industrial use and supports mechanical flexibility. It can be used in moving applications when the recommended bending radius and operating conditions are maintained. This makes the product suitable for larger machinery and production lines.
The PBT-GF20 housing and nickel-plated brass components provide a robust connection solution. IP65, IP67 and IP68 protection supports operation in demanding industrial environments. Eight yellow LEDs provide switching-status indication, while a green LED indicates operating status. This allows quick visual checking during maintenance.
4 M8 ports
PNP electrical design
10...30 V DC operation
10 m PUR cable
Gold-plated contacts
PBT-GF20 housing
IP65/IP67/IP68 protection
8 yellow switching LEDs
1 green operation LED
Drag-chain suitable
Compact 85.5 mm housing length
Oil and coolant resistant
Industrial automation
Factory automation
Machine tools
Production lines
Sensor connectivity
Actuator connectivity
Assembly equipment
Compact industrial machines
| Specification | Details |
|---|---|
| Product Code | EBC052 |
| Model | ZDO4F049MSS0010H10 |
| Product Type | Splitter Box |
| Electrical Design | PNP |
| Number of Ports | 4 |
| Connector Type | M8 |
| Connector Coding | A-coded |
| Operating Voltage | 10...30 V DC |
| Maximum Current per Port | 2 A |
| Maximum Total Current | 6 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 |
| Housing Material | PBT-GF20 |
| Connector Material | Brass, nickel-plated |
| Dimensions | 85.5 × 30 × 20 mm |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Diameter | Approx. 7.4 mm |
| Cable Cores | 8 × 0.34 mm² + 2 × 0.75 mm² |
| Cable Colour | Black |
| Contacts | Gold-plated |
| Mounting | Backplane mounting |
| Ambient Temperature | -25...80 °C |
| Moving Temperature | -5...60 °C |
| Flexible Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Drag-Chain Suitability | Yes |
| Switching Status | 8 × yellow LED |
| Operation Status | 1 × green LED |
| Accessories | DIN rail adapter E73006, M8 protective cap E73005 |
| Pack Quantity | 1 piece |
