The IFM EBC050 is a compact four-way wiring block designed for connecting sensors and actuators in industrial automation systems. It provides four M8 ports and an M12 connection with gold-plated contacts. The PBT-GF20 and nickel-plated brass construction offers dependable mechanical performance. IP67 and IP68 protection makes it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC050 provides four M8 connection points for connecting field sensors and actuators to an automation system. Its four-way configuration allows several devices to be organized through one centralized connection point. This reduces wiring complexity and helps create a cleaner machine installation. The compact housing is useful where available mounting space is restricted.
An M12 main connection provides a reliable interface between the wiring block and the automation system. The connector uses gold-plated contacts to support dependable electrical transmission. Nickel-plated brass locking components provide mechanical strength and secure connection. This connection arrangement is suitable for industrial sensor and actuator applications.
The housing is manufactured from PBT-GF20 with nickel-plated brass components. This construction provides good mechanical durability for industrial installations. IP67 and IP68 protection helps protect the electrical connections from dust and water exposure. The wiring block is suitable for factory automation and machine-building environments.

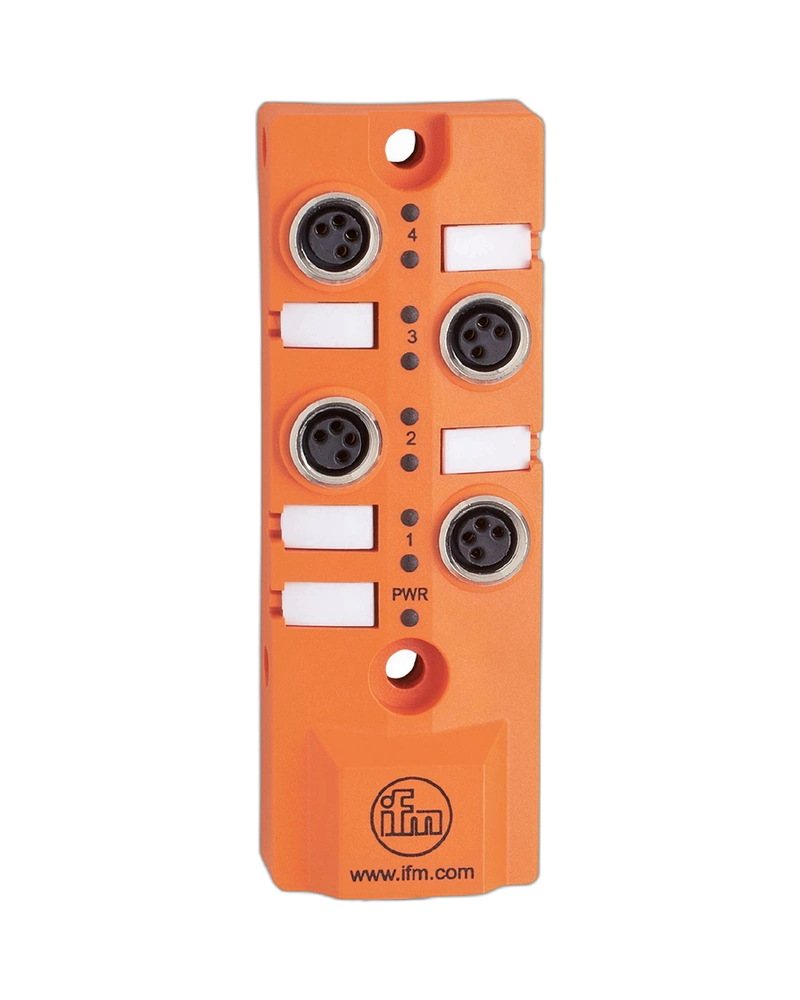

The EBC050 includes yellow LEDs for individual output-status indication and a green LED for power indication. This provides technicians with a quick visual indication of operating conditions. LED feedback can simplify installation, commissioning and troubleshooting. The clearly organized connection layout also improves maintenance accessibility.
4 M8 ports
M12 main connection
DC electrical design
10...30 V DC operation
2 A maximum current per port
2 A maximum total current
IP67/IP68 protection
PBT-GF20 housing
Nickel-plated brass components
Gold-plated contacts
4 yellow LEDs
1 green power LED
Compact four-way design
Factory automation
Industrial control systems
Machine tools
Production machinery
Sensor connections
Actuator connections
Compact automation equipment
Industrial wiring systems
| Specification | Details |
|---|---|
| Product Code | EBC050 |
| Model | ZDO4F035MSS0000---STGH080MSS |
| Product Type | Wiring Block / Splitter Box |
| Design | 4-way |
| Number of Ports | 4 |
| Port Connector | M8 |
| Main Connection | M12 |
| Electrical Design | DC |
| Operating Voltage | 10...30 V DC |
| Maximum Current per Port | 2 A |
| Maximum Total Current | 2 A |
| Protection Class | III |
| Protection Rating | IP67 / IP68 |
| Housing Material | PBT-GF20 |
| Connector Material | Brass, nickel-plated |
| Contacts | Gold-plated |
| Ambient Temperature | -25...80 °C |
| Moving Temperature | -5...60 °C |
| Switching Status | 4 × yellow LED |
| Power Status | 1 × green LED |
| Accessories | DIN rail adapter E73006, M8 protective cap E73005 |
| Pack Quantity | 1 piece |
