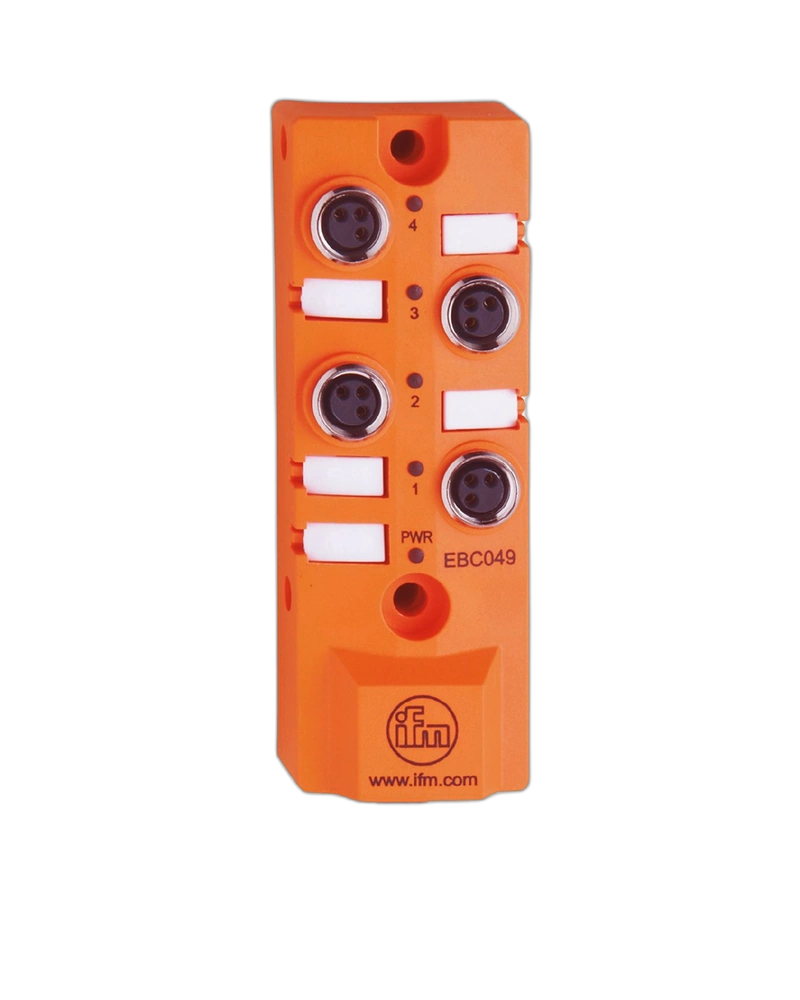

The IFM EBC049 is a compact four-port splitter box designed for reliable sensor and actuator connections in industrial automation systems. It provides four M8 connection ports with a 10 m PUR cable for flexible installation. The robust PBT-GF20 housing offers reliable protection in demanding industrial environments. Gold-plated contacts and LED indicators support dependable connectivity and easy status monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC049 provides four M8 connection ports for connecting multiple sensors and actuators through a centralized wiring point. Its compact construction is suitable for machines where installation space is limited. Centralized connections help reduce cable routing complexity and improve overall machine wiring. The four-port arrangement is suitable for a wide range of factory automation applications.
The splitter box is designed for PNP signal distribution and operates with a 10...30 V DC supply. It provides reliable electrical connectivity between field devices and the control system. The standardized M8 interfaces make sensor integration convenient. Gold-plated contacts help maintain stable signal transmission during continuous operation.
The EBC049 is equipped with a 10 m PUR cable for applications requiring extended connection distance. The cable is halogen-free and designed for industrial environments where mechanical durability is important. Its flexible construction supports moving-machine applications under specified conditions. Proper bending-radius requirements should be followed during installation.
The PBT-GF20 housing with nickel-plated brass components provides a durable industrial connection solution. The splitter box is designed to withstand dust, moisture, oils and coolants encountered in factory environments. Yellow LEDs provide switching-status information while a green LED indicates operation. These indicators help simplify commissioning and troubleshooting.
4 M8 connection ports
PNP electrical design
10...30 V DC operating voltage
10 m PUR cable
Gold-plated contacts
PBT-GF20 housing
Nickel-plated brass components
IP65/IP67/IP68 protection
4 yellow switching-status LEDs
1 green operation LED
Drag-chain suitable
Compact housing design
Oil and coolant resistant
Industrial automation systems
Factory automation equipment
Machine tools
CNC machinery
Sensor and actuator connectivity
Production and assembly equipment
Compact automation machines
Moving machine applications
| Specification | Details |
|---|---|
| Product Code | EBC049 |
| Model | ZDO4F035MSS0010H10 |
| Product Type | Splitter Box |
| Electrical Design | PNP |
| Number of Ports | 4 |
| Connector Type | M8 |
| Connector Coding | A-coded |
| Operating Voltage | 10...30 V DC |
| Maximum Current per Port | 2 A |
| Maximum Total Current | 6 A |
| Protection Class | III |
| Protection Rating | IP65 / IP67 / IP68 |
| Housing Material | PBT-GF20 |
| Connector Material | Brass, nickel-plated |
| Dimensions | Compact housing design |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Diameter | Approx. 6.4 mm |
| Cable Cores | 4 × 0.34 mm² + 2 × 0.75 mm² |
| Cable Colour | Black |
| Cable Construction | Halogen-free |
| Contacts | Gold-plated |
| Mounting | Backplane mounting |
| Ambient Temperature | -25...80 °C |
| Moving Temperature | -5...60 °C |
| Flexible Bending Radius | Min. 10 × cable diameter |
| Travel Speed | Max. 3.3 m/s under specified conditions |
| Bending Cycles | >5 million |
| Torsional Strain | ±180°/m |
| Drag-Chain Suitability | Yes |
| Switching Status | 4 × yellow LED |
| Operation Status | 1 × green LED |
| Accessories | M8 protective cap E73005, DIN rail adapter E73006 |
| Pack Quantity | 1 piece |
