The IFM EBC047 is an eight-port PNP splitter box designed for centralized sensor and actuator connections. It provides eight M12 ports and a 15 m PUR cable for flexible industrial installation. The robust PA housing offers IP67 and IP68 protection for demanding environments. Clear LED indicators and gold-plated contacts support reliable operation and convenient maintenance.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

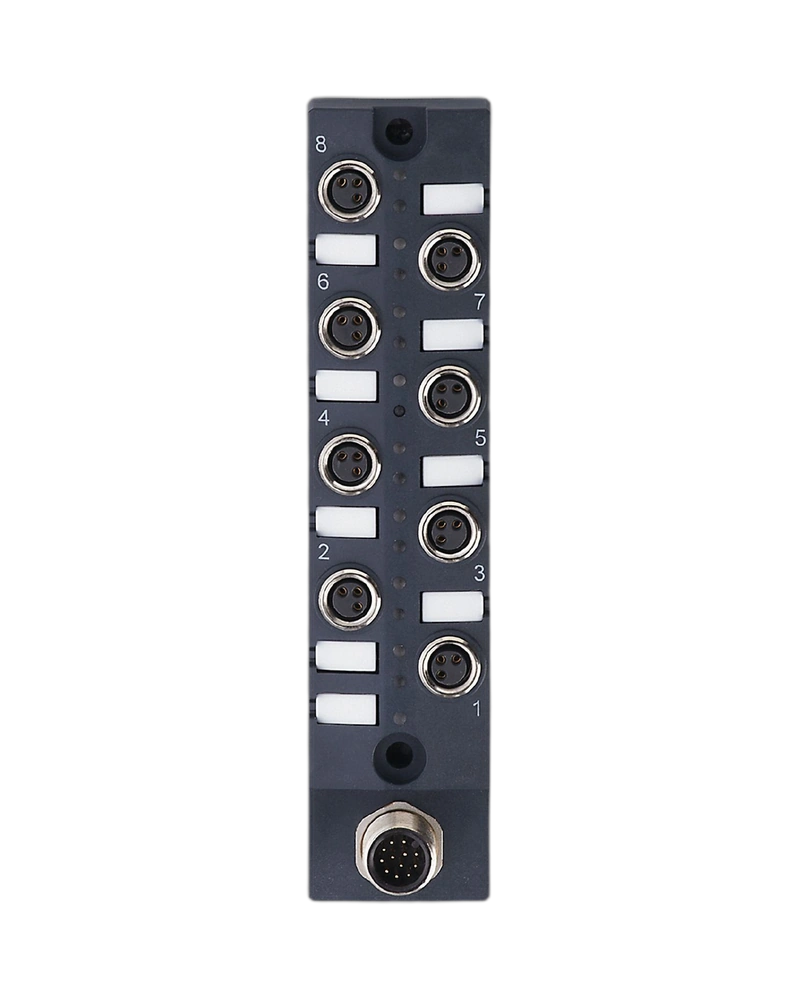

The EBC047 provides eight M12 connection ports for connecting multiple industrial sensors and actuators. The centralized arrangement helps reduce wiring complexity and provides organized field connectivity. It is suitable for automation machines with multiple connected devices. The splitter box can be installed close to field devices for efficient cable management.
The EBC047 uses PNP electrical technology with a 10...30 V DC operating voltage. Each port supports up to 4 A, while the total current capacity is 12 A. This makes it suitable for common industrial sensor and actuator applications. Standardized M12 connectors support convenient field-device integration.
The integrated 15 m PUR cable provides flexibility for larger machine installations. Its halogen-free construction is suitable for industrial environments. The cable supports dynamic installations and drag-chain applications under specified conditions. Proper cable routing and bending radius help maintain long-term performance.
Eight yellow LEDs indicate switching status and one green LED indicates operation. These visual indicators allow technicians to quickly check connection conditions. The splitter box also uses gold-plated contacts for stable electrical connectivity. Its robust construction is suitable for environments involving oils and coolants.
8 M12 ports
PNP electrical design
10...30 V DC operating voltage
15 m PUR cable
4 A maximum current per port
12 A maximum total current
IP67/IP68 protection
8 yellow switching LEDs
1 green operation LED
Gold-plated contacts
Drag-chain suitable
Oil and coolant resistant
Industrial automation
Factory automation
Machine tools
CNC equipment
Production machinery
Sensor and actuator connections
Moving machine applications
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EBC047 |
| Model | ZDO8H059MSS0015H11 |
| Product Type | Splitter Box |
| Electrical Design | PNP |
| Number of Ports | 8 |
| Connector Type | M12 |
| Connector Coding | A-coded |
| Operating Voltage | 10...30 V DC |
| Protection Class | II |
| Maximum Current per Port | 4 A |
| Maximum Total Current | 12 A |
| Protection Rating | IP67 / IP68 |
| Housing Material | PA |
| Dimensions | 127 × 54 × 22 mm |
| Weight | Approx. 1671–1725 g |
| Cable Length | 15 m |
| Cable Material | PUR |
| Cable Diameter | 8.2 mm |
| Cable Cores | 8 × 0.34 mm² + 3 × 0.75 mm² |
| Cable Construction | Halogen-free |
| Contacts | Gold-plated |
| Tightening Torque | 0.8...1.5 Nm |
| Ambient Temperature | -25...80 °C |
| Moving Temperature | -5...60 °C |
| Flexible Bending Radius | Min. 10 × cable diameter |
| Fixed Bending Radius | Min. 5 × cable diameter |
| Travel Speed | Max. 3 m/s under specified conditions |
| Torsional Strain | ±30°/m |
| Bending Cycles | >2 million |
| Drag-Chain Suitability | Yes |
| Switching Status | 8 × yellow LED |
| Operation Status | 1 × green LED |
| Items Supplied | 2 protective caps, 8 labels |
| Pack Quantity | 1 piece |
