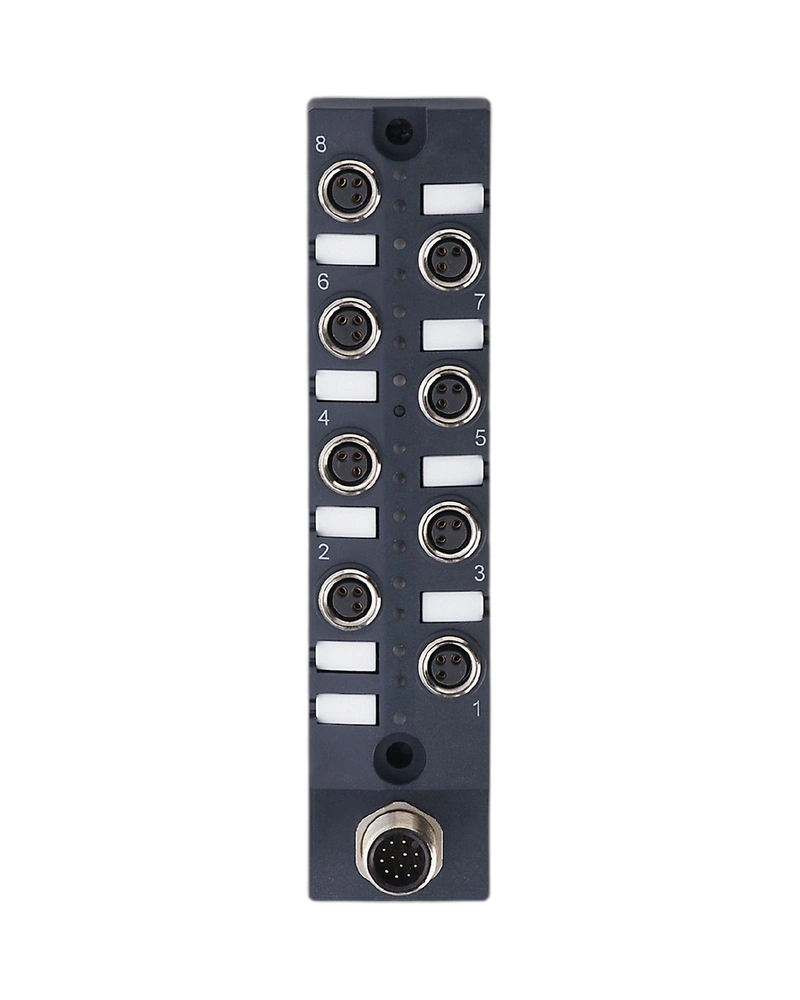

The IFM EBC045 is an eight-port PNP splitter box designed for compact sensor and actuator connections. It features eight M8 ports and one M12 main connection for centralized field wiring. The PBT-GF 20 housing provides IP67 protection for industrial applications. Individual LED indicators provide clear switching status and a green LED indicates operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC045 provides eight M8 connection ports for connecting multiple compact sensors and actuators. This higher port count makes it useful for machines requiring several field-device connections. The centralized design helps organize wiring and reduce individual cable routing. Its compact M8 connection technology is suitable for space-conscious automation systems.
The EBC045 uses a PNP electrical design with a 15...30 V DC operating voltage. Each port supports a maximum current load of 1 A, with a total current capacity of 1 A. This configuration is suitable for low-current industrial sensor applications. The M12 main connection provides a practical interface to the automation system.
The housing uses PBT-GF 20 material with nickel-plated brass components. This provides suitable mechanical strength for industrial installation. IP67 protection helps protect the unit from dust and water exposure. Its compact 28.8 × 30 × 129.5 mm form factor supports convenient machine installation.
Eight yellow LEDs provide individual switching-status indication. A separate green LED indicates operating status. This visual feedback allows technicians to quickly identify active connections. It can simplify commissioning, troubleshooting and routine machine maintenance.
8 M8 ports
1 M12 main connection
PNP electrical design
15...30 V DC operating voltage
1 A maximum current per port
1 A maximum total current
IP67 protection
PBT-GF 20 housing
Gold-plated contacts
8 yellow switching LEDs
1 green operation LED
Compact construction
Industrial sensor systems
Factory automation
Compact machinery
Machine tools
Production equipment
Sensor and actuator connections
Assembly machinery
Space-limited installations
| Specification | Details |
|---|---|
| Product Code | EBC045 |
| Model | ZDO8F039MSS0000-STGH120MSS |
| Product Type | Splitter Box |
| Electrical Design | PNP |
| Number of Ports | 8 |
| Port Connector | M8 |
| Main Connection | 1 × M12 |
| Operating Voltage | 15...30 V DC |
| Protection Class | III |
| Maximum Current per Port | 1 A |
| Maximum Total Current | 1 A |
| Protection Rating | IP67 |
| Housing Material | PBT-GF 20 |
| Metal Material | Brass, nickel-plated |
| Dimensions | 129.5 × 30 × 28.8 mm |
| Weight | 125 g |
| Contacts | Gold-plated |
| Tightening Torque | 0.8...1.5 Nm |
| Ambient Temperature | -25...80 °C |
| Moving Temperature | -5...60 °C |
| Switching Status | 8 × yellow LED |
| Operation Status | 1 × green LED |
| Pack Quantity | 1 piece |
