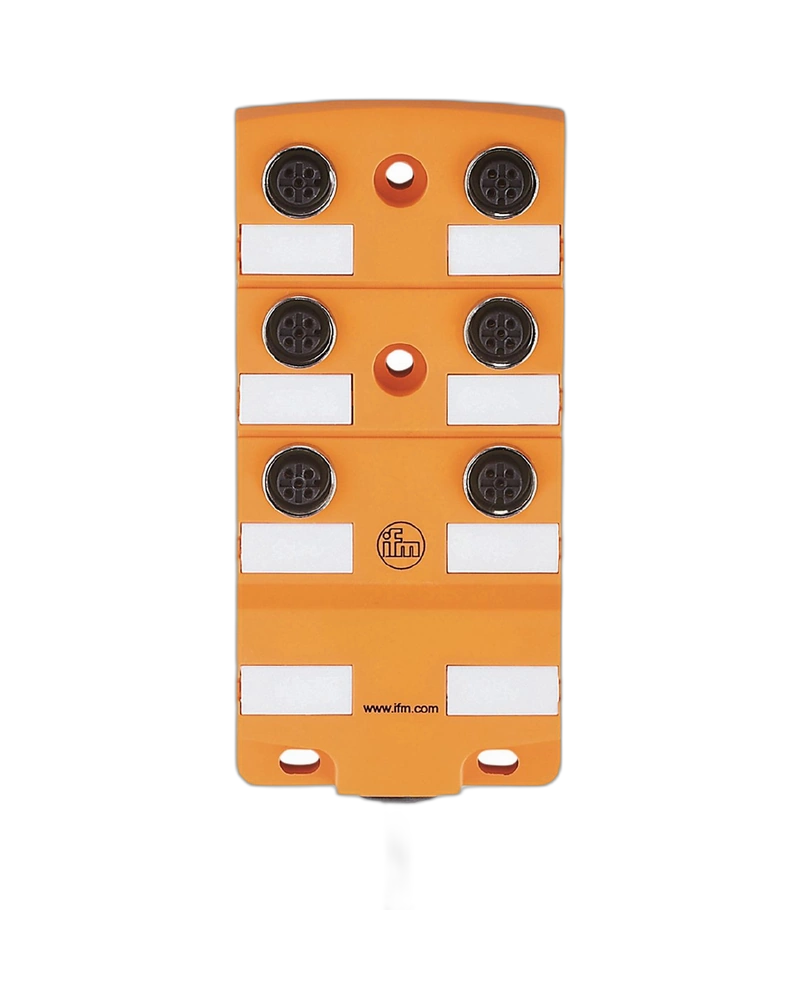

The IFM EBC043 is a six-port splitter box designed for centralized sensor and actuator connections in industrial automation systems. It features six M12 ports and a 10 m PVC cable for dependable machine installation. The robust PA housing provides IP67 protection for industrial environments. Gold-plated contacts and LED indicators support reliable connectivity and convenient status monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC043 provides six M12 ports for connecting industrial sensors and actuators through a centralized wiring point. This arrangement helps simplify field wiring and improves cable organization around machinery. The splitter box can support multiple connected devices without requiring separate connection points. Its compact design is suitable for various automation applications.
The unit supports an operating voltage below 30 V DC and allows up to 4 A per module or slot. The total current capacity is 12 A, providing practical power distribution for connected devices. The M12 connectors use A-coding for standardized industrial connectivity. Gold-plated contacts support reliable electrical transmission.
The EBC043 is supplied with a 10 m black PVC cable for flexible connection to control equipment. The cable has a 6.3 mm diameter and uses five 0.5 mm² conductors. Its construction is suitable for standard industrial automation installations. Correct cable routing helps ensure reliable long-term operation.
The PA housing provides a robust enclosure for factory automation applications. IP67 protection helps safeguard the electrical connection system against dust and temporary water exposure. The unit is suitable for industrial machinery and production equipment. Clearly visible LEDs provide convenient switching and operating information.
6 M12 ports
10 m PVC cable
<30 V DC operating voltage
4 A maximum current per module
12 A maximum total current
IP67 protection
Gold-plated contacts
PA housing
6 yellow switching LEDs
1 green operation LED
A-coded M12 connectors
Compact industrial construction
Industrial automation
Factory automation
Machine tools
Production machinery
Sensor connection systems
Actuator connection systems
Control panel connections
Industrial equipment
| Specification | Details |
|---|---|
| Product Code | EBC043 |
| Model | ZDO6H050MSS0010E15 |
| Product Type | Splitter Box |
| Number of Ports | 6 |
| Connector Type | M12 |
| Connector Coding | A-coded |
| Operating Voltage | <30 V DC |
| Maximum Current per Module | 4 A |
| Maximum Current per Pin | 2 A |
| Maximum Current per Group | 8 A |
| Maximum Total Current | 12 A |
| Protection Rating | IP67 |
| Housing Material | PA |
| Dimensions | 125 × 60 × 22 mm |
| Weight | 880 g |
| Cable Length | 10 m |
| Cable Material | PVC |
| Cable Diameter | 6.3 mm |
| Cable Cores | 5 × 0.5 mm² |
| Cable Colour | Black |
| Contacts | Gold-plated |
| Tightening Torque | 0.8...1.5 Nm |
| Ambient Temperature | -25...40 °C |
| Moving Temperature | -5...60 °C |
| Switching Status | Yellow LED indication |
| Operation Status | Green LED indication |
| Items Supplied | 6 labels |
| Pack Quantity | 1 piece |
