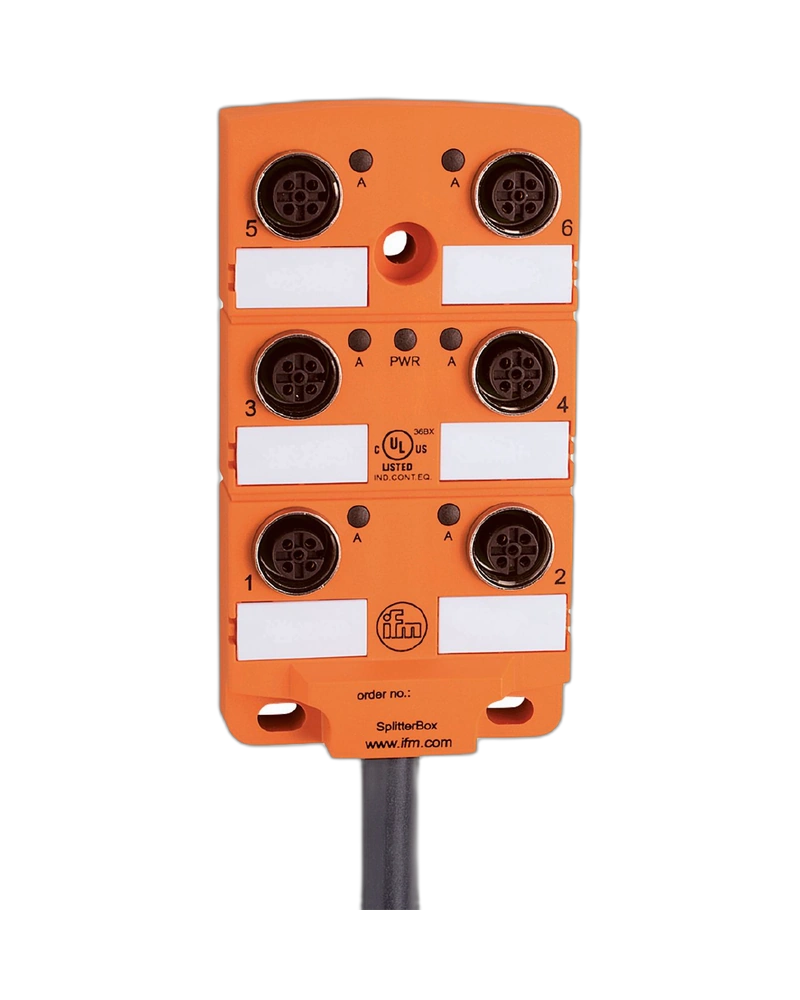

The IFM EBC041 is a six-port PNP splitter box designed for centralized sensor and actuator connectivity. It features six M12 ports and a 15 m PUR cable for flexible industrial installation. The PA housing provides IP67 and IP68 protection for demanding environments. Multiple LED indicators provide clear switching and operation status for easier monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC041 provides six M12 ports for connecting multiple industrial sensors and actuators through one centralized connection point. This helps organize field wiring and reduce cable-routing complexity. The unit can be installed close to machine devices for efficient connection management. Its six-port configuration suits many industrial automation applications.
The EBC041 uses a PNP electrical design with a 10...30 V DC operating range. Each port supports up to 4 A, while the maximum total current is 12 A. This provides dependable power and signal distribution for connected field devices. The M12 interface supports practical integration with standard industrial sensors and actuators.
A 15 m PUR cable provides flexibility where the splitter box must be positioned at a greater distance from the control equipment. The cable is halogen-free and designed for industrial applications. It is also suitable for dynamic installations under specified conditions. The robust cable construction supports reliable long-term operation.
The EBC041 includes twelve yellow switching-status LEDs and one green operation LED. This provides clear visual information about connected circuits and operating conditions. LED indication can make commissioning and troubleshooting easier for maintenance personnel. The centralized connection arrangement further improves service accessibility.
6 M12 ports
PNP electrical design
10...30 V DC operation
15 m PUR cable
4 A maximum current per port
12 A maximum total current
IP67/IP68 protection
Gold-plated contacts
12 yellow switching LEDs
1 green operation LED
PA housing
Drag-chain suitable
Industrial automation
Factory automation
Machine tools
CNC equipment
Sensor and actuator systems
Production machinery
Assembly equipment
Moving machine applications
| Specification | Details |
|---|---|
| Product Code | EBC041 |
| Model | ZDO6H05DMSS0015H15 |
| Product Type | Splitter Box |
| Electrical Design | PNP |
| Number of Ports | 6 |
| Connector Type | M12 |
| Connector Coding | A-coded |
| Operating Voltage | 10...30 V DC |
| Protection Class | II |
| Maximum Current per Port | 4 A |
| Maximum Total Current | 12 A |
| Protection Rating | IP67 / IP68 |
| Housing Material | PA |
| Dimensions | 100 × 54 × 22 mm |
| Weight | Approx. 1.9 kg |
| Cable Length | 15 m |
| Cable Material | PUR |
| Cable Diameter | 8.8 mm |
| Cable Cores | 12 × 0.34 mm² + 3 × 1.0 mm² |
| Cable Construction | Halogen-free |
| Contacts | Gold-plated |
| Tightening Torque | 0.8...1.5 Nm |
| Ambient Temperature | -25...80 °C |
| Moving Temperature | -5...60 °C |
| Flexible Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >2 million |
| Drag-Chain Suitability | Yes |
| Switching Status | 12 × yellow LED |
| Operation Status | 1 × green LED |
| Items Supplied | 2 protective caps, 6 labels |
| Pack Quantity | 1 piece |
