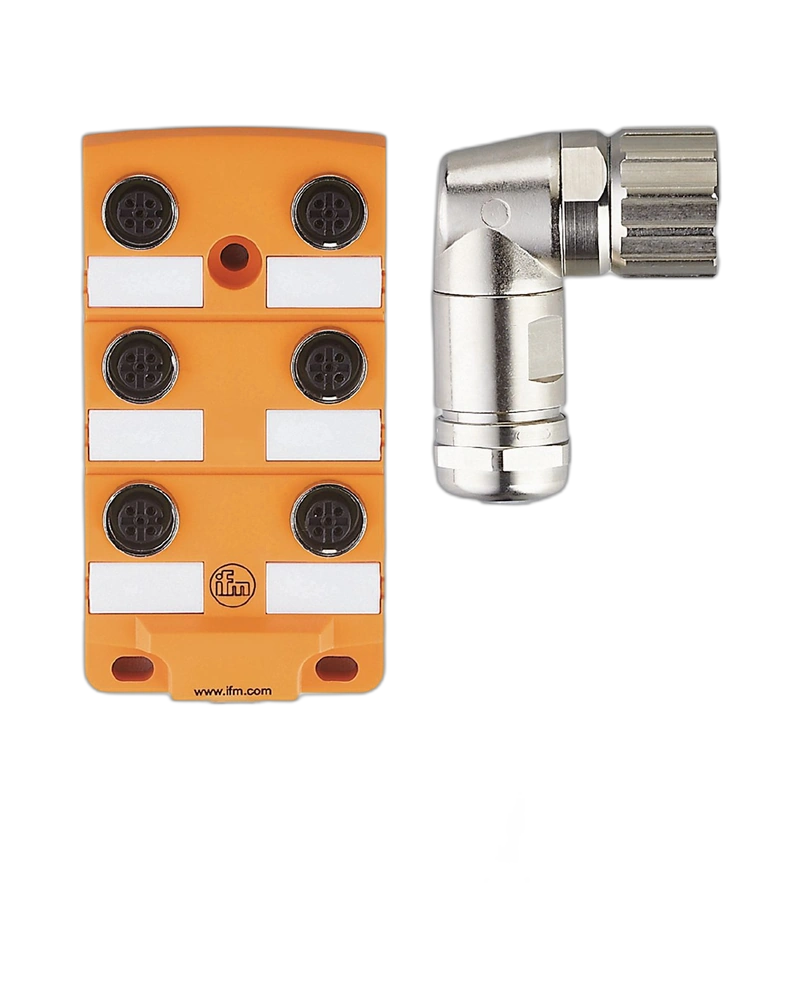

The IFM EBC040 is a six-port splitter box designed for reliable sensor and actuator connections in industrial automation systems. It features six M12 ports, a 10 m PUR cable and an angled M23 connection. The robust PA housing provides IP67 and IP68 protection for demanding industrial environments. Gold-plated contacts and drag-chain suitability support reliable operation in dynamic machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC040 provides six M12 connection ports for centralized connection of industrial sensors and actuators. This helps reduce complicated wiring and provides an organized connection point near the machine. The compact design allows field devices to be connected efficiently within automation systems. It is suitable for production machinery and factory automation applications.
The product includes an angled M23 connection that provides a practical interface between the splitter box and the main control connection. The angled connector can help improve cable routing in restricted machine spaces. Gold-plated contacts support stable electrical connectivity. The connection is designed for reliable industrial use.
The EBC040 includes a 10 m PUR cable with a robust industrial construction. The cable is halogen-free and suitable for applications where mechanical durability is important. Drag-chain suitability allows the product to be used in machines with moving components. The specified bending radius should be maintained during installation.
The PA housing provides robust protection for industrial applications. IP67 and IP68 ratings help protect the splitter box against dust and water. The product is suitable for demanding factory environments and machine-tool applications. Its gold-plated contacts and reliable sealing contribute to stable long-term performance.
6 M12 ports
10 m PUR cable
1 angled M23 connection
10...30 V DC compatible industrial design
4 A maximum current per port
12 A maximum total current
IP67 and IP68 protection
Gold-plated contacts
Robust PA housing
Drag-chain suitable
Halogen-free cable
Silicone-free construction
Industrial automation
Factory automation
Machine tools
CNC machinery
Sensor and actuator wiring
Production equipment
Moving machine applications
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EBC040 |
| Model | ZDO6H050MSS0010H11STAK190MSS |
| Product Type | Splitter Box / Wiring Block |
| Number of Ports | 6 |
| Connector Type | M12 |
| Main Connection | 1 × angled M23 |
| Operating Voltage | <30 V AC/DC |
| Protection Class | II |
| Maximum Current per Port | 4 A |
| Maximum Total Current | 12 A |
| Protection Rating | IP67 / IP68 |
| Housing Material | PA |
| Dimensions | 100 × 54 × 22 mm |
| Weight | 1470.5 g |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Diameter | 8.8 mm |
| Cable Colour | Black |
| Cable Construction | Halogen-free |
| Cable Cores | 12 × 0.34 mm² + 3 × 1.0 mm² |
| Contacts | Gold-plated |
| Tightening Torque | 0.8...1.5 Nm |
| Ambient Temperature | -25...80 °C |
| Moving Temperature | -5...60 °C |
| Flexible Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >2 million |
| Drag-Chain Suitability | Yes |
| Items Supplied | 2 protective caps, 6 labels |
| Pack Quantity | 1 piece |
