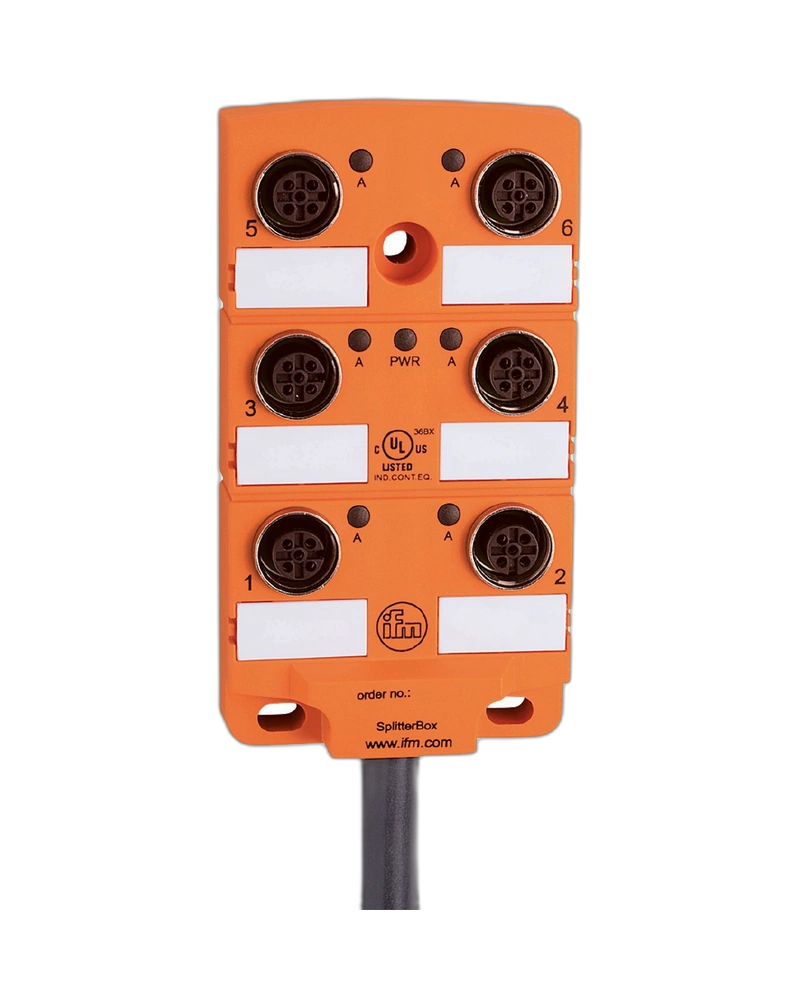

The IFM EBC037 is a compact 6-port splitter box designed for reliable sensor and actuator connectivity in industrial automation. It provides six M12 ports with a short 0.5 m PUR cable for compact machine installations. The robust PA housing offers IP67 and IP68 protection for demanding industrial environments. Gold-plated contacts and LED indication support dependable electrical connections and easy status monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC037 provides six M12 connection ports for connecting multiple industrial sensors and actuators. Its compact configuration is useful when the splitter box needs to be installed close to field devices. The short integrated cable helps minimize unnecessary cable length in compact machine layouts. This makes it suitable for space-conscious automation installations.
The EBC037 is supplied with a 0.5 m PUR cable designed for compact connection requirements. The short cable length can help reduce cable congestion around machinery. PUR construction provides suitable mechanical durability for industrial applications. The cable is also suitable for dynamic installations under specified conditions.
The PA housing provides dependable mechanical protection in demanding industrial environments. IP67 and IP68 protection helps protect the electrical connections against dust and water. The splitter box is suitable for machine tools, factory automation and applications involving oils and coolants. Its construction also supports resistance to shock and vibration.
Six yellow LEDs provide switching-status indication, while a green LED provides operation indication. These visual indicators allow technicians to monitor the connected field devices quickly. The LEDs can be useful during commissioning, troubleshooting and maintenance. Centralized M12 connections also simplify inspection and service work.
6 M12 ports
PNP electrical design
10...30 V DC operating voltage
0.5 m PUR cable
4 A maximum current per port
12 A maximum total current
IP67/IP68 protection
Gold-plated contacts
6 yellow switching LEDs
1 green operation LED
Drag-chain suitable
Halogen-free cable
Industrial automation
Factory automation
Machine tools
CNC machinery
Compact machine installations
Sensor and actuator connections
Moving machine systems
Production equipment
| Specification | Details |
|---|---|
| Product Code | EBC037 |
| Model | ZDO6H057MSS00,5H09 |
| Product Type | Splitter Box |
| Number of Ports | 6 |
| Connector Type | M12 |
| Connector Coding | A-coded |
| Electrical Design | PNP |
| Operating Voltage | 10...30 V DC |
| Protection Class | II |
| Maximum Current per Port | 4 A |
| Maximum Total Current | 12 A |
| Protection Rating | IP67 / IP68 |
| Housing Material | PA |
| Mounting | Backplane mounting |
| Dimensions | 100 x 54 x 22 mm |
| Weight | 212.7 g |
| Cable Length | 0.5 m |
| Cable Material | PUR |
| Cable Diameter | 7.8 mm |
| Cable Colour | Black |
| Cable Cores | 6 x 0.34 mm² + 3 x 1 mm² |
| Cable Construction | Halogen-free |
| Contacts | Gold-plated |
| Locking Nut | Brass, nickel-plated |
| Tightening Torque | 0.8...1.5 Nm |
| Ambient Temperature | -25...80 °C |
| Moving Temperature | -5...60 °C |
| Flexible Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >2 million |
| Drag-Chain Suitability | Yes |
| Switching Status | 6 x yellow LED |
| Operation Status | 1 x green LED |
| Items Supplied | 2 protective caps, 6 labels |
| Pack Quantity | 1 piece |
