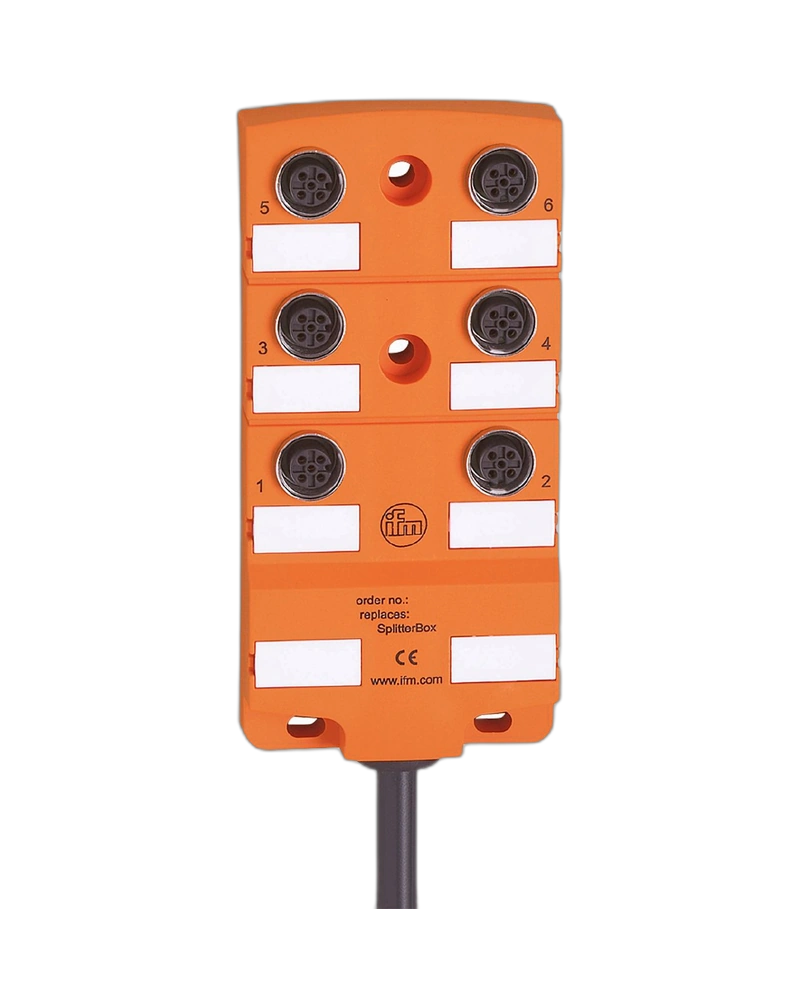

The IFM EBC036 is an 8-port splitter box designed for centralized sensor and actuator connectivity in industrial automation systems. It features PNP electrical design, eight M12 ports and a 10 m PUR cable. The robust PA housing provides IP65, IP67 and IP68 protection for demanding environments. Multiple LED indicators provide clear switching and operating status.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC036 provides eight M12 ports for connecting multiple sensors and actuators through a centralized wiring point. This helps reduce cable routing complexity and creates an organized field connection system. The splitter box can be positioned near the connected devices for easier machine wiring. It is suitable for industrial automation and factory equipment.
The EBC036 features a PNP electrical design with a 10 to 30 V DC operating voltage range. Each connection supports up to 4 A, while the total current load can reach 12 A. This makes it suitable for industrial sensors and actuators requiring reliable field connectivity. The standardized M12 interface supports easy integration into automation systems.
The PA housing is designed for industrial applications where mechanical and environmental stresses are common. The unit provides IP65, IP67 and IP68 protection depending on installation conditions. It is suitable for machine tools and environments involving coolants and lubricants. The robust construction supports reliable long-term operation.
The EBC036 includes sixteen yellow LEDs for switching status and one green LED for power indication. These indicators allow individual connection conditions to be monitored quickly. Clear visual feedback can simplify commissioning and troubleshooting. The centralized design also helps maintenance personnel access and inspect field connections efficiently.
8 M12 connection ports
PNP electrical design
10...30 V DC operation
4 A maximum current per port
12 A maximum total current
10 m PUR cable
Gold-plated contacts
IP65/IP67/IP68 protection
16 yellow switching LEDs
1 green operation LED
Drag-chain suitable
More than 2 million bending cycles
Industrial automation
Factory automation
Machine tools
CNC machinery
Sensor and actuator connectivity
Production equipment
Coolant and lubricant environments
Moving machine systems
| Specification | Details |
|---|---|
| Product Code | EBC036 |
| Model | ZDO8H05HMSS0010H19 |
| Product Type | Splitter Box |
| Number of Ports | 8 |
| Connector Type | M12 |
| Connector Coding | A-coded |
| Electrical Design | PNP |
| Operating Voltage | 10...30 V DC |
| Protection Class | II |
| Maximum Current per Port | 4 A |
| Maximum Total Current | 12 A |
| Protection Rating | IP65 / IP67 / IP68 |
| Housing Material | PA |
| Mounting | Backplane mounting |
| Dimensions | 127 x 54 x 22 mm |
| Weight | 1191.6 g |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Diameter | 9.7 mm |
| Cable Colour | Black |
| Cable Cores | 16 x 0.34 mm² + 3 x 1.0 mm² |
| Cable Construction | Halogen-free |
| Contacts | Gold-plated |
| Locking Nut | Brass, nickel-plated |
| Tightening Torque | 0.8...1.5 Nm |
| Ambient Temperature | -25...80 °C |
| Moving Temperature | -5...60 °C |
| Flexible Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >2 million |
| Drag-Chain Suitability | Yes |
| Switching Status | 16 x yellow LED |
| Operation Status | 1 x green LED |
| Items Supplied | 2 protective caps, 8 labels |
| Pack Quantity | 1 piece |
