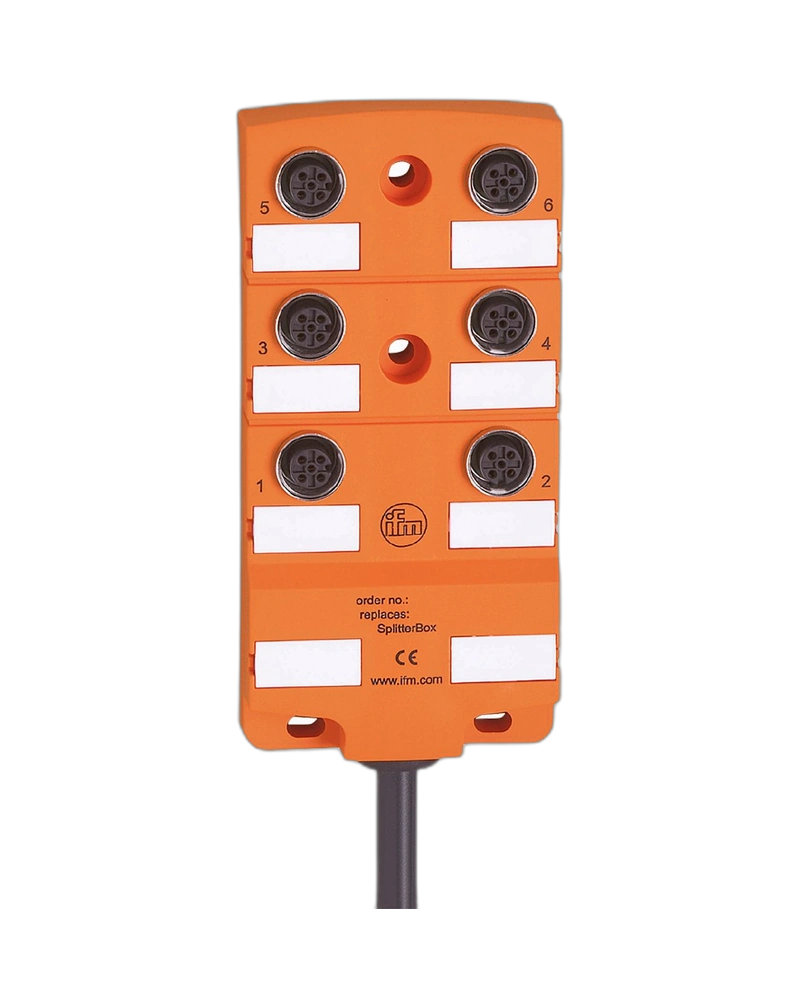

The IFM EBC035 is an 8-port splitter box designed for dependable sensor and actuator connections in industrial automation systems. It features eight M12 ports, PNP electrical design and a 10 m PUR cable. The robust PA housing provides IP67 and IP68 protection for demanding applications. Gold-plated contacts and clearly visible LEDs support reliable operation and easy status monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC035 provides eight M12 ports for connecting multiple field devices through one centralized splitter box. This arrangement helps simplify machine wiring and improves cable organization. It is suitable for systems where several sensors and actuators need to be connected close to the machine. The centralized design also supports easier inspection and maintenance.
The EBC035 uses a PNP electrical design with a 10 to 30 V DC operating range. Each module or connection can support up to 4 A, with a maximum total load of 12 A. This provides practical power and signal distribution for industrial field devices. It is suitable for common factory automation and machine-control applications.
The PA housing provides reliable protection in harsh industrial environments. The product is resistant to oils and coolants and is suitable for machine-tool applications. Its 10 m PUR cable supports dynamic machine installations and drag-chain applications. More than two million bending cycles are supported under specified conditions.
The EBC035 features eight yellow LEDs for switching-status indication and one green LED for operation. The clearly visible LEDs make it easier to monitor field connections during machine operation. This can help technicians identify connection problems during troubleshooting. Visual indication also supports faster commissioning and maintenance.
8 M12 ports
PNP electrical design
10...30 V DC operation
4 A maximum current per port
12 A maximum total current
10 m PUR cable
Gold-plated contacts
IP67/IP68 protection
8 yellow switching LEDs
1 green operation LED
Drag-chain suitable
Oil and coolant resistant
Industrial automation
Factory automation
Machine tools
CNC equipment
Production machinery
Sensor and actuator systems
Moving machine applications
Coolant and lubricant environments
| Specification | Details |
|---|---|
| Product Code | EBC035 |
| Model | ZDO8H059MSS0010H11 |
| Product Type | Splitter Box |
| Number of Ports | 8 |
| Connector Type | M12 |
| Connector Coding | A-coded |
| Electrical Design | PNP |
| Operating Voltage | 10...30 V DC |
| Protection Class | II |
| Maximum Current per Port | 4 A |
| Maximum Total Current | 12 A |
| Protection Rating | IP67 / IP68 |
| Housing Material | PA |
| Mounting Type | Backplane mounting |
| Dimensions | 127 x 54 x 22 mm |
| Weight | 1174.5 g |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Diameter | 8.2 mm |
| Cable Colour | Black |
| Cable Cores | 8 x 0.34 mm² + 3 x 0.75 mm² |
| Cable Construction | Halogen-free |
| Contacts | Gold-plated |
| Locking Nut | Brass, nickel-plated |
| Tightening Torque | 0.8...1.5 Nm |
| Ambient Temperature | -25...80 °C |
| Moving Temperature | -5...60 °C |
| Flexible Bending Radius | Min. 10 × cable diameter |
| Fixed Bending Radius | Min. 5 × cable diameter |
| Travel Speed | Max. 3 m/s under specified conditions |
| Maximum Acceleration | 5 m/s² |
| Torsional Strain | ±30°/m |
| Bending Cycles | >2 million |
| Drag-Chain Suitability | Yes |
| Switching Status | 8 x yellow LED |
| Operation Status | 1 x green LED |
| Items Supplied | 2 protective caps, 8 labels |
| Pack Quantity | 1 piece |
