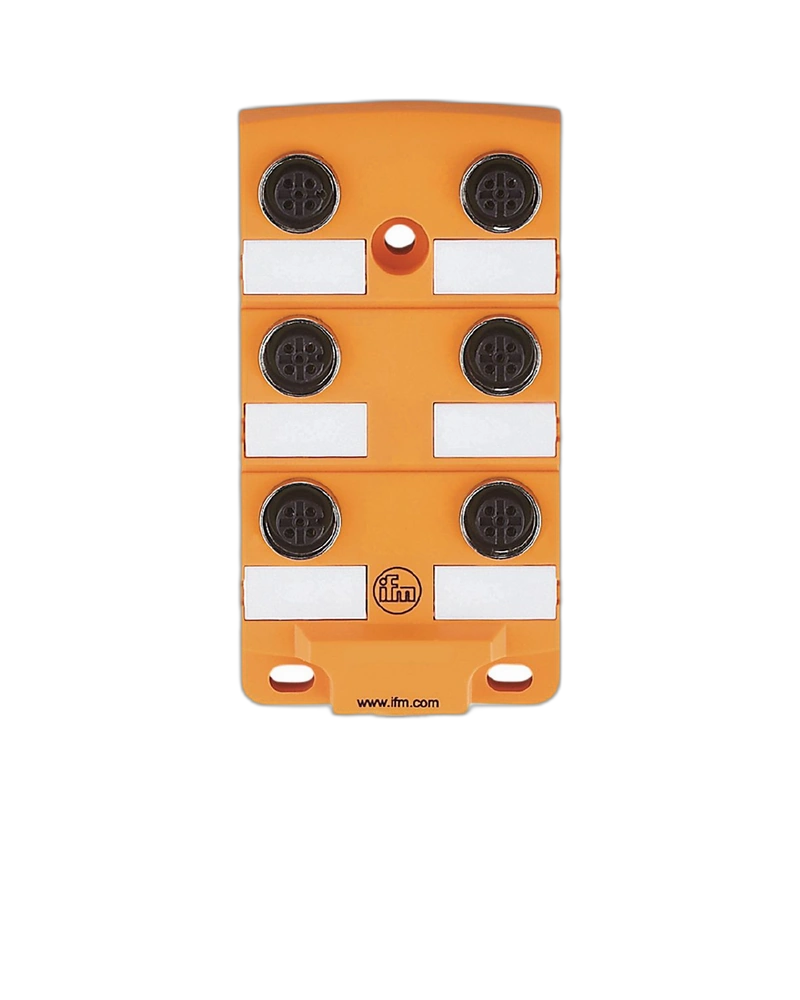

The IFM EBC032 is a 6-port splitter box designed for reliable sensor and actuator connections in industrial automation systems. It features PNP electrical design, six M12 ports and a 10 m PUR cable. The robust PA housing provides IP67 and IP68 protection in demanding environments. Multiple LED indicators provide clear switching and operating status for easier monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC032 provides six M12 connection ports for connecting multiple field devices to a centralized wiring point. This helps reduce cable routing complexity and supports a cleaner machine installation. The compact housing allows the splitter box to be installed close to sensors and actuators. It is suitable for factory automation and industrial machinery.
The EBC032 uses a PNP electrical design and operates from a 10 to 30 V DC supply. Each port supports up to 4 A current, with a maximum total current load of 12 A. This makes it suitable for common industrial sensor and actuator applications. The standardized M12 interface supports practical field-device integration.
The robust PA housing is designed for demanding industrial environments. IP67 and IP68 protection helps protect the electrical connections against dust and water. The unit is also suitable for applications involving machine movement, oils and coolants. Its construction supports reliable operation in production environments.
The EBC032 provides twelve yellow switching-status LEDs and one green power LED. Multiple status indicators make it easier to identify individual connection conditions. This can simplify commissioning, inspection and troubleshooting. The centralized connection layout further supports efficient maintenance.
6 M12 ports
PNP electrical design
10...30 V DC operation
4 A maximum current per port
12 A maximum total current
10 m PUR cable
Gold-plated contacts
IP67/IP68 protection
12 yellow switching LEDs
1 green operation LED
Drag-chain suitable
Halogen-free cable
Industrial automation
Factory automation
Machine tools
CNC machinery
Sensor connection systems
Actuator connection systems
Production and assembly equipment
Moving machine applications
| Specification | Details |
|---|---|
| Product Code | EBC032 |
| Model | ZDO6H05DMSS0010H15 |
| Product Type | Splitter Box |
| Number of Ports | 6 |
| Connector Type | M12 |
| Connector Coding | A-coded |
| Electrical Design | PNP |
| Operating Voltage | 10...30 V DC |
| Protection Class | II |
| Maximum Current per Port | 4 A |
| Maximum Total Current | 12 A |
| Protection Rating | IP67 / IP68 |
| Housing Material | PA |
| Mounting | Backplane mounting |
| Dimensions | 100 x 54 x 22 mm |
| Weight | 1340 g |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Diameter | 8.8 mm |
| Cable Colour | Black |
| Cable Cores | 12 x 0.34 mm² + 3 x 1.0 mm² |
| Cable Construction | Halogen-free |
| Contacts | Gold-plated |
| Locking Nut | Brass, nickel-plated |
| Tightening Torque | 0.8...1.5 Nm |
| Ambient Temperature | -25...80 °C |
| Moving Temperature | -5...60 °C |
| Flexible Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >2 million |
| Drag-Chain Suitability | Yes |
| Switching Status | 12 x yellow LED |
| Operation Status | 1 x green LED |
| Items Supplied | 2 protective caps, 6 labels |
| Pack Quantity | 1 piece |
