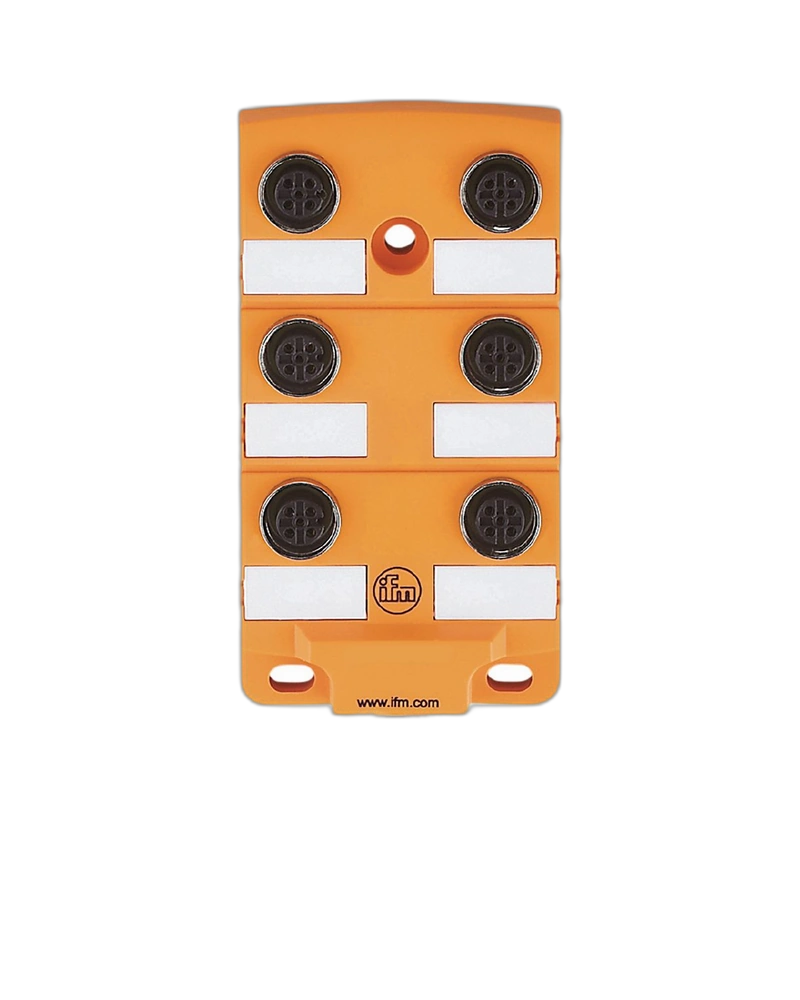

The IFM EBC031 is a 6-port industrial splitter box designed for dependable sensor and actuator connectivity. It features six M12 ports, a 10 m PUR cable and PNP electrical design. The robust PA housing provides IP67 and IP68 protection for demanding automation environments. Gold-plated contacts and LED indication support reliable operation and convenient maintenance.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC031 provides six M12 connection ports for centralized connection of industrial sensors and actuators. This helps simplify wiring and provides a structured connection point near the machine. Centralized field connections can reduce installation complexity and improve cable organization. It is suitable for automation equipment with multiple connected devices.
The PNP electrical design makes the EBC031 suitable for common industrial sensor and control applications. It supports an operating voltage range of 10 to 30 V DC. Each connection can handle a maximum current load of 4 A, with a total current capacity of 12 A. This provides reliable power and signal distribution for connected field devices.
The PA housing is designed for demanding factory and machine environments. IP67 and IP68 protection helps protect the splitter box from dust and water exposure. The construction is suitable for applications involving oils, coolants, shock and vibration. This makes it practical for machine tools and production equipment.
The EBC031 includes six yellow LEDs for switching-status indication and one green LED for power indication. This allows technicians to monitor the connected circuits visually during operation. Clear status indication can make commissioning and troubleshooting easier. The centralized layout also simplifies inspection and maintenance.
6 M12 connection ports
PNP electrical design
10...30 V DC operating voltage
4 A maximum current per port
12 A maximum total current
10 m PUR cable
Gold-plated contacts
IP67/IP68 protection
6 yellow switching LEDs
1 green operation LED
Drag-chain suitable
High bending-cycle capability
Industrial automation systems
Factory automation
Machine tools
CNC equipment
Sensor and actuator systems
Production machinery
Moving machine applications
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EBC031 |
| Model | ZDO6H057MSS0010H09 |
| Product Type | Splitter Box |
| Number of Ports | 6 |
| Connector Type | M12 |
| Connector Coding | A-coded |
| Electrical Design | PNP |
| Operating Voltage | 10...30 V DC |
| Protection Class | II |
| Maximum Current per Port | 4 A |
| Maximum Total Current | 12 A |
| Protection Rating | IP67 / IP68 |
| Housing Material | PA |
| Mounting Type | Backplane mounting |
| Dimensions | 100 x 54 x 22 mm |
| Weight | 1034 g |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Diameter | 7.8 mm |
| Cable Colour | Black |
| Cable Cores | 6 x 0.34 mm² + 3 x 1 mm² |
| Cable Construction | Halogen-free |
| Contacts | Gold-plated |
| Locking Nut | Brass, nickel-plated |
| Tightening Torque | 0.8...1.5 Nm |
| Ambient Temperature | -25...80 °C |
| Moving Temperature | -5...60 °C |
| Flexible Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >2 million |
| Drag-Chain Suitability | Yes |
| Switching Status | 6 x yellow LED |
| Operation Status | 1 x green LED |
| Items Supplied | 2 protective caps, 6 labels |
| Pack Quantity | 1 piece |
