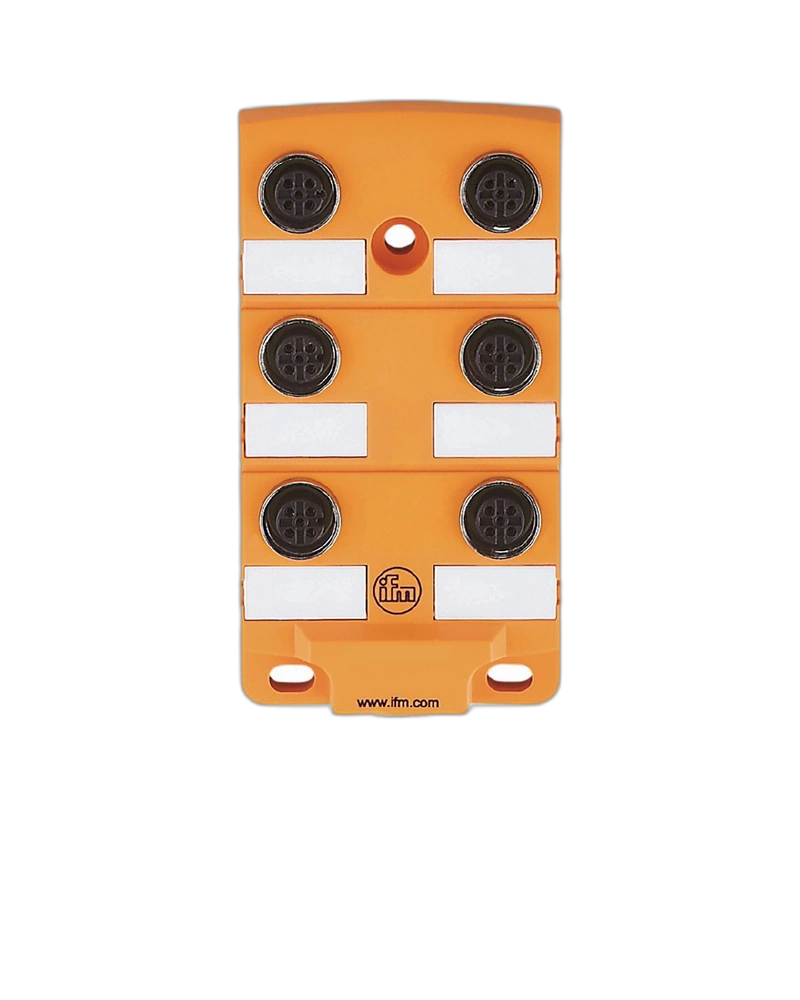

The IFM EBC030 is a 6-port splitter box designed for centralized sensor and actuator connectivity in industrial automation applications. It features six M12 ports and a 10 m PUR cable for flexible installation. The robust PA housing provides IP67 and IP68 protection for demanding machine environments. Gold-plated contacts support reliable connections and long-term electrical performance.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC030 provides six M12 connection points for connecting multiple sensors and actuators through a single organized unit. This centralized arrangement helps reduce complicated wiring and improves cable management. It allows field devices to be connected close to the machine instead of routing every cable directly to the control panel. The design is suitable for industrial automation and production equipment.
The robust PA housing is designed to withstand demanding industrial operating conditions. The splitter box is suitable for applications where dust, moisture, oils and coolants may be present. IP67 and IP68 protection provides additional protection for the electrical connection system. This makes the unit suitable for machine tools and factory automation environments.
The EBC030 includes a 10 m PUR cable that provides extended installation flexibility. The cable construction is designed for industrial applications where mechanical durability and repeated movement are important. Its drag-chain suitability allows use in machines with moving components. The specified bending radius should be maintained during installation.
Gold-plated contacts help maintain stable electrical connections between connected devices and the automation system. The M12 connectors provide a standardized and practical interface for field devices. The splitter box is designed for reliable sealing and robust operation. Its centralized configuration also helps simplify maintenance and troubleshooting.
6 M12 ports
10 m PUR cable
4 A maximum current per port
12 A maximum total current
IP67/IP68 protection
Gold-plated contacts
Robust PA housing
Halogen-free cable
Silicone-free construction
Drag-chain suitable
High bending-cycle capability
Backplane mounting
Industrial automation
Factory automation
Machine tools
CNC machinery
Production systems
Sensor and actuator wiring
Moving machine equipment
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EBC030 |
| Model | ZDO6H050MSS0010H15 |
| Product Type | Splitter Box |
| Number of Ports | 6 |
| Connector Type | M12 |
| Connector Coding | A-coded |
| Operating Voltage | <30 V DC |
| Protection Class | II |
| Maximum Current per Port | 4 A |
| Maximum Total Current | 12 A |
| Protection Rating | IP67 / IP68 |
| Housing Material | PA |
| Mounting | Backplane mounting |
| Dimensions | 100 x 54 x 22 mm |
| Weight | 1332 g |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Diameter | 8.8 mm |
| Cable Colour | Black |
| Cable Construction | Halogen-free |
| Cable Cores | 12 x 0.34 mm² + 3 x 1.0 mm² |
| Contacts | Gold-plated |
| Locking Nut | Brass, nickel-plated |
| Tightening Torque | 0.8...1.5 Nm |
| Ambient Temperature | -25...80 °C |
| Moving Temperature | -5...60 °C |
| Flexible Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >2 million |
| Torsional Strain | Max. 30°/m |
| Drag-Chain Suitability | Yes |
| Items Supplied | 2 protective caps, 6 labels |
| Pack Quantity | 1 piece |
