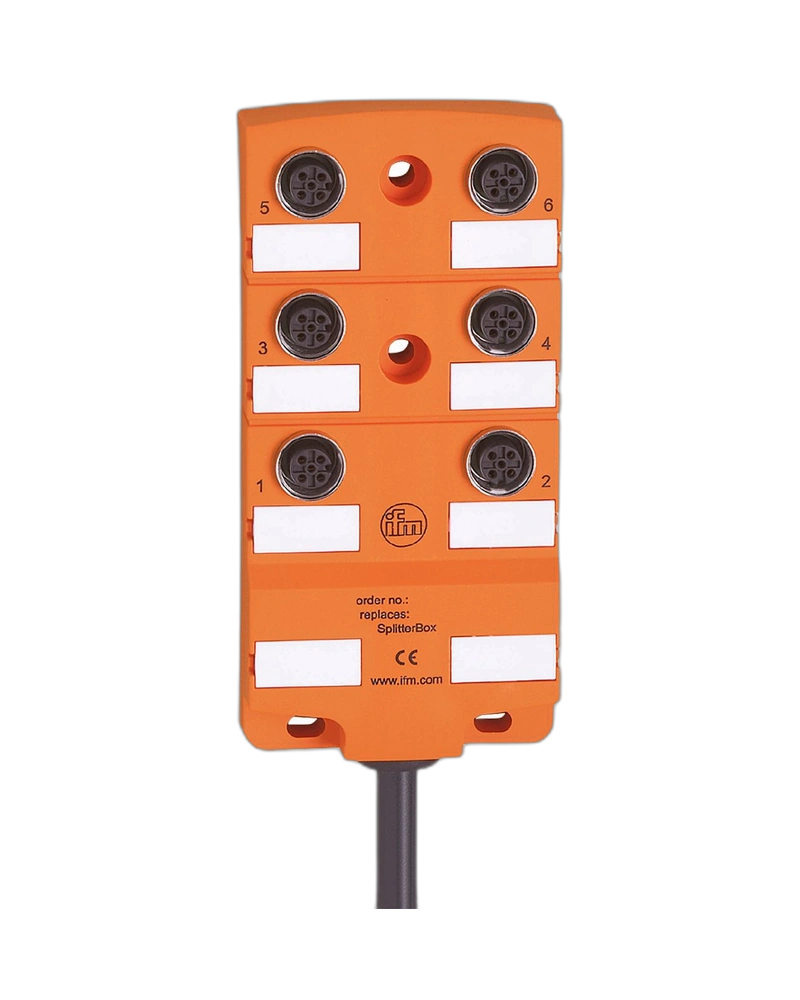

The IFM EBC029 is a 6-port splitter box designed for reliable sensor and actuator connections in industrial automation systems. It features six M12 connections and a 10 m PUR cable for flexible machine installation. The robust PA housing provides IP67 and IP68 protection for demanding industrial environments. Gold-plated contacts support stable electrical connections and dependable signal transmission.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC029 provides six M12 connection ports for connecting multiple sensors and actuators through a centralized field connection. This helps simplify machine wiring and reduces the need for individual cable routing to the control system. The organized connection arrangement improves accessibility during installation and maintenance. It is suitable for a wide range of industrial automation applications.
The splitter box features a durable PA housing designed for harsh industrial environments. Its robust construction provides resistance against mechanical stress, oils, coolants and regular machine vibration. The IP67 and IP68 protection ratings help protect the connection system against dust and water. This makes the product suitable for machine tools and factory automation.
The EBC029 is equipped with a 10 m PUR cable that provides extended connection distance between field devices and control equipment. PUR cable construction offers good mechanical durability for industrial applications. The cable is also suitable for dynamic installations where repeated movement may occur. Proper cable routing helps maintain reliable operation over long-term use.
Gold-plated contacts help provide reliable electrical connectivity and stable signal transmission. The M12 connection system provides a standardized interface for industrial sensors and actuators. Mechanical cable and connector features help maintain reliable sealing during installation. This centralized design can also make troubleshooting and maintenance more convenient.
6 M12 connection ports
10 m PUR cable
PNP-compatible industrial connection design
4 A maximum current per port
12 A maximum total current
IP67 and IP68 protection
Gold-plated contacts
Robust PA housing
Halogen-free construction
Silicone-free design
Drag-chain suitable
High shock and vibration resistance
Industrial automation systems
Factory automation machinery
Machine tools
CNC equipment
Sensor and actuator connections
Production and assembly machines
Moving machine applications
Coolant and lubricant environments
| Specification | Details |
|---|---|
| Product Code | EBC029 |
| Model | ZDO6H050MSS0010H09 |
| Product Type | Splitter Box |
| Number of Ports | 6 |
| Connector Type | M12 |
| Connector Coding | A-coded |
| Operating Voltage | <30 V DC |
| Protection Class | II |
| Maximum Current per Port | 4 A |
| Maximum Total Current | 12 A |
| Protection Rating | IP67 / IP68 |
| Housing Material | PA |
| Housing Design | Rectangular |
| Mounting Type | Backplane mounting |
| Dimensions | 100 x 54 x 22 mm |
| Cable Length | 10 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Diameter | 7.8 mm |
| Cable Construction | Halogen-free |
| Cable Cores | 6 x 0.34 mm² + 3 x 1 mm² |
| Contacts | Gold-plated |
| Locking Nut | Brass, nickel-plated |
| Tightening Torque | 0.8...1.5 Nm |
| Ambient Temperature | -25...80 °C |
| Moving Temperature | -5...60 °C |
| Flexible Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >2 million |
| Drag-Chain Suitability | Yes |
| Items Supplied | 2 protective caps, 6 labels |
| Pack Quantity | 1 piece |
| Application | Industrial automation |
