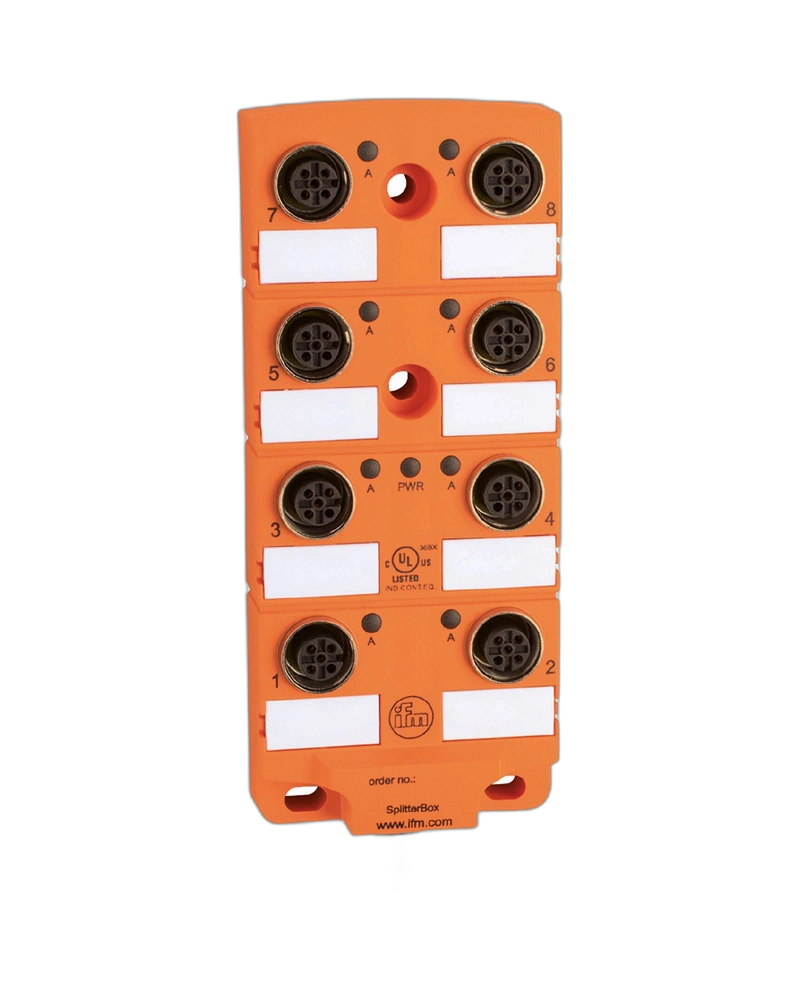

The IFM EBC024 is an 8-port splitter box designed for centralized sensor and actuator connectivity in industrial automation systems. It features eight M12 ports and a 5 m PUR cable for convenient machine installation. The robust PA housing provides reliable protection in demanding industrial environments. Gold-plated contacts and LED indication support dependable electrical performance.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC024 provides eight M12 ports for connecting multiple sensors and actuators through a single centralized connection point. This helps simplify machine wiring and reduces unnecessary cable routing. The organized connection structure makes field-device installation easier to manage. It is suitable for automation systems with multiple connected devices.
The splitter box features a durable PA housing designed for demanding industrial environments. Its IP-rated construction helps protect the electrical connections against dust and water. The product is suitable for applications where oils and coolants may be present. This makes it a practical solution for machine tools and factory automation.
A 5 m PUR cable provides convenient reach for connecting the splitter box to the control system. The cable is halogen-free and suitable for dynamic applications. Drag-chain suitability allows the product to be installed in machinery where cable movement occurs. The specified bending radius should be maintained during installation.
The EBC024 includes 16 yellow LEDs for switching-status indication and one green LED for operation. This provides clear visual feedback from the connected circuits. LED indication can simplify commissioning and troubleshooting. Maintenance personnel can identify operating conditions quickly without complex testing.
8 M12 ports
PNP electrical design
10...30 V DC operation
4 A per port
12 A total current
5 m PUR cable
Gold-plated contacts
IP67/IP68 protection
16 yellow status LEDs
1 green operation LED
Drag-chain suitable
Robust PA housing
Industrial automation
Factory automation
Machine tools
CNC machinery
Sensor and actuator connections
Production systems
Coolant and lubricant environments
| Specification | Details |
|---|---|
| Product Code | EBC024 |
| Model | ZDO8H05HMSS0005H19 |
| Product Type | Splitter Box |
| Number of Ports | 8 |
| Connector Type | M12 |
| Connector Coding | A-coded |
| Electrical Design | PNP |
| Operating Voltage | 10...30 V DC |
| Maximum Current per Port | 4 A |
| Maximum Total Current | 12 A |
| Protection Rating | IP65 / IP67 / IP68 |
| Housing Material | PA |
| Housing Design | Rectangular |
| Mounting | Backplane mounting |
| Dimensions | 127 x 54 x 22 mm |
| Weight | 899 g |
| Cable Length | 5 m |
| Cable Material | PUR |
| Cable Diameter | 9.7 mm |
| Cable Construction | Halogen-free |
| Cable Core | 16 × 0.34 mm² + 3 × 1.0 mm² |
| Contacts | 5, gold-plated |
| Locking Nut | Brass, nickel-plated |
| Tightening Torque | 0.8...1.5 Nm |
| Ambient Temperature | -25...80 °C |
| Moving Temperature | -5...60 °C |
| Flexible Bending Radius | Min. 10 × cable diameter |
| Bending Cycles | >2 million |
| Drag-Chain Suitability | Yes |
| Switching Status | 16 × yellow LED |
| Operation Status | 1 × green LED |
| Supplied Accessories | 2 protective caps, 8 labels |
| Pack Quantity | 1 piece |
