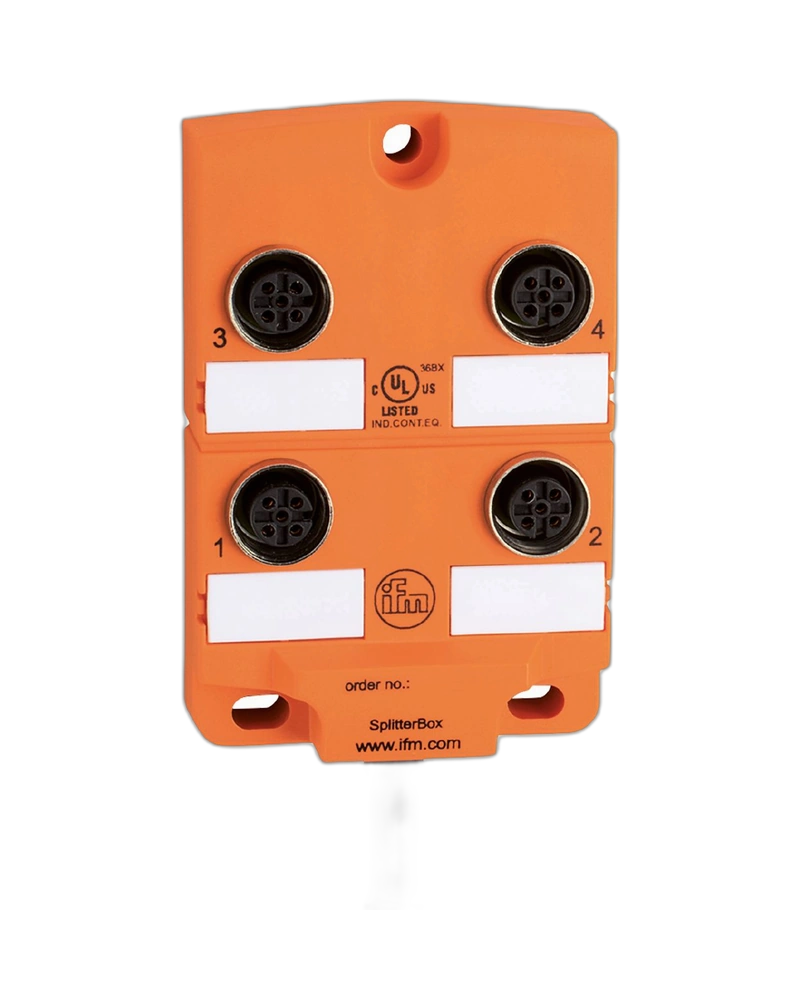

The IFM EBC016 is a 4-port industrial splitter box designed for organized sensor and actuator connectivity. It features M12 connectors, gold-plated contacts and a robust PA housing. The splitter box supports drag-chain applications and provides IP67/IP68 protection. It is suitable for demanding factory automation and machine-tool environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC016 provides four M12 ports for centralized field-device connections. This helps simplify machine wiring and provides a structured connection point for sensors and actuators.
Its robust construction is designed for demanding industrial environments. Resistance to oils and coolants makes it suitable for machine-tool and factory automation applications.
Drag-chain compatibility allows the splitter box to be installed in machines where cables experience repeated movement. It supports more than two million bending cycles under specified conditions.
Gold-plated contacts and M12 connectors provide dependable electrical connections. LED indicators make switching and operating status easier to monitor.
4 M12 ports
PNP electrical design
10...30 V DC operating voltage
4 A per port
12 A total current
IP67/IP68 protection
Gold-plated contacts
Silicone-free and halogen-free
Drag-chain compatible
High bending-cycle capability
Industrial automation
Machine tools
Factory automation
CNC machines
Moving automation equipment
Sensor and actuator wiring
| Specification | Details |
|---|---|
| Product Code | EBC016 |
| Model | ZDO4H059MSS0005H11 |
| Product Type | Splitter Box |
| Number of Ports | 4 |
| Connector Type | M12 |
| Operating Voltage | 10...30 V DC |
| Max. Current per Port | 4 A |
| Max. Total Current | 12 A |
| Electrical Design | PNP |
| Protection | IP67 / IP68 |
| Ambient Temperature | -25 to +80 °C |
| Moving Temperature | -5 to +60 °C |
| Dimensions | 82 x 54 x 22 mm |
| Weight | 631 g |
| Housing | PA |
| Contacts | Gold-plated |
| Cable | 5 m PUR, halogen-free |
| Mounting | Backplane mounting |
