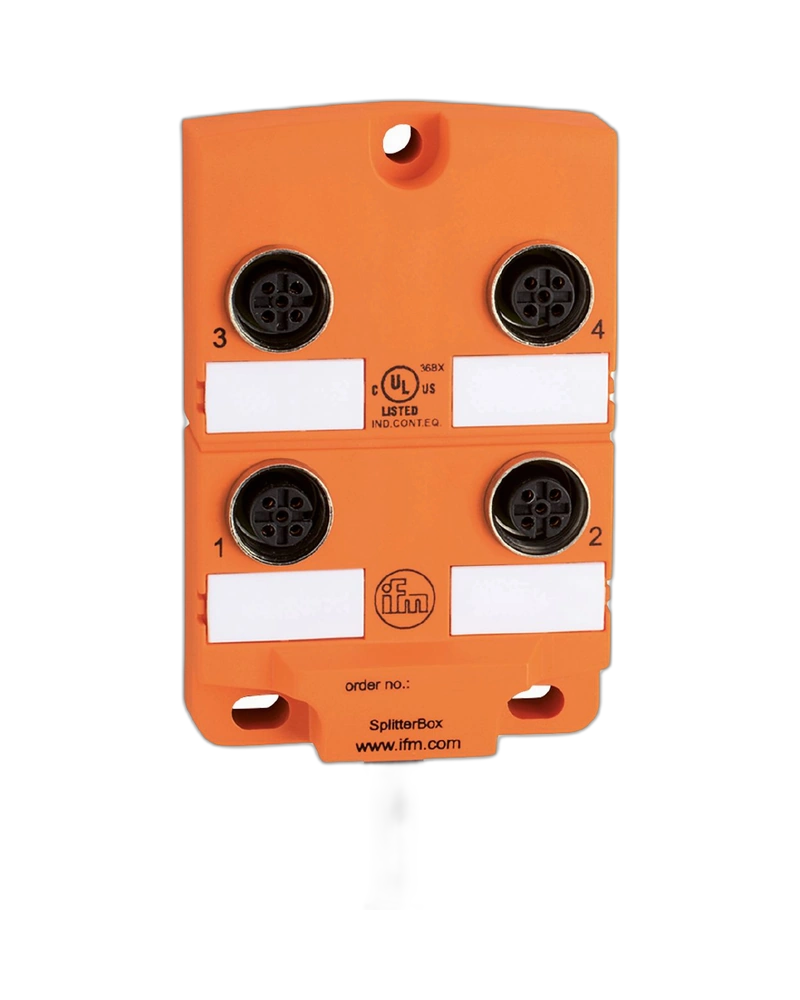

The IFM EBC015 is a 4-port splitter box designed for dependable field-device connectivity in industrial automation systems. It provides M12 connections with gold-plated contacts and a PNP electrical design. The unit is suitable for drag-chain applications and demanding machine environments. Its robust construction provides reliable protection against oils, coolants, dust and water.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC015 provides four M12 ports for connecting multiple sensors and actuators. Centralized wiring helps reduce installation complexity and keeps field connections organized.
The unit is designed for drag-chain applications and supports repeated bending cycles. This makes it suitable for automated machines with moving components.
The splitter box uses a robust PA housing with IP67/IP68 protection. It is designed for reliable use in industrial environments where exposure to oils and coolants may occur.
Gold-plated contacts provide dependable electrical connectivity. The PNP design makes the splitter box suitable for common industrial sensor applications.
4 M12 ports
10...30 V DC operating voltage
4 A per port
12 A total current
PNP electrical design
IP67/IP68 protection
Gold-plated contacts
Halogen-free construction
Drag-chain suitable
Shock and vibration resistant
Industrial automation
Factory automation
Machine tools
CNC equipment
Moving automation systems
Sensor and actuator connection
| Specification | Details |
|---|---|
| Product Code | EBC015 |
| Model | ZDO4H055MSS0005H07 |
| Product Type | Splitter Box |
| Number of Ports | 4 |
| Connector Type | M12 |
| Operating Voltage | 10...30 V DC |
| Max. Current per Port | 4 A |
| Max. Total Current | 12 A |
| Electrical Design | PNP |
| Protection | IP67 / IP68 |
| Ambient Temperature | -25 to +80 °C |
| Moving Temperature | -5 to +60 °C |
| Dimensions | 82 x 54 x 22 mm |
| Weight | 540 g |
| Housing Material | PA |
| Cable | 5 m PUR, halogen-free |
| Contacts | Gold-plated |
