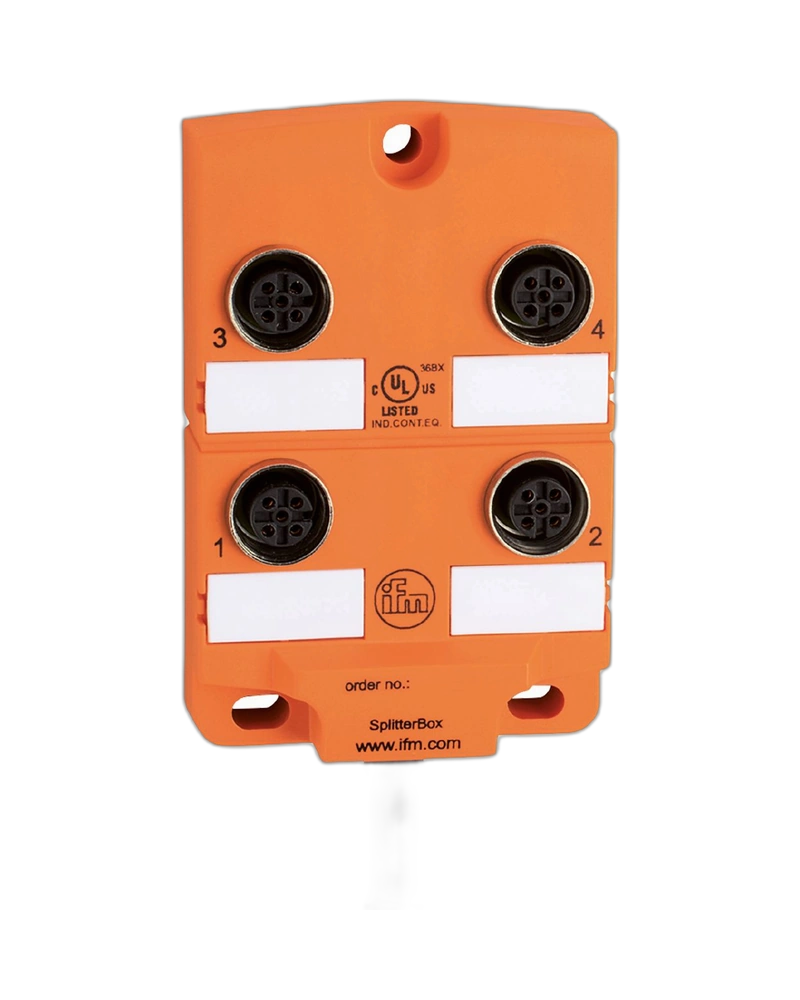

The IFM EBC014 is a compact 4-port splitter box developed for industrial sensor and actuator connections. It features M12 connectors, gold-plated contacts and a durable PA housing. Its IP67/IP68 protection makes it suitable for demanding automation environments. Drag-chain compatibility supports installations involving repeated machine movement.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC014 provides four M12 connection ports for centralized sensor and actuator wiring. Its compact arrangement helps simplify connections in automated machinery.
The splitter box is suitable for drag-chain applications and supports repeated bending cycles. This makes it useful for machines with moving cables and dynamic installation requirements.
The unit is designed to operate in harsh industrial conditions with protection against dust and water. Its robust housing also supports reliable performance around oils and coolants.
LED indicators provide quick visual information about switching and operation. This helps simplify maintenance and troubleshooting.
4 M12 ports
PNP electrical design
<30 V DC operating voltage
4 A per port
12 A total current load
IP67/IP68 protection
Gold-plated contacts
Halogen-free construction
Drag-chain compatible
Shock and vibration resistant
Industrial automation
Machine tools
CNC machinery
Factory automation
Moving machine systems
Sensor and actuator wiring
| Specification | Details |
|---|---|
| Product Code | EBC014 |
| Model | ZDO4H050MSS0005H11 |
| Product Type | Splitter Box |
| Number of Ports | 4 |
| Connector Type | M12 |
| Operating Voltage | <30 V DC |
| Max. Current per Port | 4 A |
| Max. Total Current | 12 A |
| Electrical Design | PNP |
| Protection | IP67 / IP68 |
| Ambient Temperature | -25 to +80 °C |
| Moving Temperature | -5 to +60 °C |
| Dimensions | 82 x 54 x 22 mm |
| Weight | 506 g |
| Housing | PA |
| Contacts | Gold-plated |
| Cable | 5 m PUR, halogen-free |
| Mounting | Backplane mounting |
