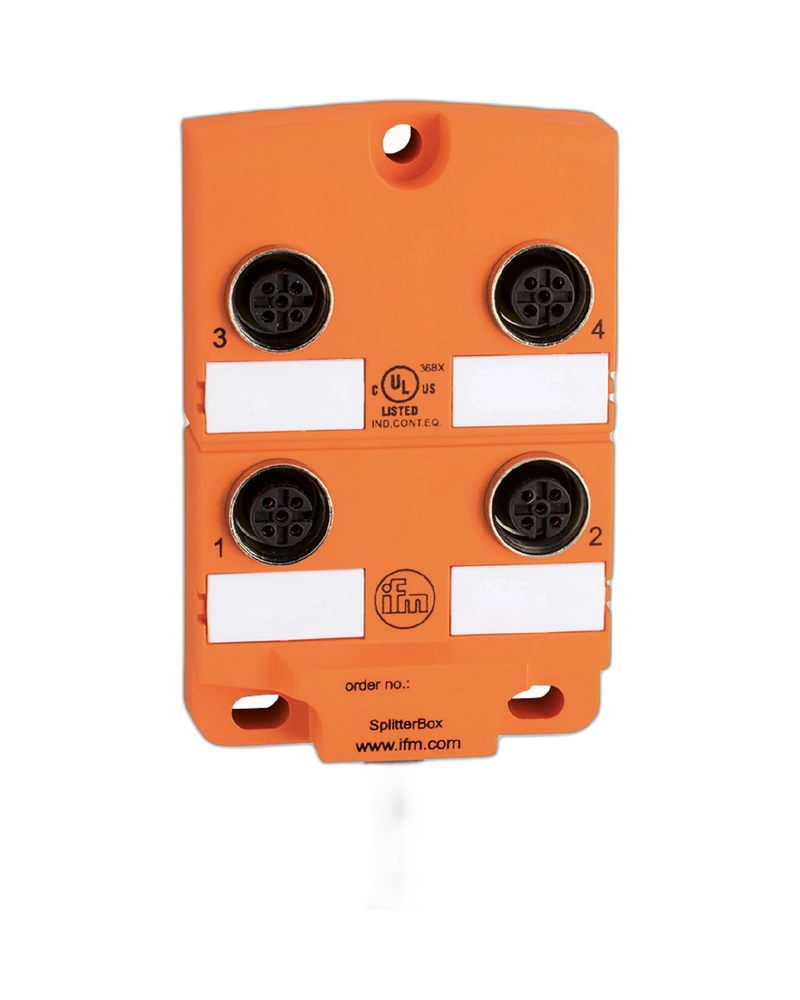

The IFM EBC013 is a 4-port splitter box designed for reliable sensor and actuator connectivity in industrial automation. It features M12 connections and a durable PA housing for demanding machine environments. The unit supports flexible cable-chain applications and provides IP67/IP68 protection. Gold-plated contacts help ensure dependable electrical connections.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC013 provides four M12 ports in a compact housing. This makes it suitable for applications where a limited number of sensors need to be connected in a centralized arrangement.
The splitter box is suitable for drag-chain applications and supports a minimum bending radius of 10 times the cable diameter. This makes it practical for moving machine components.
IP67 and IP68 protection helps protect the connection system against dust and water exposure. The robust PA housing is suitable for industrial installations.
Gold-plated M12 contacts help provide reliable electrical performance. The PNP design supports common industrial sensor and automation applications.
4 M12 ports
PNP electrical design
<30 V DC operating voltage
4 A maximum current per port
12 A maximum total current
Gold-plated contacts
Silicone-free and halogen-free
IP67/IP68 protection
Drag-chain suitable
Backplane mounting
Factory automation
Industrial machinery
Moving machine components
Sensor connection systems
Machine tools
Production and assembly equipment
| Specification | Details |
|---|---|
| Product Code | EBC013 |
| Model | ZDO4H050MSS0005H07 |
| Product Type | Splitter Box |
| Number of Ports | 4 |
| Connector Type | M12 |
| Operating Voltage | <30 V DC |
| Max. Current per Port | 4 A |
| Max. Total Current | 12 A |
| Electrical Design | PNP |
| Protection | IP67 / IP68 |
| Ambient Temperature | -25 to +80 °C |
| Moving Temperature | -5 to +60 °C |
| Dimensions | 82 x 54 x 22 mm |
| Weight | 537 g |
| Housing Material | PA |
| Cable | 5 m PUR, halogen-free |
| Contacts | Gold-plated |
| Mounting | Backplane mounting |
