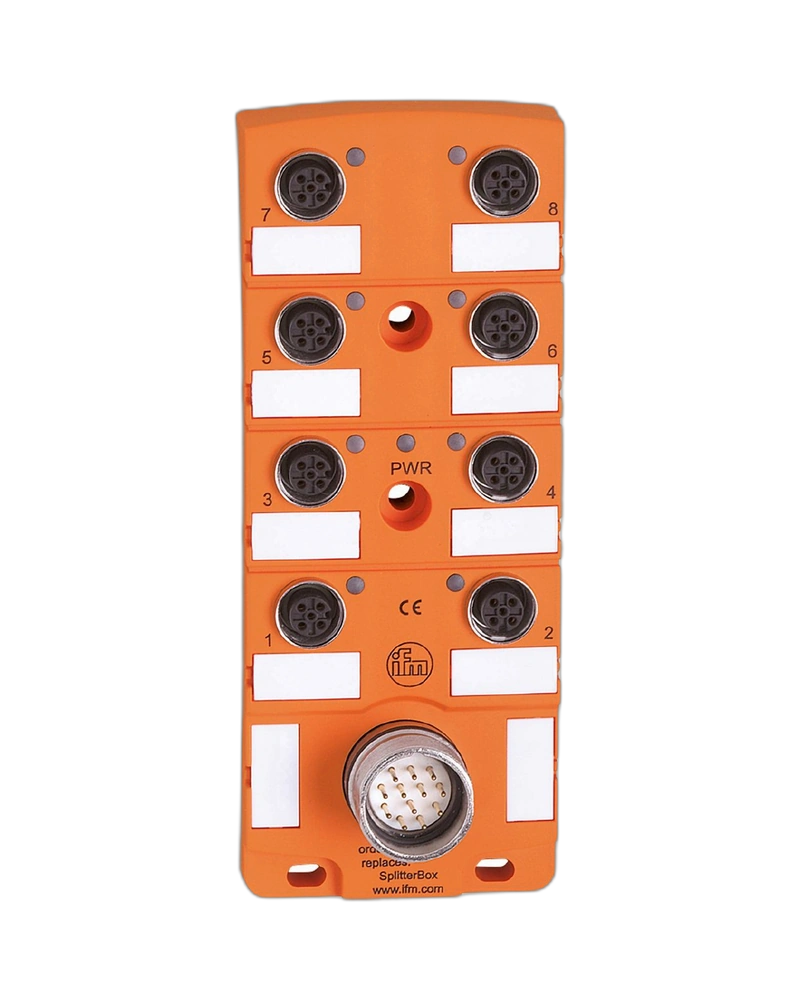

The IFM EBC012 is an 8-port industrial splitter box designed for centralized sensor and actuator connections. It features M12 ports with gold-plated contacts and a central M23 connection. The unit is suitable for factory automation, machine tools and applications involving coolants and lubricants. Its robust housing and IP67 protection support reliable industrial operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC012 provides eight M12 connection points for efficient connection of field devices. This centralized configuration helps simplify machine wiring and supports organized installation.
The unit is designed for industrial and factory automation applications. Its robust construction provides dependable operation where oils, coolants and mechanical stresses are present.
Integrated LED indicators provide visual information about switching status and operation. This allows technicians to quickly identify connection and operating conditions.
The splitter box provides IP67 protection and reliable sealing for industrial environments. Gold-plated contacts further support stable electrical connectivity.
8 M12 ports
1 x M23 central connection
10...30 V DC operating voltage
4 A per port
10 A total current load
PNP electrical design
IP67 protection
Gold-plated contacts
Oil and coolant resistant
16 yellow switching-status LEDs
1 green operation LED
Industrial automation
Factory automation
Machine tools
Sensor and actuator connections
Coolant and lubricant systems
Production machinery
| Specification | Details |
|---|---|
| Product Code | EBC012 |
| Model | ZDO8H05HMSS0000-00STAK190MSS |
| Product Type | Splitter Box |
| Number of Ports | 8 |
| Connector Type | M12 |
| Main Connection | 1 x M23 |
| Operating Voltage | 10...30 V DC |
| Max. Current per Port | 4 A |
| Max. Total Current | 10 A |
| Electrical Design | PNP |
| Protection Rating | IP67 |
| Ambient Temperature | -25 to +80 °C |
| Dimensions | 152 x 60 x 33 mm |
| Weight | 306 g |
| Housing | PA |
| Contacts | Gold-plated |
| LED Indication | 16 yellow + 1 green |
