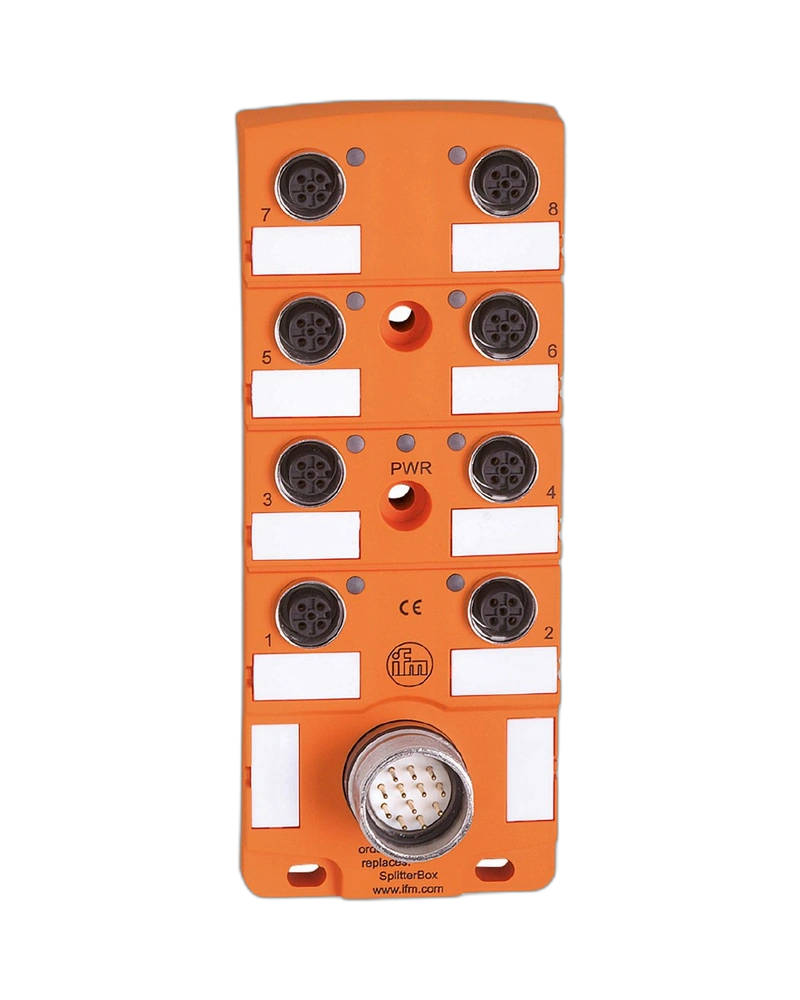

The IFM EBC011 is an 8-port splitter box designed to simplify sensor and actuator wiring in industrial automation systems. It provides centralized connectivity through M12 ports and an M23 main connection. The unit is resistant to oils and coolants and is designed for demanding machine environments. Its robust construction supports reliable signal distribution and long-term operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC011 brings multiple sensor connections together in one centralized unit. This helps create a structured wiring layout and reduces cable complexity around automated machinery.
The splitter box uses a robust housing suitable for industrial environments. It is designed to withstand exposure to oils, coolants and mechanical stresses commonly found around machine tools.
Gold-plated contacts support dependable signal transmission and stable electrical connections. The M12 connection system makes field-device installation straightforward.
The compact design allows the splitter box to be positioned close to connected sensors and actuators. This can simplify installation, inspection and maintenance operations.
8 M12 ports
1 x M23 main connection
10...30 V DC operating voltage
4 A maximum current per port
10 A maximum total current
PNP electrical design
Gold-plated contacts
IP67 protection
Oil and coolant resistance
Industrial automation
Factory automation systems
Machine tools
CNC equipment
Sensor and actuator wiring
Coolant and lubricant environments
| Specification | Details |
|---|---|
| Product Code | EBC011 |
| Model | ZDO8H050MSS0000-00STAK190MSS |
| Product Type | Splitter Box |
| Number of Ports | 8 |
| Connector Type | M12 |
| Main Connection | 1 x M23 |
| Operating Voltage | <30 V DC / Class 2 |
| Max. Current per Port | 4 A |
| Max. Total Current | 10 A |
| Electrical Design | PNP |
| Protection | IP67 |
| Ambient Temperature | -25 to +80 °C |
| Housing Material | PA |
| Contacts | Gold-plated |
| Mounting | Backplane mounting |
| Weight | Approx. 303.5 g |
