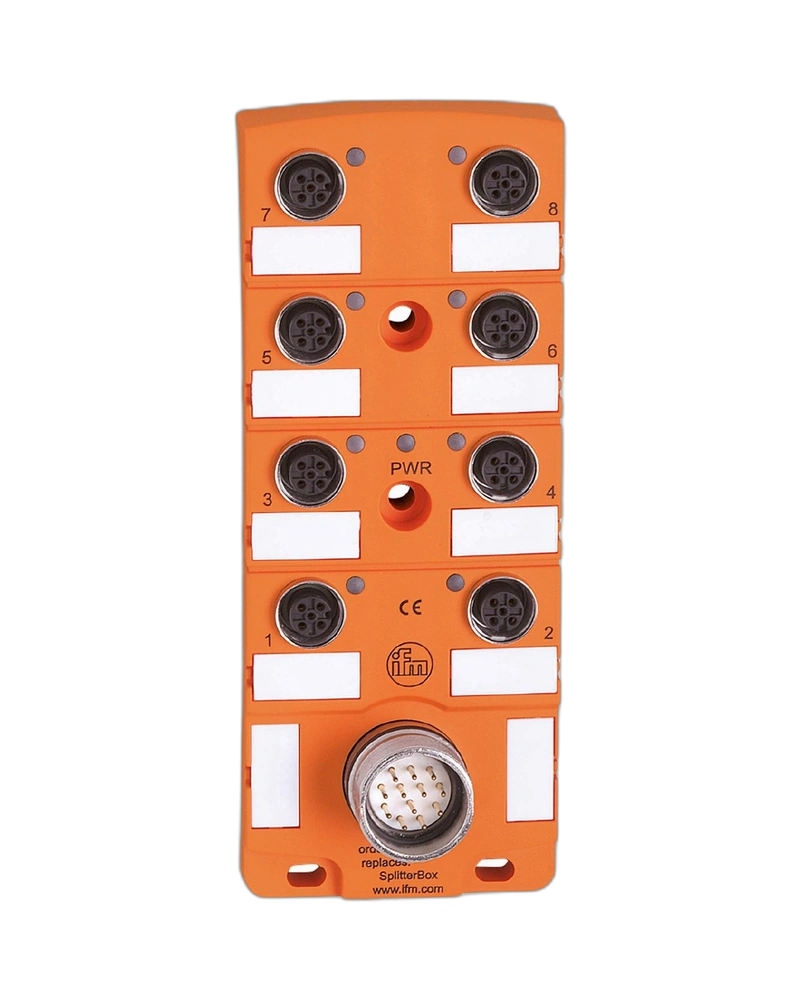

The IFM EBC010 is an 8-port splitter box developed for efficient sensor and actuator connectivity in industrial automation. It combines M12 field connections with a central connection for simplified machine wiring. The unit is designed for use in factory automation, machine tools and environments containing oils and coolants. Its robust construction supports reliable operation under demanding conditions.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC010 allows multiple field devices to be connected through a single organized wiring point. This helps reduce cable complexity and provides a cleaner machine installation.
The robust housing is suitable for harsh industrial environments where exposure to mechanical stress, oils and coolants can occur. The design supports dependable operation in factory automation applications.
Gold-plated contacts help maintain stable electrical connectivity and reduce connection-related problems. The M12 connection system provides standardized and convenient field-device interfacing.
The centralized connection arrangement makes sensor wiring easier to identify and maintain. It can help technicians perform inspection and troubleshooting more efficiently.
8 M12 connection ports
PNP electrical design
10 to 30 V DC operating voltage
Oil and coolant resistant
Gold-plated contacts
Robust industrial housing
IP67 protection
Clearly visible LED indication
Suitable for machine-tool applications
Factory automation
Industrial machinery
Machine tools
Sensor connection systems
Coolant and lubricant applications
Production machinery
| Specification | Details |
|---|---|
| Product Code | EBC010 |
| Model | ZDO8H059MSS0000-00STAK120MSS |
| Product Type | Splitter Box |
| Number of Ports | 8 |
| Connector Type | M12 |
| Electrical Design | PNP |
| Operating Voltage | 10...30 V DC |
| Max. Current per Port | 4 A |
| Max. Total Current | 12 A |
| Ambient Temperature | -25 to +80 °C |
| Housing | Robust PA housing |
| Contacts | Gold-plated |
| Special Features | Silicone-free, oil/coolant resistant |
| Application | Factory automation, machine tools |
