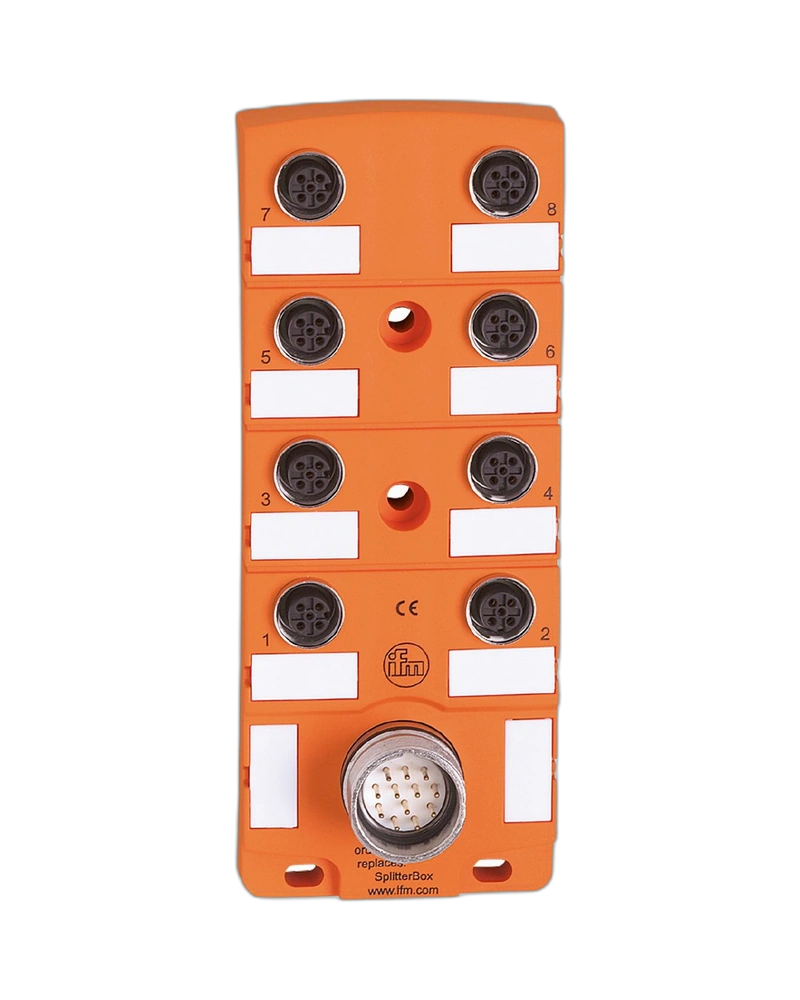

The IFM EBC009 is an 8-port splitter box designed for reliable sensor and actuator connections in industrial automation systems. It provides organized signal distribution through M12 connections and a central M23 connection. The robust PA housing offers dependable performance in demanding industrial environments. Its oil and coolant resistance makes it suitable for machine tools and factory automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC009 provides multiple M12 connection points for connecting sensors and field devices to a central control system. This arrangement simplifies machine wiring and reduces the need for complicated individual cable routing.
The splitter box features a durable PA housing designed for demanding industrial environments. Its construction provides resistance against oils, coolants, shock and vibration during regular machine operation.
Gold-plated contacts help provide reliable electrical connections and long service performance. The M23 connection provides a practical interface between the splitter box and the main control wiring.
The compact splitter-box design supports organized installation close to field devices. Clearly structured connections make wiring, inspection and maintenance easier in automation panels and machinery.
8 M12 ports for multiple field-device connections
Reliable signal distribution for industrial automation
Oil and coolant resistant construction
Gold-plated contacts for dependable connectivity
Robust housing for harsh industrial environments
IP67 protection for demanding installation conditions
High shock and vibration resistance
Backplane mounting for convenient installation
Industrial automation systems
Factory automation equipment
Machine tools and CNC machinery
Sensor and actuator connection systems
Coolant and lubricant environments
Production and assembly machinery
| Specification | Details |
|---|---|
| Product Code | EBC009 |
| Model | ZDO8H050MSS0000-00STAK120MSS |
| Product Type | Splitter Box |
| Number of Ports | 8 |
| Connector Type | M12 |
| Main Connection | 1 x M23 |
| Operating Voltage | <30 AC/DC |
| Max. Current per Port | 4 A |
| Max. Total Current | 12 A |
| Housing Material | PA |
| Protection Rating | IP67 |
| Ambient Temperature | -25 to +80 °C |
| Mounting | Backplane mounting |
| Contacts | Gold-plated |
| Weight | 303.5 g |
| Dimensions | 33 x 60 x 152 mm |
| Special Features | Silicone-free, gold-plated contacts |
