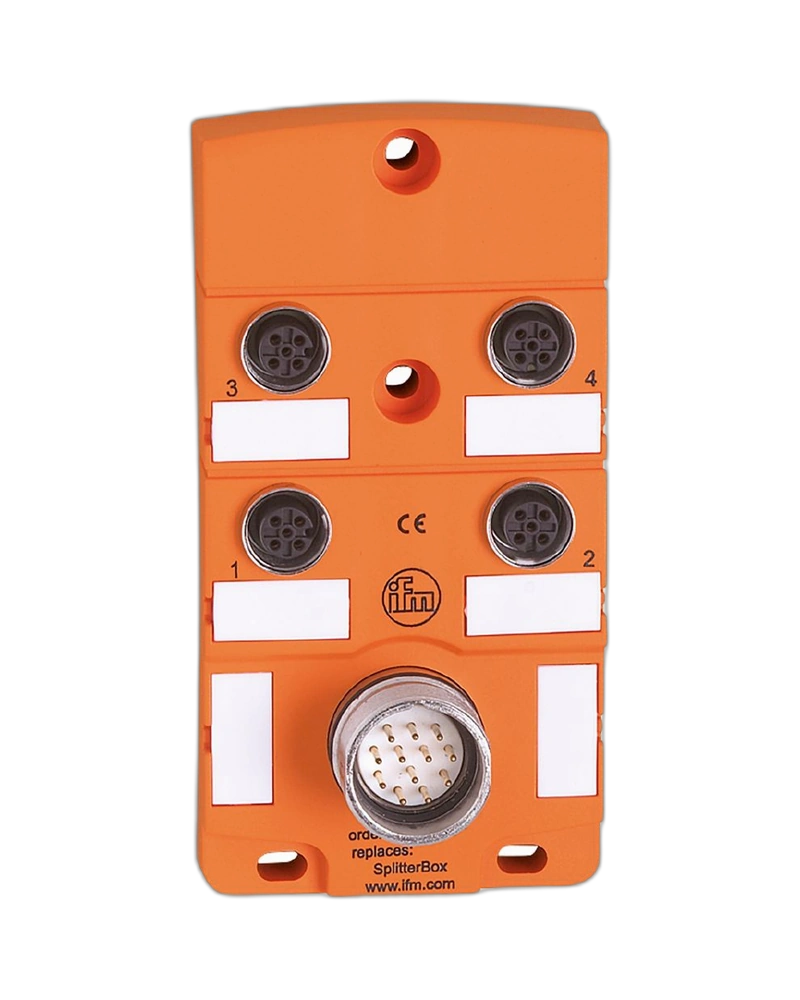

The IFM EBC007 is a 6-port splitter box designed for reliable decentralized wiring in industrial automation systems. It provides six M12 connection ports and a central M23 connection for organized sensor and actuator integration. The robust PA housing provides IP67 protection for demanding industrial applications. Its silicone-free construction and gold-plated contacts support reliable performance in machine tools and factory automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC007 provides six M12 ports for connecting multiple field devices to a common decentralized wiring point. This reduces the need for multiple individual cable runs to the control cabinet. The central M23 connection provides the main interface to the machine wiring. The configuration supports organized and efficient installation.
The unit operates below 30 V DC and supports up to 4 A per module or slot. The total current load can reach up to 12 A. Gold-plated contacts support stable electrical connectivity. The PNP electrical design is suitable for compatible industrial sensors and actuators.
The EBC007 uses a PA housing and is designed for harsh industrial environments. Its silicone-free construction is suitable for applications where silicone-free components are preferred. The robust enclosure supports resistance to mechanical stress and vibration. This makes it suitable for machine tools and production equipment.
The splitter box provides IP67 protection and operates between -25 and 80 °C. The design incorporates reliable sealing for industrial applications. Its M12 and M23 connections provide standardized interfaces for machine wiring. The unit is suitable for applications involving coolants and lubricants.
6-port splitter box
6 × M12 connections
1 × M23 main connection
PNP electrical design
Gold-plated contacts
PA housing
Silicone-free construction
IP67 protection
Industrial-grade connection system
Suitable for machine tools
Factory automation
Machine tools
Industrial machinery
Sensor connections
Actuator connections
Coolant environments
Lubricant environments
Production automation
| Specification | Details |
|---|---|
| Product Model | EBC007 |
| Order Code | ZDO6H050MSS0000-00STAK190MSS |
| Product Type | Splitter Box |
| Number of Ports | 6 |
| Connector Type | M12 |
| M12 Coding | A-coded |
| Main Connection | 1 × M23 |
| Electrical Design | PNP |
| Operating Voltage | <30 V DC |
| Max. Current per Port | 4 A |
| Max. Total Current | 12 A |
| Housing Material | PA |
| Mounting | Backplane mounting |
| Protection Rating | IP67 |
| Ambient Temperature | -25 to 80 °C |
| Contacts | Gold-plated |
| Special Feature | Silicone-free |
| Application | Industrial automation |
| UL Enclosure Type | Type 1 |
| Pack Quantity | 1 piece |
