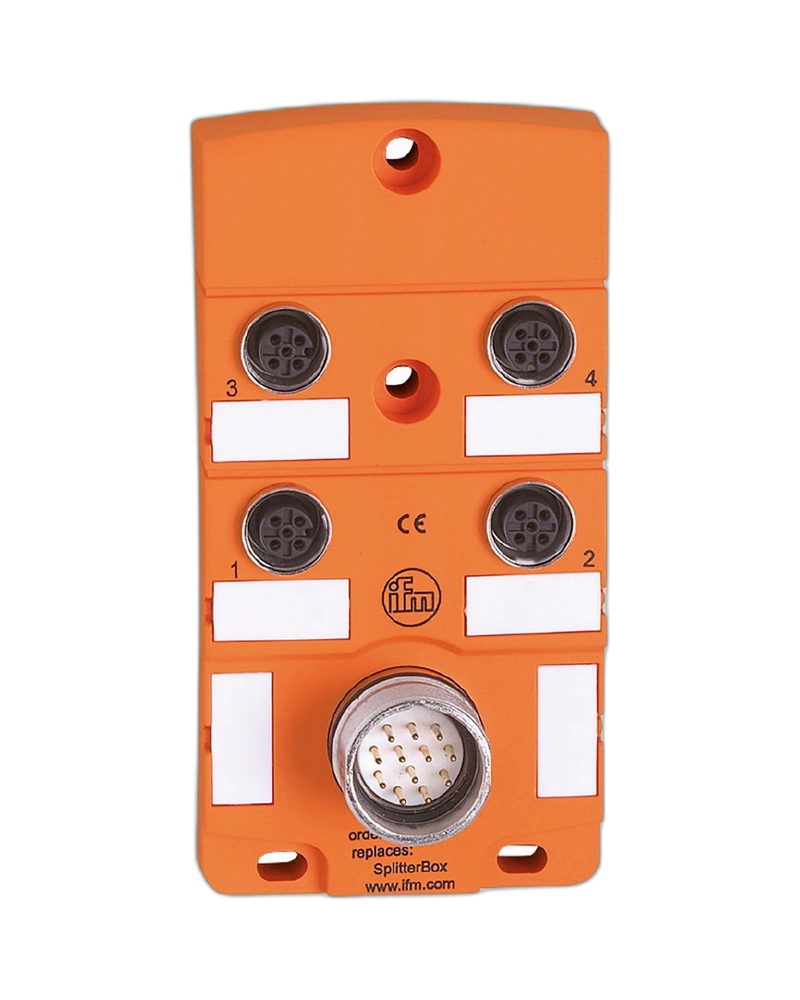

The IFM EBC006 is a 6-port splitter box designed for industrial automation and decentralized machine wiring. It provides six M12 connections with gold-plated contacts and a centralized M23 connection. The PA housing offers robust protection with an IP67 rating for demanding industrial environments. Its silicone-free construction and PNP electrical design make it suitable for machine tools, factory automation and sensor-actuator applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC006 provides six M12 connection ports for connecting multiple sensors and actuators. The A-coded interfaces support standardized field-level connections. The central M23 connector provides the main connection to the automation system. This arrangement helps simplify decentralized wiring.
The EBC006 uses a PNP electrical design and supports a 10–30 V DC operating voltage. Each module or slot can support up to 4 A, while the total current load can reach 12 A. Gold-plated contacts help provide reliable electrical conductivity. The electrical configuration is suitable for compatible industrial automation devices.
The splitter box provides yellow LEDs for switching-status indication along with a green operating-status LED. These visual indicators help technicians identify operating conditions quickly. They can simplify commissioning and troubleshooting. The LED arrangement provides convenient local status monitoring.
The EBC006 provides IP67 protection and operates from -25 to 80 °C. Its PA housing is designed for demanding industrial applications. The unit is silicone-free and suitable for machine tools, coolants and lubricants. Its compact backplane-mounted design supports organized installation in machinery.
6-port splitter box
6 × M12 connections
1 × M23 connection
PNP electrical design
Gold-plated contacts
Silicone-free construction
PA housing
IP67 protection
Yellow switching-status LEDs
Green operation LED
Industrial automation
Machine tools
Factory automation
Sensor-actuator connections
Coolant applications
Lubricant applications
Production machinery
Machine control systems
| Specification | Details |
|---|---|
| Product Model | EBC006 |
| Order Code | ZDO6H057MSS0000-00STAK120MSS |
| Product Type | Splitter Box |
| Number of Ports | 6 |
| Connector Type | M12 |
| M12 Coding | A-coded |
| Main Connection | 1 × M23 |
| Electrical Design | PNP |
| Operating Voltage | 10–30 V DC |
| Max. Current per Port | 4 A |
| Max. Total Current | 12 A |
| Housing Material | PA |
| Mounting | Backplane mounting |
| Dimensions | 125 × 60 × 33 mm |
| Protection Rating | IP67 |
| Ambient Temperature | -25 to 80 °C |
| Weight | Approx. 240.5 g |
| Status Indicators | 6 yellow LEDs |
| Operation Indicator | 1 green LED |
| Contacts | Gold-plated |
| Included Accessories | 2 protective caps, 6 labels |
| Tightening Torque | 0.8–1.5 Nm |
| Pack Quantity | 1 piece |
