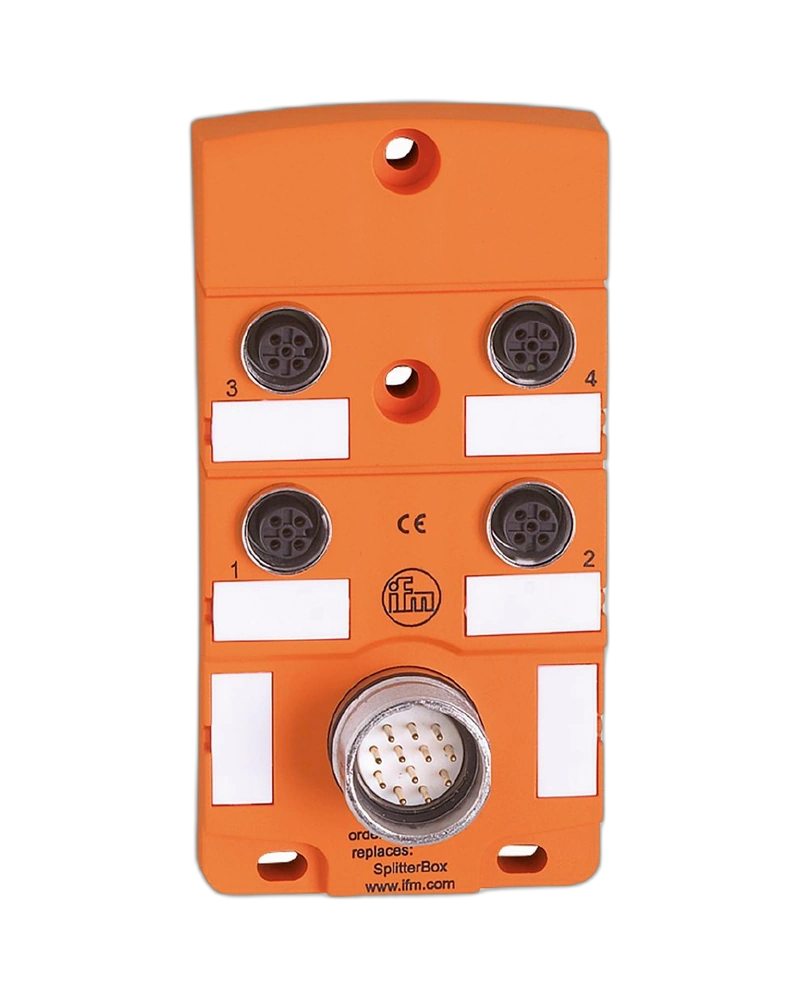

The IFM EBC005 is a 6-port splitter box designed for industrial sensor and actuator connections. It provides six M12 ports and one M23 centralized connection for organized machine wiring. The PA housing offers a robust construction with IP67 protection and silicone-free materials. Gold-plated contacts and high resistance to shock and vibration support reliable operation in demanding automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC005 provides six M12 ports, allowing multiple field devices to be connected through one decentralized wiring unit. The A-coded M12 interfaces provide standardized connections for compatible equipment. A central M23 connector provides the main interface. This helps reduce wiring complexity in industrial machinery.
The splitter box operates at below 30 V DC and supports up to 4 A per module or slot. The maximum total current load is 12 A. Gold-plated contacts provide reliable electrical connection. The electrical arrangement is suitable for industrial sensor and actuator applications.
The EBC005 uses a PA housing designed for harsh industrial environments. It is free from silicone and features gold-plated contacts. The robust construction provides resistance to normal mechanical stresses. This makes the unit suitable for machine tools and factory automation installations.
The EBC005 provides IP67 protection and operates from -25 to 80 °C. It supports backplane mounting and measures approximately 125 × 60 × 33 mm. Two protective caps and six identification labels are supplied. The design is suitable for applications exposed to coolants and lubricants.
6-port splitter box
6 × M12 connections
1 × M23 main connection
Gold-plated contacts
Silicone-free construction
PA housing
IP67 protection
4 A per port capability
12 A total current capability
Backplane mounting
Factory automation
Machine tools
Sensor and actuator wiring
Industrial control systems
Coolant applications
Lubricant applications
Production machinery
Decentralized machine wiring
| Specification | Details |
|---|---|
| Product Model | EBC005 |
| Order Code | ZDO6H050MSS0000-00STAK120MSS |
| Product Type | Splitter Box |
| Number of Ports | 6 |
| Connector Type | M12 |
| M12 Coding | A-coded |
| Main Connection | 1 × M23 |
| Operating Voltage | <30 V DC |
| Max. Current per Port | 4 A |
| Max. Total Current | 12 A |
| Electrical Design | PNP |
| Housing Material | PA |
| Mounting | Backplane mounting |
| Dimensions | 125 × 60 × 33 mm |
| Protection Rating | IP67 |
| Ambient Temperature | -25 to 80 °C |
| Weight | Approx. 241.5 g |
| Contacts | Gold-plated |
| Included Accessories | 2 protective caps, 6 labels |
| Tightening Torque | 0.8–1.5 Nm |
| Pack Quantity | 1 piece |
