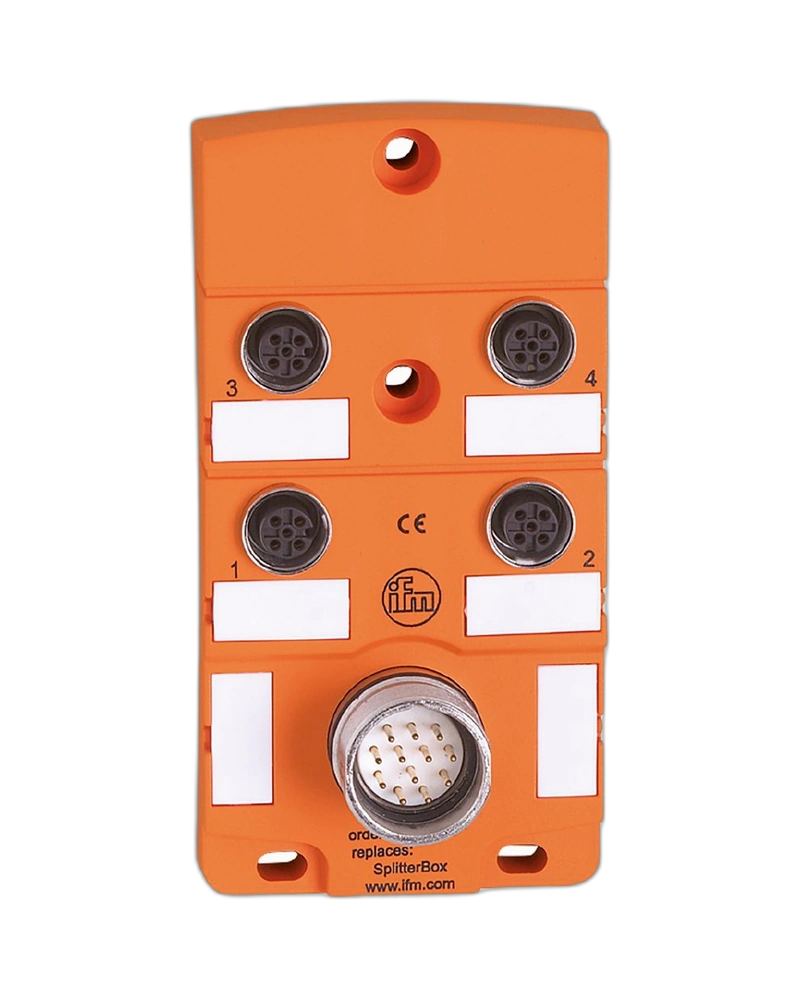

The IFM EBC004 is a 4-port splitter box designed for industrial automation and machine wiring applications. It provides M12 field connections and a centralized M23 interface with gold-plated contacts. The PA housing and IP67 protection support reliable operation in demanding industrial environments. Its silicone-free construction and resistance to coolants and lubricants make it suitable for machine tools and factory automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC004 provides four M12 ports for connecting compatible sensors and actuators. The centralized M23 connection simplifies the connection between the splitter box and the main machine wiring. Gold-plated contacts provide durable electrical interfaces. This configuration helps organize decentralized field wiring.
The EBC004 uses a PNP electrical design for compatible industrial automation systems. It operates with a 10–30 V DC supply and supports up to 4 A per module or connection point. The total current load is specified up to 10 A. These characteristics make it suitable for common low-voltage sensor and actuator installations.
The splitter box uses a robust PA housing and provides IP67 protection. Its construction is suitable for industrial environments where exposure to moisture, dust and mechanical stress can occur. The product is also silicone-free. This makes it suitable for applications with specific material requirements.
The EBC004 is designed for industrial automation applications, including machine tools and environments involving coolants and lubricants. Its reliable sealing arrangement helps protect the internal connection system. The gold-plated contacts support long-term electrical connection reliability. It provides a practical decentralized wiring solution for industrial machinery.
4-port splitter box
M12 field connections
M23 centralized connection
PNP electrical design
Gold-plated contacts
PA housing
Silicone-free construction
IP67 protection
Suitable for coolant and lubricant environments
Industrial machine wiring solution
Machine tools
Factory automation
Industrial machinery
Sensor connections
Actuator connections
Coolant applications
Lubricant applications
Production automation
| Specification | Details |
|---|---|
| Product Model | EBC004 |
| Order Code | ZDO4H059MSS0000-00STAK190MSS |
| Product Type | Splitter Box |
| Number of Ports | 4 |
| Connector Type | M12 |
| Main Connection | 1 × M23 |
| Electrical Design | PNP |
| Operating Voltage | 10–30 V DC |
| Max. Current per Port | 4 A |
| Max. Total Current | 10 A |
| Housing Material | PA |
| Contacts | Gold-plated |
| Mounting | Backplane mounting |
| Protection Rating | IP67 |
| Ambient Temperature | -25 to 80 °C |
| Special Feature | Silicone-free |
| Application | Industrial automation |
| UL Enclosure Type | Type 1 |
| Pack Quantity | 1 piece |
