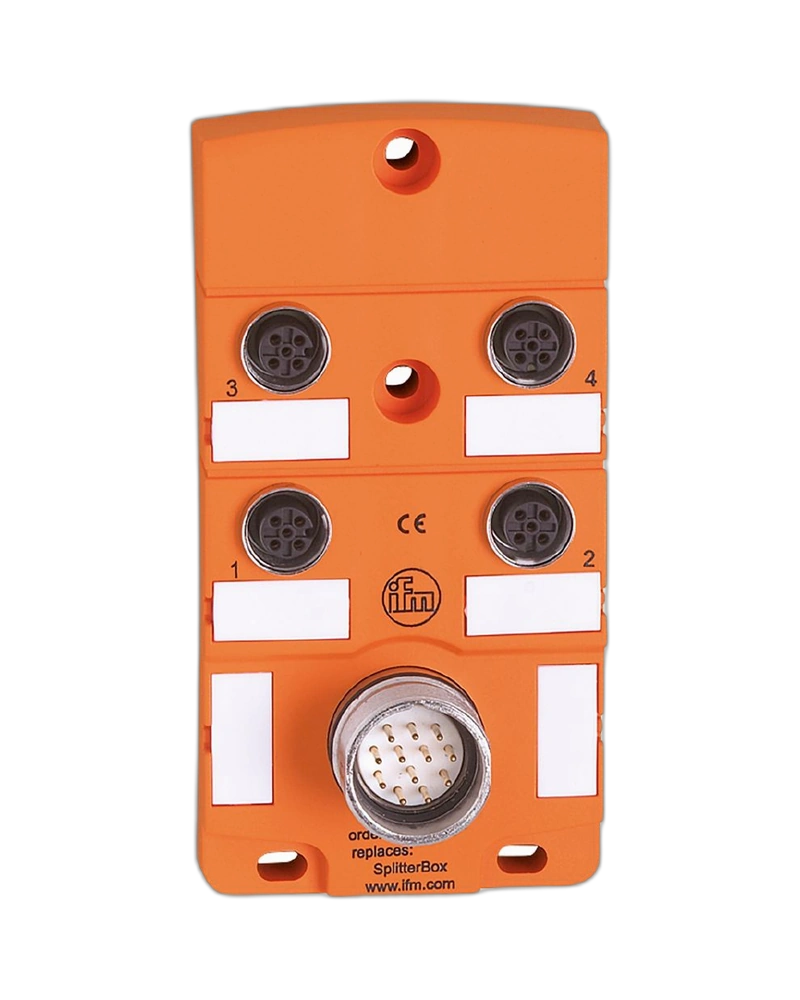

The IFM EBC003 is a 4-port industrial splitter box designed for reliable sensor and actuator connection. It features four M12 ports and a central M23 connection with gold-plated contacts. The robust PA housing provides IP67 protection and is designed for harsh industrial environments. Its silicone-free construction and resistance to oils and coolants make it suitable for machine tools and factory automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC003 provides four M12 connection ports for decentralized connection of compatible field devices. The M12 ports provide a practical interface for sensors and actuators used in industrial machinery. A central M23 connection provides the main electrical interface. This arrangement helps organize machine-level wiring.
The splitter box features a durable PA housing designed for demanding industrial applications. The enclosure provides protection for the internal connection arrangement. Its robust construction supports applications where mechanical shock and vibration may occur. This makes it suitable for production machinery and machine tools.
The EBC003 is designed with reliable sealing for industrial environments. A mechanical stop helps protect the sealing ring from excessive deformation or damage. This supports dependable sealing even during tool-free installation. The design is suitable for applications exposed to coolants and lubricants.
The splitter box uses gold-plated contacts for its connection interfaces. The four M12 ports provide field connections while the M23 connection provides the centralized interface. The unit supports industrial automation wiring requirements. Its IP67 protection supports reliable operation in demanding environments.
4-port splitter box
4 × M12 ports
1 × M23 main connection
Gold-plated contacts
Silicone-free construction
PA housing
IP67 protection
Oil and coolant resistant design
High shock and vibration resistance
Reliable sealing arrangement
Machine tools
Factory automation
Industrial sensor connections
Actuator connections
Coolant environments
Lubricant environments
Production machinery
Industrial control panels
| Specification | Details |
|---|---|
| Product Model | EBC003 |
| Order Code | ZDO4H050MSS0000-00STAK190MSS |
| Product Type | Splitter Box |
| Number of Ports | 4 |
| Connector Type | M12 |
| Main Connection | 1 × M23 |
| M12 Contacts | Gold-plated |
| M23 Contacts | Gold-plated |
| Electrical Design | PNP |
| Operating Voltage | <30 V DC |
| Max. Current per Port | 4 A |
| Max. Total Current | 12 A |
| Housing Material | PA |
| Mounting | Backplane mounting |
| Protection Rating | IP67 |
| Ambient Temperature | -25 to 80 °C |
| Special Feature | Silicone-free |
| Application | Industrial automation |
| Pack Quantity | 1 piece |
