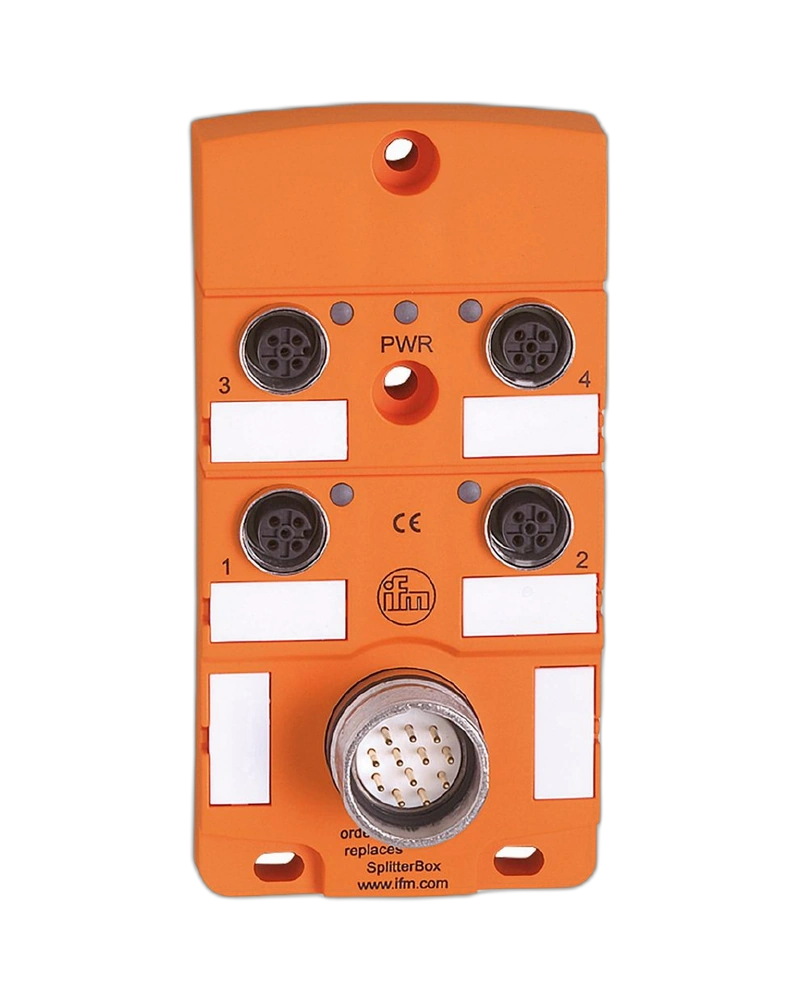

The IFM EBC002 is a 4-port splitter box designed for industrial sensor and actuator connections. It provides four M12 ports with gold-plated contacts and one M23 connection for centralized wiring. The PA housing offers a robust construction with IP67 protection for industrial environments. Its silicone-free design, reliable sealing and clearly visible LEDs make it suitable for factory automation and machine tools.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EBC002 provides four M12 connection points for compatible industrial sensors and actuators. The A-coded connections support reliable field-device integration. Gold-plated contacts provide durable electrical interfaces. This configuration helps reduce complex point-to-point wiring in machine installations.
The splitter box includes four yellow LEDs for switching-status indication and one green LED for operation status. These indicators provide quick visual information during commissioning and maintenance. Operators can identify device status without requiring additional diagnostic equipment. This helps simplify troubleshooting in industrial installations.
The EBC002 uses a PA housing designed for demanding industrial applications. It is free from silicone and features gold-plated contacts. The robust enclosure helps protect the connection system against industrial operating conditions. Its design is suitable for applications involving machine tools, coolants and lubricants.
The EBC002 provides IP67 protection and operates in an ambient temperature range of -25 to 80 °C. The design incorporates a mechanical stop to help prevent damage to the sealing ring. This supports reliable sealing even during tool-free installation. The splitter box is designed for stable operation in harsh industrial environments.
4-port splitter box
4 × M12 connections
1 × M23 connection
Gold-plated contacts
PA housing
Silicone-free design
4 yellow switching-status LEDs
1 green operation LED
IP67 protection
Robust industrial construction
Industrial automation
Machine tools
Sensor and actuator wiring
Factory automation
Coolant applications
Lubricant applications
Production machinery
Industrial control systems
| Specification | Details |
|---|---|
| Product Model | EBC002 |
| Order Code | ZDO4H055MSS0000-00STAK120MSS |
| Product Type | Splitter Box |
| Number of Ports | 4 |
| Connector Type | M12 |
| M12 Coding | A-coded |
| Main Connection | 1 × M23 |
| Contacts | Gold-plated |
| Operating Voltage | 10–30 V DC |
| Max. Current per Port | 4 A |
| Max. Total Current | 10 A |
| Electrical Design | PNP |
| Housing Material | PA |
| Mounting | Backplane mounting |
| Dimensions | 118.2 × 60 × 33 mm |
| Protection Rating | IP67 |
| Ambient Temperature | -25 to 80 °C |
| Weight | Approx. 224.5 g |
| Status Indicators | 4 yellow LEDs |
| Operation Indicator | 1 green LED |
| Included Accessories | 2 protective caps, 4 labels |
| Tightening Torque | 0.8–1.5 Nm |
| Pack Quantity | 1 piece |
