The IFM EBC001 is a compact 4-port splitter box designed for industrial automation and factory applications. It features four M12 connection ports with gold-plated contacts and a central M23 connection. The PA housing provides a robust and lightweight construction, while IP67 protection supports use in demanding industrial environments. Its silicone-free design and reliable sealing make it suitable for machine tools and applications involving coolants and lubricants.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

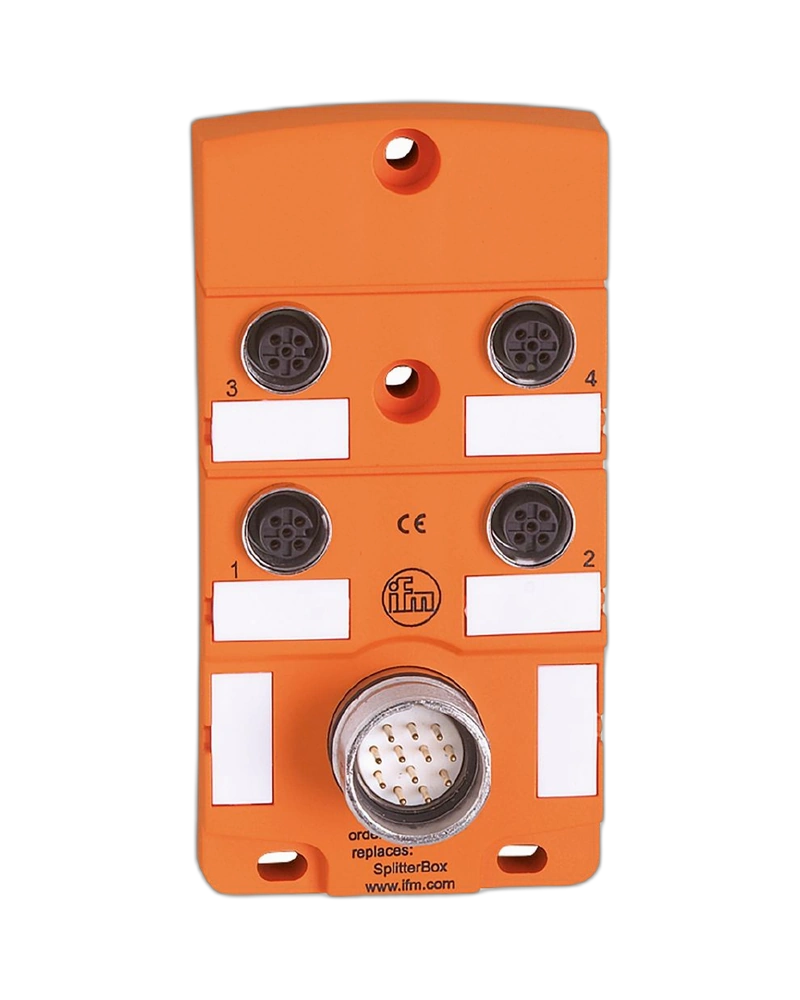

The EBC001 provides four M12 connection ports for connecting compatible sensors and field devices. Each connection uses A-coded M12 contacts with gold-plated contacts. The centralized M23 connection provides the main interface to the connected automation system. This arrangement helps simplify machine-level wiring.
The splitter box uses a PA housing designed for demanding industrial environments. Its robust construction provides mechanical protection for the internal connection arrangement. The unit is also free from silicone, making it suitable for applications where silicone-free components are required. The construction supports reliable long-term installation.
The EBC001 supports an operating voltage below 30 V AC/DC and a maximum current load of 4 A per module or slot. The total current load can reach up to 12 A. Gold-plated contacts support reliable electrical conductivity and connection durability. The PNP electrical design is suitable for compatible industrial automation systems.
The splitter box provides IP67 protection and operates from -25 to 80 °C. It uses backplane mounting and has dimensions of approximately 118.2 × 60 × 33 mm. Protective caps and labels are included with the unit. The design is suitable for machine tools, factory automation and applications involving coolants and lubricants.
4-port splitter box
4 × M12 connections
1 × M23 main connection
A-coded M12 connectors
Gold-plated contacts
PA housing
Silicone-free construction
IP67 protection
PNP electrical design
Backplane mounting
Factory automation
Machine tools
Sensor connection systems
Industrial control systems
Coolant and lubricant applications
Machine wiring
Production equipment
Field-level automation
| Specification | Details |
|---|---|
| Product Model | EBC001 |
| Order Code | ZDO4H050MSS0000-00STAK120MSS |
| Product Type | Splitter Box |
| Number of Ports | 4 |
| Connector Type | M12 |
| M12 Coding | A-coded |
| Main Connection | 1 × M23 |
| M23 Contacts | 12, gold-plated |
| M12 Contacts | 4, gold-plated |
| Operating Voltage | <30 V AC/DC |
| Max. Current per Port | 4 A |
| Max. Total Current | 12 A |
| Electrical Design | PNP |
| Housing Material | PA |
| Mounting | Backplane mounting |
| Dimensions | 118.2 × 60 × 33 mm |
| Protection Rating | IP67 |
| Ambient Temperature | -25 to 80 °C |
| Weight | Approx. 236.5 g |
| Included Accessories | 2 protective caps, 4 labels |
| Tightening Torque | 0.8–1.5 Nm |
| Pack Quantity | 1 piece |
