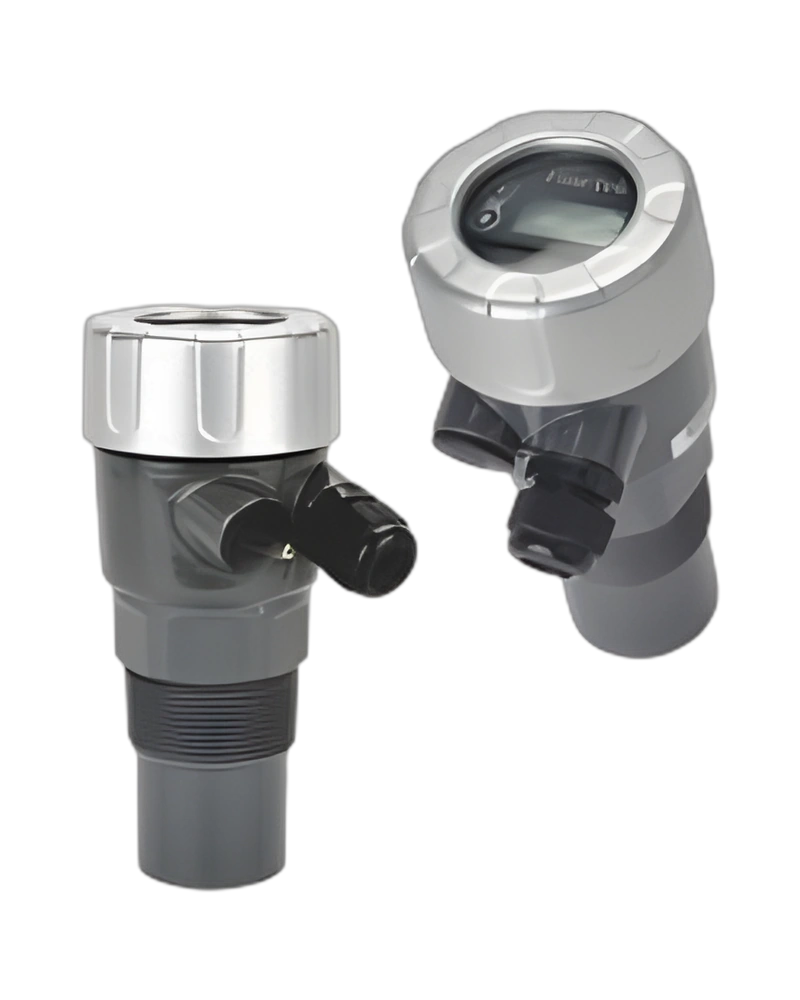

EAX Ultrasonic Level Transmitter is a FINETEK EAX Ultrasonic Level Transmitter configuration identified in the catalog by its family configuration. The source documentation describes the operating method, product configuration options and technical limits for the family. This page content is therefore centered on the actual EAX Ultrasonic Level Transmitter identity rather than a generic description of the FINETEK range.
Non-contact ultrasonic level measurement based on transit time between transmitted and reflected sound waves. The listed design is intended to provide a usable process signal for integration into plant instrumentation, control, monitoring or protection systems, depending on the selected configuration.
The supplied FineTek source material reports the following technical values for this family. Where the manufacturer shows more than one value because the range depends on model, construction, output or installation option, the complete range is retained rather than assigning one value to every variant.
The EAX Ultrasonic Level Transmitter family is built around the operating principle above and the configuration options documented by FINETEK. The main characteristics relevant to selection are summarized below.
FINETEK identifies this family for applications such as those listed below. These are application areas supported by the manufacturer's published product information and are not intended as a substitute for application-specific engineering review.
The product name, model identifier and order-code string should be checked together when selecting a specific item. Family-level values can be shared across configurations only where the source indicates that they are common; model-dependent values should be read from the corresponding configuration before purchase or installation. For this Excel row, the catalog identity is EAX Ultrasonic Level Transmitter.
This content is written from the manufacturer information associated with the cited FINETEK family source and does not add unsupported operating values or unrelated product specifications.
The EAX Ultrasonic Level Transmitter configuration is identified by its complete product name, model and order code. The source-aligned values below are included to make selection, specification review and system integration easier.
| Specification | Details |
|---|---|
| Product name | EAX Ultrasonic Level Transmitter |
| Model / variant | As identified in product name |
| Order code / configuration | Not separately stated in product name |
| Measuring range | 0–12 m |
| Resolution | 1 mm |
| Accuracy | ±0.25% FS |
| Blind distance | 250 mm |
| Output | 4–20 mA, 2-wire loop |
| Supply voltage | 24–30 VDC in the original EAX specification; newer guide also lists 7–30 VDC |
| Operating temperature | -40 to 60 °C; newer guide lists -40 to 70 °C |
| Communication | HART |
| Display | 4-line / 4-bit LCD depending document revision |
| Protection | IP65 enclosure / IP67 noted in product literature |
| Mounting | 2 in NPT threaded/flanged connection |
| Weight | Approximately 1 kg |
