The IFM E80021 is a shielded connecting cable with an 8-pole M12 socket designed for industrial sensors and factory automation systems. It features a straight A-coded M12 connector and a 2 m black PUR cable for reliable signal transmission. The cable supports AC/DC operation, IP67 protection and an ambient temperature range of -25 to 90 °C. Its screened construction helps provide improved electromagnetic compatibility in industrial installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

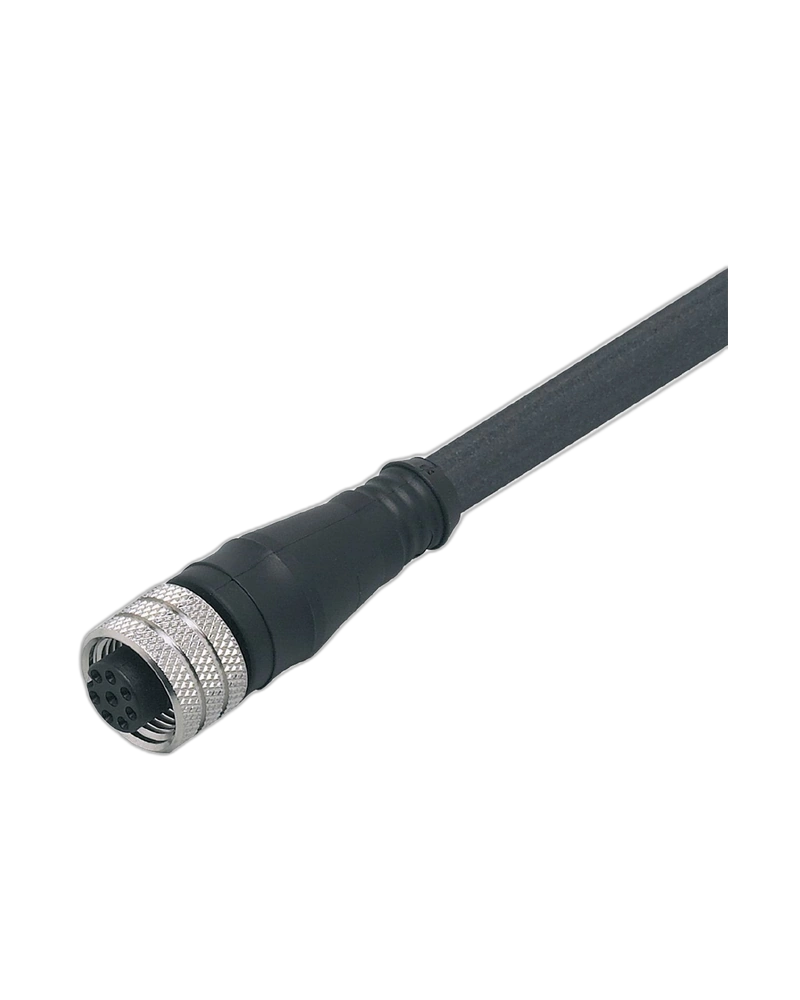

The E80021 features an 8-pole straight M12 female connector designed for compatible sensors. The A-coded connection provides a standardized interface for industrial sensor applications. The connector uses a TPU moulded body and nickel-plated brass locking nut. This provides a secure and durable connection during machine operation.
The product is supplied with a 2 m black PUR cable containing 8 × 0.25 mm² conductors. The cable is shielded, with the screen connected to the socket. This design supports improved electromagnetic compatibility and helps reduce the influence of electrical interference. It is suitable for industrial automation installations requiring reliable sensor signal transmission.
The E80021 supports operating voltages below 30 V AC and 36 V DC with a maximum total current load of 2 A. Its protection class is III for the specified low-voltage application. The cable supports reliable connection between compatible sensors and control equipment. The standardized connection arrangement simplifies field installation.
The cable provides IP67 protection and can operate from -25 to 90 °C. The TPU connector body and nickel-plated brass locking nut provide mechanical durability. The 2 m cable length offers flexibility for sensor-to-control connections. These characteristics make the cable suitable for demanding industrial automation environments.
8-pole M12 female connector
Straight A-coded M12 connection
2 m PUR cable
Black screened cable
8 × 0.25 mm² conductors
TPU moulded connector body
Nickel-plated brass locking nut
IP67 protection
-25 to 90 °C operating temperature
Improved EMC through cable shielding
Industrial sensor connections
Factory automation
Machine automation
Control system wiring
Industrial communication
Sensor-to-controller connections
Production machinery
| Specification | Details |
|---|---|
| Product Model | E80021 |
| Order Code | ADOGH080MSS0002K08 |
| Product Type | Connecting Cable with Socket |
| Connector Type | M12 female |
| Number of Contacts | 8 |
| Coding | A-coded |
| Connector Design | Straight |
| Cable Length | 2 m |
| Cable Material | PUR |
| Cable Colour | Black |
| Cable Construction | Shielded |
| Conductor Size | 8 × 0.25 mm² |
| Electrical Design | AC/DC |
| Operating Voltage | <30 V AC / <36 V DC |
| Maximum Total Current | 2 A |
| Protection Class | III |
| Protection Rating | IP67 |
| Ambient Temperature | -25 to 90 °C |
| Moulded Body Material | TPU |
| Nut Material | Brass, nickel-plated |
| Tightening Torque | 1–1.5 Nm |
| Weight | Approx. 159.8 g |
| Pack Quantity | 1 piece |
