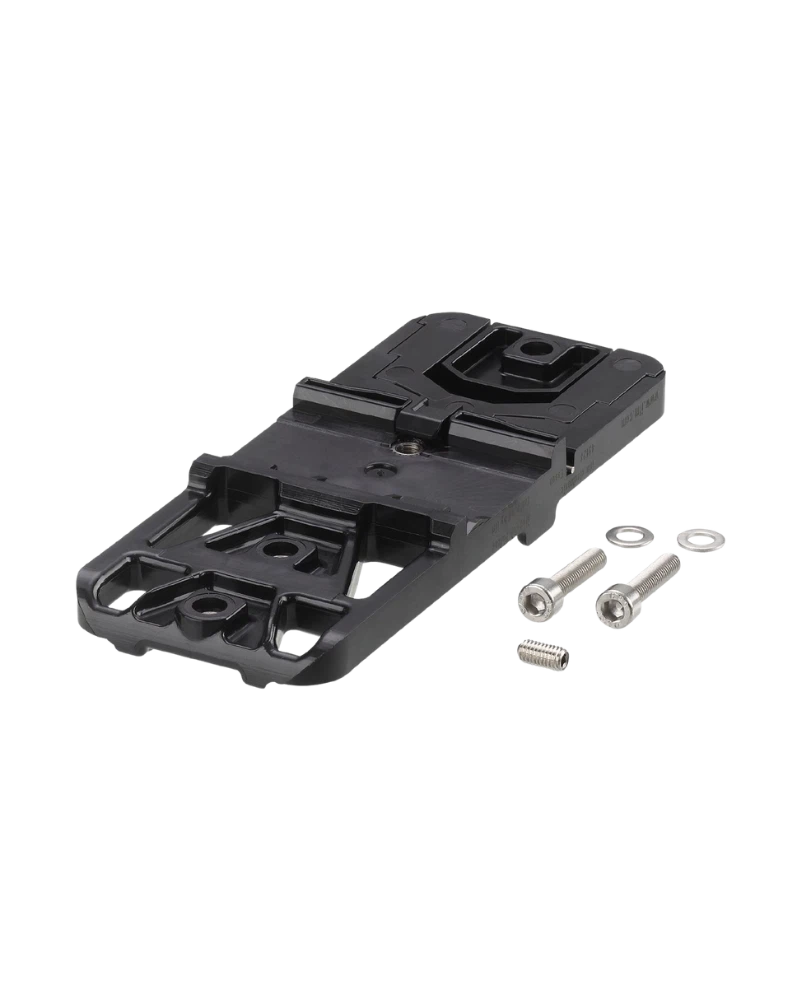

The IFM E78002 is a DIN rail adapter designed for secure mounting of compatible IO-Link masters and automation components. It supports installation on standard TH35 DIN rails according to EN 60715. The adapter features a durable PC/ABS body with a stainless-steel threaded bush for reliable mechanical mounting. Its 4/6-row configuration provides a practical solution for organized control cabinet installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E78002 provides a convenient mounting platform for compatible industrial automation devices. It is designed for mounting on TH35 DIN rails according to EN 60715. The standardized mounting arrangement helps simplify installation inside control cabinets. It also provides a stable mechanical connection for supported IO-Link equipment.
The adapter is designed for applications such as mounting 8-port IO-Link masters and related accessories. It helps position automation components in an organized and accessible arrangement. This makes wiring and maintenance easier within control cabinets. The 4/6-row format provides additional flexibility for larger components.
The adapter body is manufactured from PC/ABS material to provide a combination of strength and lightweight construction. A stainless-steel 316L threaded bush provides durable fastening support. These materials are suitable for industrial control and automation environments. The construction helps maintain stable mounting during normal machine operation.
The E78002 measures approximately 207.9 × 60 × 19 mm and provides a space-efficient mounting solution. Its compact profile helps optimize available control cabinet space. Supplied screws, washers and set screw simplify installation. The adapter can be integrated into structured DIN rail layouts for industrial automation equipment.
DIN rail adapter for 4/6 rows
Suitable for 8-port IO-Link masters
TH35 DIN rail mounting
EN 60715 compatible mounting
PC/ABS adapter construction
Stainless-steel 316L threaded bush
Compact 207.9 × 60 × 19 mm design
Mounting hardware supplied
Stable component installation
Suitable for industrial control cabinets
IO-Link master mounting
Industrial control cabinets
Automation equipment installation
Machine control panels
Industrial communication systems
Factory automation installations
DIN rail based control systems
| Specification | Details |
|---|---|
| Product Model | E78002 |
| Product Type | DIN Rail Adapter |
| Design | DIN Rail Adapter 4/6 Rows |
| Mounting Type | DIN rail mounting |
| DIN Rail Standard | TH35 / EN 60715 |
| Suitable Equipment | 8-port IO-Link masters and accessories |
| Dimensions | 207.9 × 60 × 19 mm |
| Adapter Material | PC/ABS |
| Threaded Bush Material | Stainless steel 1.4404 / 316L |
| Weight | Approx. 103.8 g |
| Mounting Screws | 2 × M5 × 30 mm |
| Washers | 2 |
| Set Screw | 1 × M5 × 10 mm |
| Installation | Control cabinet / machine |
| Pack Quantity | 1 piece |
