The IFM E78000 is a DIN rail adapter designed for mounting IO-Link masters, Ethernet switches and I/O modules onto standard DIN rails. It is designed for TH35 mounting according to EN 60715 and provides a compact 152 × 60 × 19 mm mounting solution. The adapter uses PC/ABS material with a stainless-steel threaded bush for durable installation. It is suitable for mounting inside control cabinets or directly on industrial machines.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E78000 provides a standardized mounting solution for installing compatible automation equipment on DIN rails. It is designed for TH35 rails according to EN 60715. The adapter helps organize IO-Link masters and other automation components in control cabinets. It can also be used for suitable machine-level mounting applications.
The adapter is designed for mounting 4-port IO-Link masters and compatible automation components. It provides a stable mechanical platform for integrating communication and I/O devices into a control system. The 3/4-row design provides flexibility for different equipment configurations. This helps create an organized and accessible installation layout.
The E78000 uses PC/ABS material for the adapter body and stainless steel 316L / 1.4404 for the threaded bush. This combination provides a balance of lightweight construction and mechanical durability. The supplied fastening hardware supports secure installation of compatible modules. The design is suitable for industrial control and automation environments.

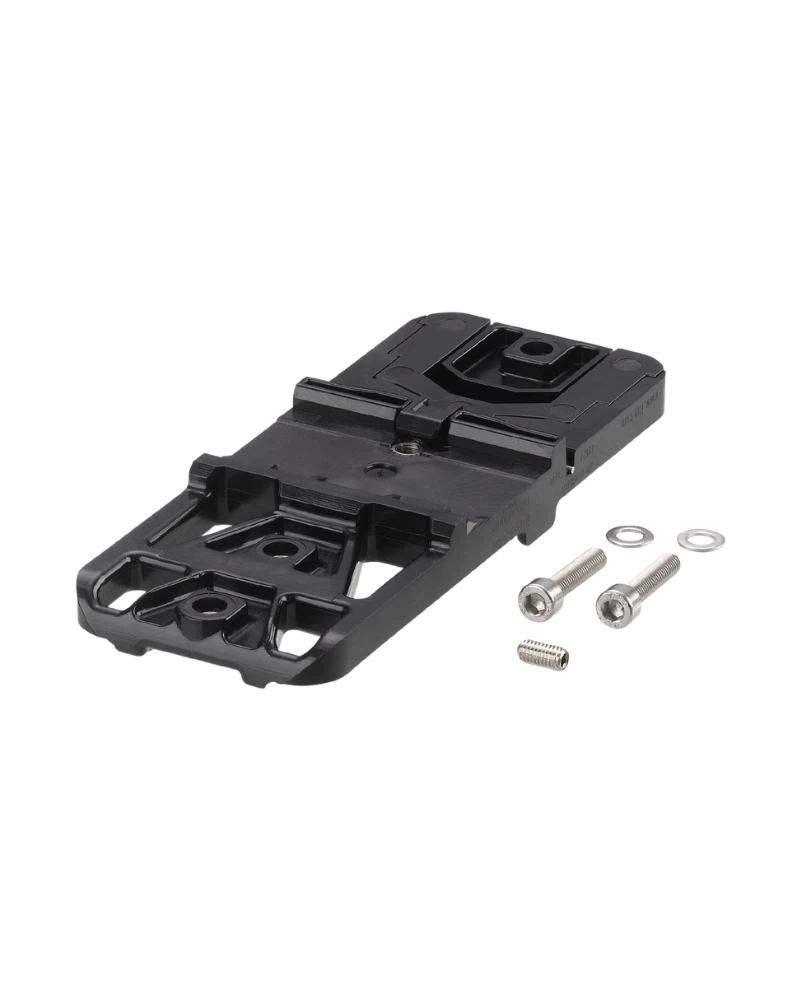

The adapter is supplied with mounting screws, washers and a set screw for installation. Its design supports simple and quick mounting onto a DIN rail. The compact dimensions help optimize available control cabinet space. The adapter can also support vibration-resistant mounting when installed correctly.
DIN rail adapter 3/4 rows
TH35 DIN rail mounting
Suitable for 4-port IO-Link masters
Suitable for Ethernet switches and I/O modules
PC/ABS adapter construction
Stainless-steel threaded bush
Compact 152 × 60 × 19 mm design
Complete mounting hardware included
Suitable for control cabinets
Suitable for direct machine installation
IO-Link master mounting
Industrial control cabinets
Ethernet switch mounting
I/O module installation
Factory automation systems
Machine automation equipment
Industrial communication systems
| Specification | Details |
|---|---|
| Product Model | E78000 |
| Product Type | DIN Rail Adapter |
| Design | DIN Rail Adapter 3/4 Rows |
| Mounting Type | DIN rail mounting |
| DIN Rail Standard | TH35 / EN 60715 |
| Suitable Equipment | 4-Port IO-Link masters, Ethernet switches, I/O modules |
| Dimensions | 152 × 60 × 19 mm |
| Adapter Material | PC/ABS |
| Threaded Bush Material | Stainless steel 1.4404 / 316L |
| Weight | Approx. 87.6 g |
| Mounting Screws | 2 × M5 × 30 mm |
| Washers | 2 |
| Set Screw | 1 × M5 × 10 mm |
| Installation | Control cabinet or machine |
| Pack Quantity | 1 piece |
