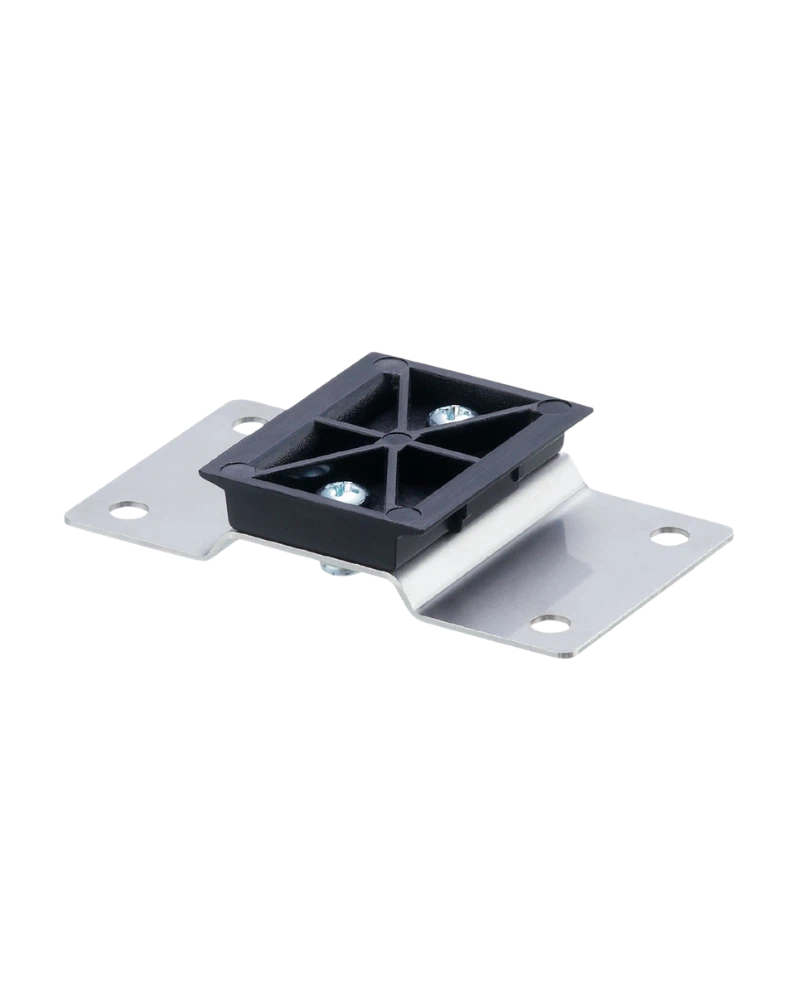

The IFM E75396 is a DIN rail adapter designed for mounting compatible illuminated pushbutton modules in industrial control installations. It provides a practical mounting solution for AC2386, AC2388, AC2396 and AC2398 pushbutton modules. The adapter combines a stainless-steel mounting plate with a PC DIN rail adapter for reliable mechanical installation. Its compact construction allows convenient integration into control cabinets and automation systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E75396 provides a convenient method for installing compatible illuminated pushbutton modules onto a DIN rail. The mounting arrangement helps organize control components within electrical cabinets. It reduces the need for customized mounting hardware and simplifies installation. The adapter is designed for secure positioning of supported pushbutton modules.
The adapter is specifically suited for illuminated pushbutton modules AC2386, AC2388, AC2396 and AC2398. This compatibility makes it useful for industrial operator-interface installations. The mounting plate provides a stable mechanical base for the supported devices. It allows the pushbutton modules to be integrated into standardized DIN rail layouts.
The mounting plate is made from stainless steel 1.4301 / 304 for mechanical strength and durability. The DIN rail adapter uses PC material for lightweight and stable construction. Galvanized lock nuts provide secure fastening and improved resistance to corrosion. These materials support dependable installation in industrial control environments.
The E75396 has a compact form factor that helps save space inside control cabinets. Its lightweight construction adds minimal load to the mounting arrangement. The adapter supports organized installation of illuminated pushbutton modules. This makes it useful for machine control panels and industrial automation systems.
DIN rail mounting solution
Suitable for illuminated pushbutton modules
Compatible with AC2386
Compatible with AC2388
Compatible with AC2396
Compatible with AC2398
Stainless-steel mounting plate
PC DIN rail adapter
Galvanized lock nuts
Lightweight construction
Industrial control cabinets
Machine control panels
Operator interface systems
Factory automation systems
Industrial electrical panels
Pushbutton mounting applications
Control and signalling installations
| Specification | Details |
|---|---|
| Product Model | E75396 |
| Product Type | DIN Rail Adapter |
| Design | Mounting Plate Push Button |
| Suitable Modules | AC2386, AC2388, AC2396, AC2398 |
| Mounting Type | DIN rail mounting |
| Mounting Plate Material | Stainless steel 1.4301 / 304 |
| Adapter Material | PC |
| Lock Nut Material | Galvanized |
| Width | Approx. 45 mm |
| Height | Approx. 80 mm |
| Depth | Approx. 13.5 mm |
| Weight | Approx. 43 g |
| Series | E7 |
| Hazardous Area Certification | No |
| Approval | CE |
| Pack Quantity | 1 piece |
