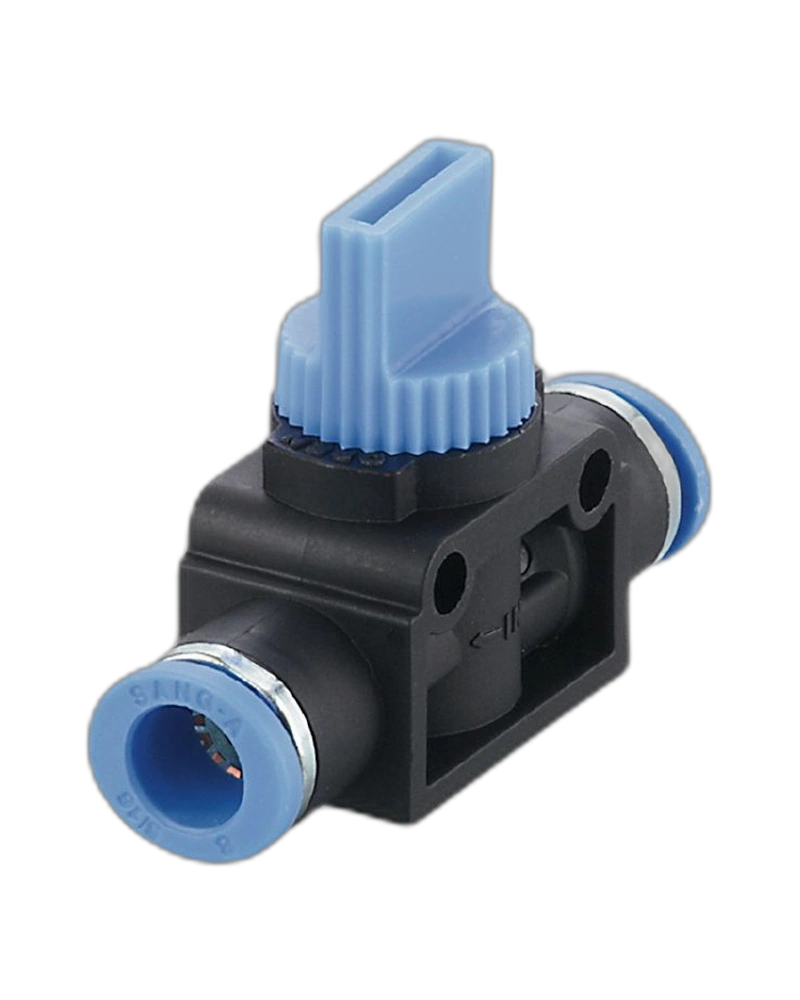

The IFM E75233 3/2-way shut-off valve is a pneumatic accessory designed for reliable compressed-air control in AS-Interface AirBox systems. It allows the compressed-air supply to be shut off while venting the secondary side of the pneumatic circuit. The valve features a compact construction with durable industrial materials. It is suitable for AirBox installations operating in ambient temperatures from 0 to 60 °C.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E75233 provides controlled shut-off of the compressed-air supply in compatible AirBox installations. Its 3/2-way configuration allows the downstream side of the pneumatic circuit to be vented when the supply is interrupted. This makes the valve particularly useful during machine servicing, maintenance and pneumatic system isolation.
The valve is developed specifically for use with compatible IFM AirBox applications. It can be installed at the pneumatic supply connection to provide convenient control over the incoming compressed air. This dedicated design supports reliable integration with distributed pneumatic automation systems.
The E75233 uses carefully selected materials including PBT, polyoxymethylene, stainless steel and NBR. These materials provide mechanical stability and reliable sealing during pneumatic operation. The compact design also allows the valve to be integrated into space-conscious machine installations.
Product Type: 3/2-way pneumatic shut-off valve
Application: AS-Interface AirBox systems
Function: Compressed-air shut-off and downstream venting
Medium: Compressed air according to ISO 8573-1:2001
Housing Material: PBT
Release Ring: Polyoxymethylene
Tooth Lock Washer: Stainless steel
Seal Material: NBR
Compact construction for industrial installations
Reliable pneumatic isolation during maintenance
AS-Interface AirBox installations
Industrial pneumatic automation
Compressed-air isolation
Machine maintenance systems
Factory automation equipment
Pneumatic control assemblies
Distributed pneumatic systems
| Specification | Details |
|---|---|
| Product Code | E75233 |
| Product Type | 3/2-Way Shut-Off Valve |
| Application | AirBox pneumatic systems |
| Medium | Compressed air according to ISO 8573-1:2001 |
| Valve Function | 3/2-way shut-off |
| Ambient Temperature | 0 to 60 °C |
| Housing Material | PBT |
| Release Ring | Polyoxymethylene |
| Tooth Lock Washer | Stainless steel |
| Seal Material | NBR |
| Weight | 23.3 g |
| Pack Quantity | 1 pc. |
