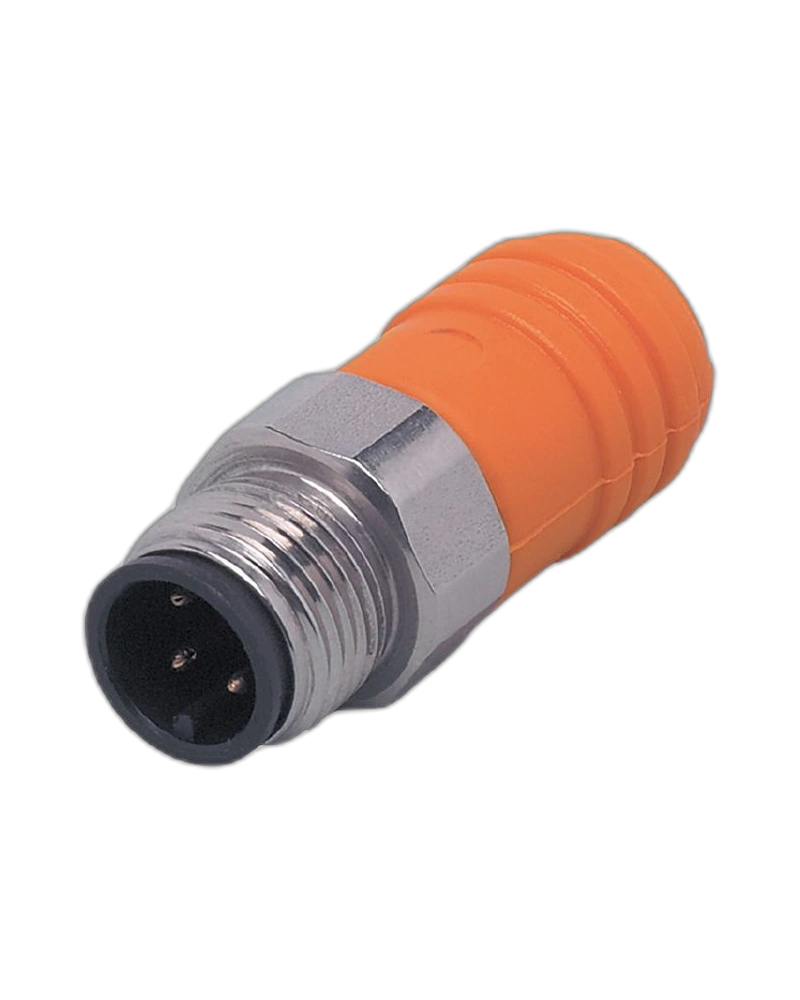

The IFM E75222 connector for AS-Interface analogue modules is designed for compatible analogue modules including AC2516, AC5222, AC5223 and AC2566. It functions as an analogue input simulation plug using a 1.8 kΩ resistor and 0.7 W power rating. The connector provides IP68 and IP69K protection and operates from -25 to 50 °C.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E75222 is designed to simulate an analogue input signal for compatible AS-i analogue modules. This can be useful during testing, commissioning and troubleshooting of analogue input installations.
The connector is designed for AC5222, AC5223, AC2516 and AC2566 analogue modules. This provides a dedicated accessory for checking the input behaviour of compatible AS-i systems.
The connector offers IP68 and IP69K protection, making it suitable for industrial environments where protection against dust, water and high-pressure cleaning conditions is required.
Analogue simulation connector
Compatible with AC2516
Compatible with AC5222
Compatible with AC5223
Compatible with AC2566
Simulates analogue input signal
1.8 kΩ resistance
0.7 W power rating
IP68 protection
IP69K protection
-25 to 50 °C ambient temperature
Compact accessory for AS-i analogue modules
Analogue input testing
AS-i module commissioning
Industrial automation troubleshooting
Analogue signal simulation
Maintenance and diagnostics
AS-Interface analogue systems
| Specification | Details |
|---|---|
| Product Code | E75222 |
| Product Type | Connector for Analogue Modules |
| Compatible Modules | AC2516, AC5222, AC5223, AC2566 |
| Function | Analogue input signal simulation |
| Resistance | 1.8 kΩ |
| Power Rating | 0.7 W |
| Protection | IP68 / IP69K |
| Ambient Temperature | -25 to 50 °C |
| Body Material | PVC |
| Nut Material | Stainless steel 316L / 1.4404 |
| Pack Quantity | 1 pc. |
| Weight | Approx. 13–15 g |
