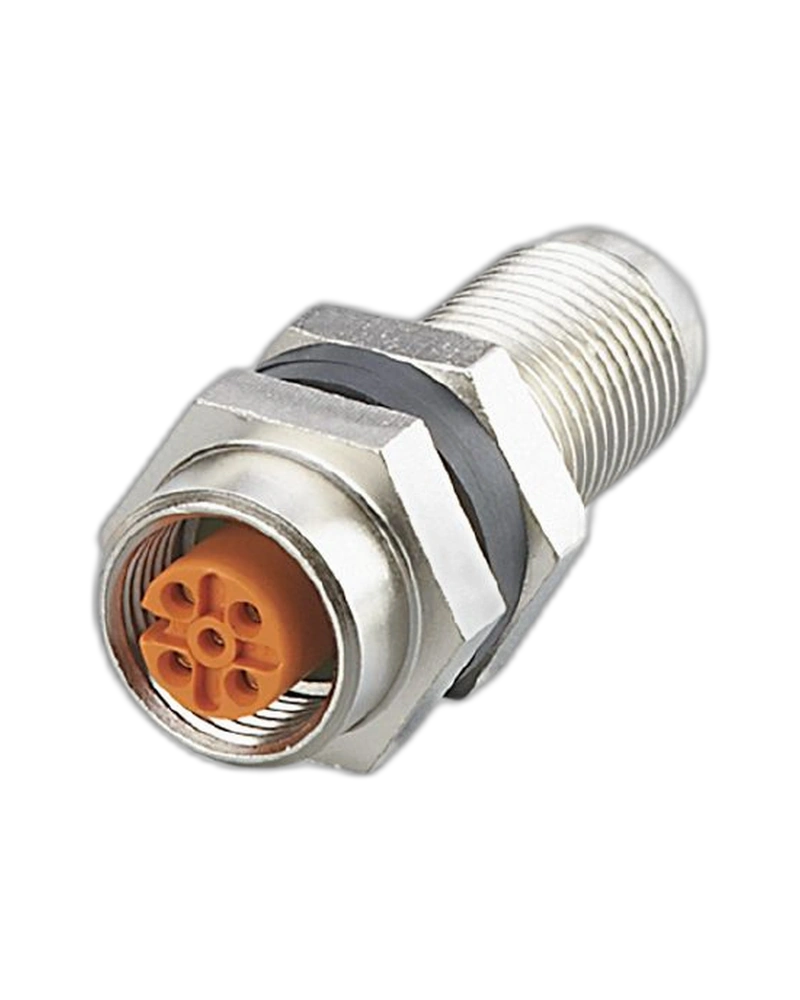

E73009 is a stainless steel wall passage designed for industrial electrical connection applications. It features a straight A-coded M12 connector with five contacts and stainless steel construction. The product provides IP65, IP67 and IP69K protection for demanding industrial environments. Its EPDM sealing and stainless steel housing support reliable long-term operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E73009 is designed to provide a robust electrical passage through industrial panels and enclosures. Its stainless steel construction makes it suitable for applications requiring enhanced mechanical and environmental resistance. The component provides a clean and secure connection arrangement. It is well suited to factory automation environments.
The product incorporates one straight M12 connector with A coding and five contacts. This standardized connection format allows integration with compatible M12 connection technology. The connector provides a practical interface for industrial automation systems. Its compact construction supports easy panel installation.
The housing is manufactured from stainless steel 303 / 1.4305, providing a durable mechanical structure. EPDM is used for sealing to support environmental protection. The stainless steel design is particularly useful in installations where robust construction is required. The component is suitable for demanding industrial applications.
E73009 provides IP65, IP67 and IP69K protection according to the specified operating conditions. It supports ambient temperatures from -40 to 85 °C. This makes it suitable for industrial environments exposed to dust, moisture and cleaning conditions. The product is designed for dependable connection performance.
Stainless steel wall passage
Straight M12 connector
A-coded connection
5 contacts
Stainless steel 303 / 1.4305 housing
EPDM sealing
IP65, IP67 and IP69K protection
Operating voltage below 60 V AC/DC
Provides durable industrial panel connectivity
Offers stainless steel construction
Supports reliable M12 connections
Provides high environmental protection
Suitable for demanding factory environments
Industrial automation
Control panels and enclosures
Machine building
Factory automation
Industrial M12 connection systems
| Specification | Details |
|---|---|
| Product Code | E73009 |
| Product Type | Wall passage |
| Version | Stainless steel |
| Operating Voltage | < 60 V AC/DC |
| Maximum Current Load | 8 A total |
| Current Distribution | Pin 1+3: 4 A; Pin 2+4: 4 A |
| Ambient Temperature | -40 to 85 °C |
| Protection Rating | IP65, IP67, IP69K |
| Connector | 1 × M12, straight |
| Coding | A-coded |
| Contacts | 5 |
| Housing Material | Stainless steel 303 / 1.4305 |
| Sealing Material | EPDM |
| Weight | 29.5 g |
| Pack Quantity | 1 piece |
| Application | Industrial applications / factory automation |
