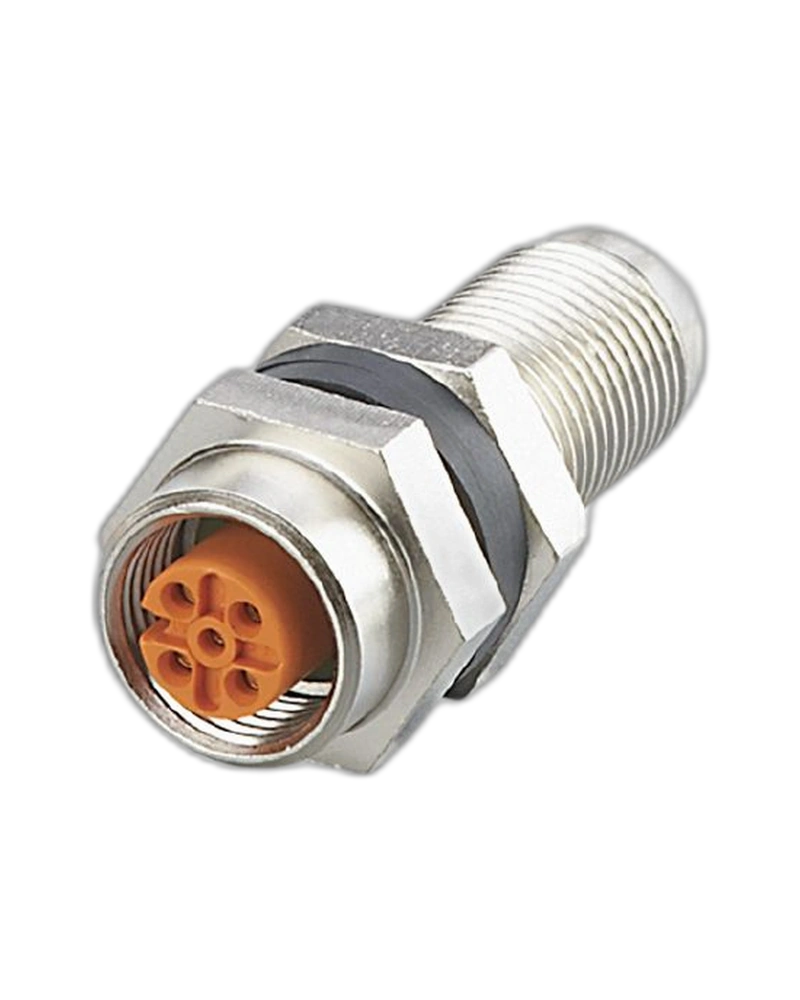

E73008 is a standard wall passage designed for reliable electrical connection through control cabinet or panel walls. It features a straight M12 connector with A coding and a nickel-plated brass construction. The component supports operating voltages below 60 V AC/DC and provides IP65/IP67 protection. It is suitable for industrial connection technology and factory automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E73008 provides a convenient connection interface for routing electrical connections through a panel or enclosure wall. Its M12 connection design supports reliable connection of compatible industrial components. The wall passage helps maintain an organized and professional installation. It is suitable for automation and factory environments.
This model uses one straight M12 connector with A coding and five contacts. The standardized connector arrangement makes it suitable for compatible M12-based connection systems. The nickel-plated brass construction provides a robust mechanical interface. It is designed for dependable industrial connection applications.
The wall passage uses nickel-plated brass for the housing and FKM sealing material. This construction provides good mechanical durability for industrial environments. The sealing arrangement contributes to the specified IP protection levels. The compact design also supports convenient panel integration.
The E73008 provides IP65 and IP67 protection, helping protect the connection against dust and water exposure under specified conditions. It can operate across an ambient temperature range of -40 to 85 °C. This makes it suitable for demanding factory automation installations. The product is designed for reliable operation in industrial environments.
Standard wall passage design
Straight M12 connector
A-coded connector
5 contacts
Nickel-plated brass housing
FKM sealing
IP65 and IP67 protection
Operating voltage below 60 V AC/DC
Provides a reliable panel-wall connection
Supports standard M12 industrial connectivity
Offers durable nickel-plated brass construction
Provides protection against dust and moisture
Suitable for demanding industrial environments
Control cabinet connections
Factory automation
Industrial panel connections
M12 connection systems
Machine automation installations
| Specification | Details |
|---|---|
| Product Code | E73008 |
| Product Type | Wall passage |
| Version | Standard |
| Operating Voltage | < 60 V AC/DC |
| Maximum Current Load | 8 A total |
| Current Distribution | Pin 1+3: 4 A; Pin 2+4: 4 A |
| Ambient Temperature | -40 to 85 °C |
| Protection Rating | IP65, IP67 |
| Connector | 1 × M12, straight |
| Coding | A-coded |
| Contacts | 5 |
| Housing Material | Nickel-plated brass |
| Sealing Material | FKM |
| Weight | 24.1 g |
| Tightening Torque | 1 Nm |
| Pack Quantity | 1 piece |
| Application | Industrial applications / factory automation |
