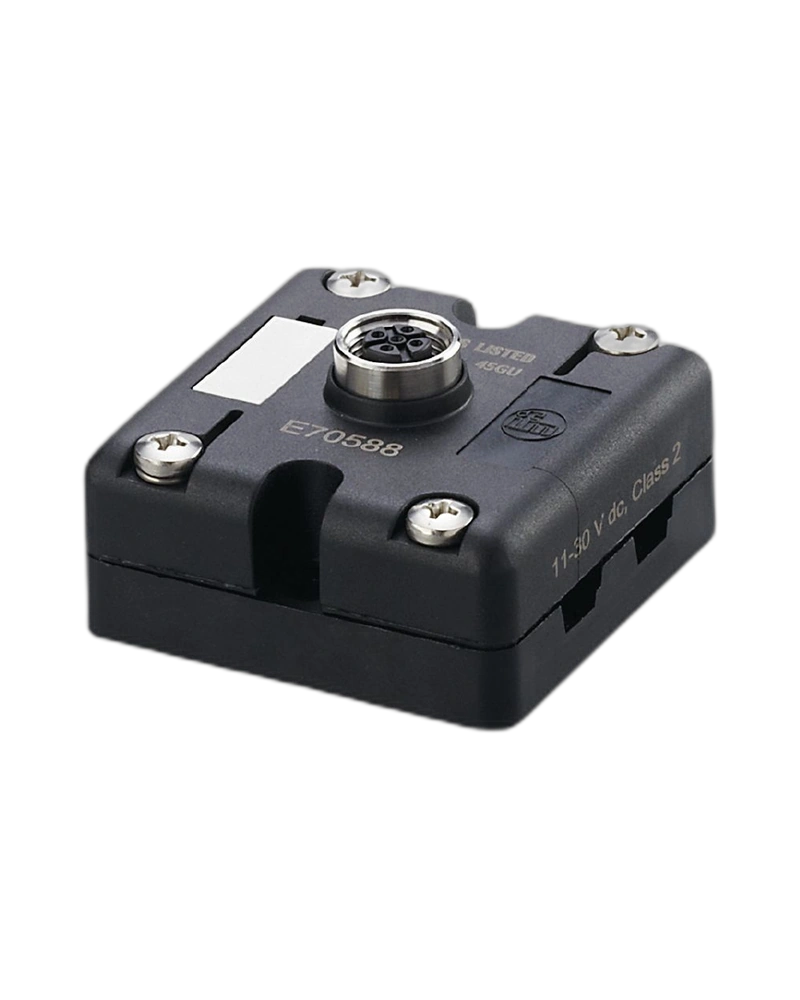

The IFM E70588 is an AS-Interface power distributor designed to distribute AS-i and 24 V auxiliary power through M12 connections. It supports a maximum total current load of 4 A. The compact QUAD M12 design provides a practical connection solution for industrial field devices. It is suitable for decentralised automation and AS-i network installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E70588 combines AS-i and 24 V power distribution within a single compact connection unit. It allows compatible devices to be supplied through organised field-level connections. This can simplify power distribution in decentralised automation systems. The product is suitable for applications requiring both communication and auxiliary power.
The QUAD M12 configuration provides multiple connection possibilities for field-level wiring. M12 connections offer a standardised interface for compatible industrial devices. This helps simplify device integration and cable management. The compact arrangement is useful where installation space is limited.
The product supports an AS-i operating voltage range of 26.5 to 31.6 V DC and an additional 24 V DC supply. The maximum total current load is 4 A. This makes it suitable for distributing power to multiple compatible field devices. Proper system design should follow the electrical requirements of the connected equipment.
E70588 uses a PA 6.6 housing with stainless-steel connection hardware. It has an IP65 protection rating and is designed for industrial installation. The M12 connection uses A coding for the specified electrical arrangement. These features support reliable use in automation and machine environments.
AS-Interface power distributor
QUAD M12 configuration
AS-i and 24 V distribution
Maximum total current load 4 A
M12 A-coded connection
Compact field-level design
IP65 protection
Stainless-steel hardware
Suitable for decentralised automation
Supports organised power distribution
AS-Interface networks
24 V auxiliary power distribution
Industrial automation
Machine automation
Factory automation
Field device connection
Distributed I/O
Control systems
| Specification | Details |
|---|---|
| Product Code | E70588 |
| Product Type | AS-Interface Power Distributor |
| Product Name | QUAD M12 AS-i/24V 4A |
| Electrical Design | AS-i / 24 V |
| AS-i Operating Voltage | 26.5...31.6 V DC |
| Additional Voltage Supply | 24 V DC |
| Maximum Total Current Load | 4 A |
| Connector | M12 |
| Connector Coding | A |
| Protection Rating | IP65 |
| Ambient Temperature | -25...75 °C |
| Housing Material | PA 6.6 |
| Socket Material | Stainless steel 316L |
| Screw Material | Stainless steel 316L |
| O-ring Material | NBR |
| Flat Cable Seal | NBR |
| Weight | Approx. 95.5 g |
| Pack Quantity | 1 piece |
