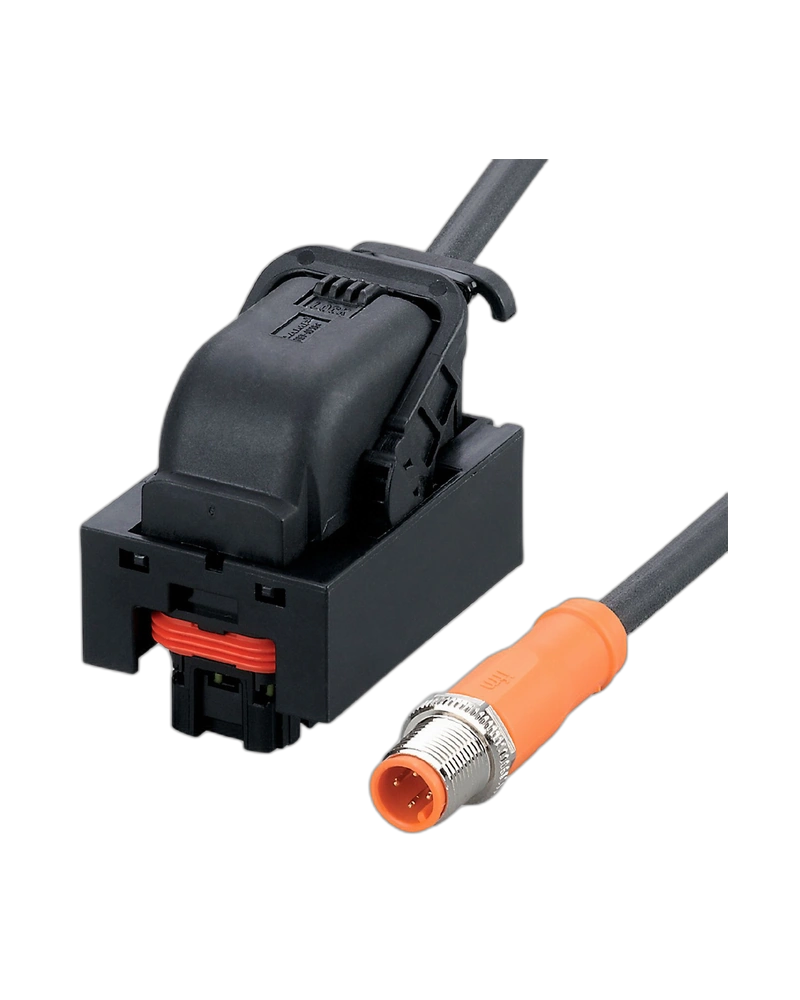

The IFM E70450 is a connection cable designed to provide power supply to EdgeGateway and IIoT automation equipment. It features a 0.6 m PVC cable with an M12 A-coded plug. The cable supports an 8...32 V DC operating voltage and provides IP65 protection. Its compact design is suitable for industrial and factory automation installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E70450 is designed specifically for voltage supply applications involving EdgeGateway equipment. It provides a practical connection between the power source and compatible gateway or IIoT equipment. The cable helps simplify power wiring in industrial automation systems. Its compact length is suitable for installations where the power connection is located close to the device.
The cable is equipped with an M12 A-coded connector with four contacts. The defined contact arrangement supports positive and negative power connections while leaving unused contacts isolated. The connector provides a secure industrial connection for compatible equipment. This helps maintain reliable power delivery during normal operation.
The E70450 supports an operating voltage range of 8...32 V DC. This provides flexibility for various industrial DC power supply arrangements. The cable is designed for industrial applications and factory automation environments. Its electrical configuration is suitable for compatible EdgeGateway power requirements.
The cable uses 0.6 m PVC cable with FLRY-B construction and a PBT-GF20 housing material. The product provides IP65 protection for suitable industrial installations. Its compact construction allows convenient routing around EdgeGateway equipment. The cable is supplied as a single piece for direct installation.
EdgeGateway power cable
M12 connector
A-coded M12 connection
0.6 m cable length
8...32 V DC operating voltage
4 M12 contacts
PVC cable
FLRY-B cable construction
PBT-GF20 material
IP65 protection
Compact installation design
Suitable for industrial automation
EdgeGateway power supply
IIoT systems
Industrial automation
Factory automation
Control equipment
Industrial networking
Gateway installations
Machine monitoring systems
| Specification | Details |
|---|---|
| Product Code | E70450 |
| Product Type | Connection Cable |
| Product Name | Edge-Gateway/Power Cable M12 |
| Application | Voltage supply for EdgeGateway |
| Operating Voltage | 8...32 V DC |
| Connector | 1 × M12 |
| Coding | A-coded |
| Number of Contacts | 4 |
| Contact Assignment | 1 L+, 2 N.C., 3 L-, 4 N.C. |
| Cable Length | 0.6 m |
| Cable Material | PVC |
| Cable Type | FLRY-B |
| Protection Rating | IP65 |
| Housing Material | PBT-GF20 |
| Weight | Approx. 111.5 g |
| Pack Quantity | 1 piece |
| Application Area | Industrial applications / factory automation |
